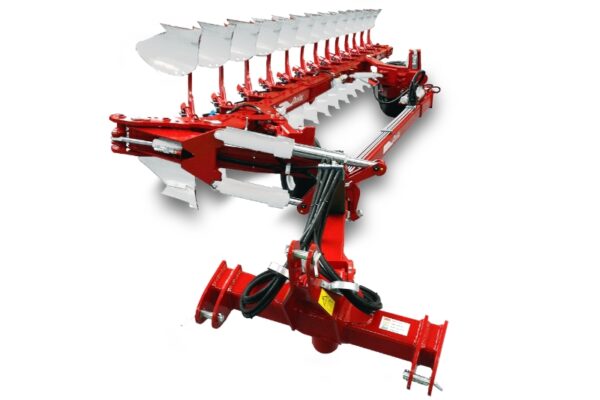

Shallow plough Mini-S

Trailed shallow ploughs for tractors from 300 HP

For a purchase offer, please fill in the enquiry form or contact the following contacts:

Trailed shallow ploughs Mini-S

Mini-S - this attachable Mini-N version, designed for larger farms and more powerful tractors from 300 hp and more.

Based on the design of the traditional on-land type of trailed plough, the Mini-S can be equipped with 12 or 13 hulls, allowing you to reach up to 5 m working width. Working on average 8 km/h, up to 30-35 ha per day productivity.

As in the Plough series, the Mini-S can be equipped with:

cut-off bolt protection
or hydraulic automatic barrier protection.

Advantages of the Ovlac Mini-S plough

For large farms and powerful tractors

Shallow ploughing with full inversion MINI-F

The Mini-S is designed to work with tractors of 300 hp and above. It is the ideal choice for large farms that need a powerful and reliable solution for cultivating large areas.

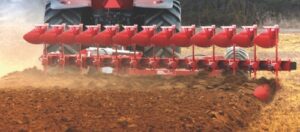

Large working width for maximum productivity

Up to 13 hulls are available for working widths of up to 5 m. Working at ~8 km/h, productivity of up to 30-35 ha per day can be achieved, significantly reducing working time.

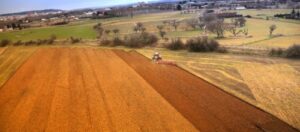

Easier turning at the end of the field

Forward articulation allows the front hulls to be folded, reducing the turning circle. This reduces the load on the tractor suspension and ensures smooth manoeuvring even with a large plough.

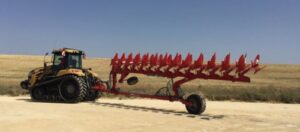

Adapting to different conditions

The Mini-S can be equipped with either a cutoff screw or hydraulic automatic protection. The hydraulic system allows the release force to be adjusted according to soil conditions, ensuring reliable operation and reduced downtime.

High quality and efficient work

Combines the advantages of conventional ploughing and minimum tillage.
Shallow ploughing 8-20 cm depth allows for optimum coverage of large plant residues.
Effectively implemented weed control, when working in large swaths.
Screw (Mini-SF) or hydraulic (Mini-SH) protection.
High ground clearance and reliable frame construction.
Working width - up to 5 m.
Reduced power demand allows you to work with a wider working width.
Extremely high productivity and fewer trips are achieved.
The design of the housings with reversible chisels guarantees minimal wear and tear.

Trailed Mini-S plough designed specifically for large farms and high-power tractors. The productivity can reach around 3 ha/hr., ensuring efficient and seamless operation.

Mini SF/SH The model uses the same proven frame design as the traditional on-land trailed ploughs.

To facilitate turning the plough at the end of the field, Mini SF/SH have forward articulation, which allows the front shells to be folded. This:

reduces the turning circle,
Reduces loads on the tractor's suspension and linkage assembly,
for smoother manoeuvring.

Mini SF/SH can be equipped with either a cut-off bolt or a hydraulic automatic guard, the release force of which is adjustable according to soil conditions.

Optional equipment

Strip-type nutrunners for work in sticky soil conditions. Counterflows for better ploughing of crop residues.

Enlarged forged tine - 12 cm longer than the standard tine.

EcoFlow tines - short and long versions are available. Recommended for sticky soils to improve soil flow.

Body knife

Extension of the support board for better plough stability.

Hydraulic adjustment of the width of the first furrow

Depth adjustment wheel - available in 6.00×9”, 200/60, 250/65, 340/55, 280/70 and 380/55

Transport wheel - available in sizes 200/60 14.5”, 250/65 14.5”, 340/55 16” and 380/55 17”

Front depth adjustment wheel - available in 6.00×9”, 200/60 14.5” and 250/65 14.5”

Hydraulic depth adjustment or combined wheel for transport and depth adjustment.

Lighting kit

Hanging head lock for transport

Wheels

	12 / 12+1	12 / 12+1
	Front wheel	Rear wheel*
250/65 14.5" 12PR	●	–
340/55 16" 14 PR	–	–
380/55 17" 14PR	–	–
500/50 17" 18 PR	–	●

● Standard equipment
✕ Optional equipment
- not

*Available as depth adjustment or combination wheel (except 6.00×9″ 10PR)

	Mini NS 12	Mini NS 12+1
Working width, cm	460	498
Tractor power, HP	250-275	260-300
Distance between housings, cm	66	66
Ground clearance, cm	70	70
SF weight, kg	3840	4680
SH weight, kg	3950	4510

Spanish manufacturer Sheep has more than 75 years of experience in the production of agricultural equipment.

Since its inception, the company has specialized in the production of plows. Over the past 15 years, the product range has expanded significantly, but the core line of tillage and cultivation remains, in which it applies its accumulated knowledge and experience.

Currently Sheep The company is the largest agricultural producer in Spain, exporting its products to more than 20 countries around the world.
