Precise depth control with optimal soil compaction.

The cut discs easily penetrate the soil and mix it intensively.

Tillage up to 13 cm deep with full-area shaving and mixing

Disc harrows Softer NS

Mounted disc harrows for shallow stubble cultivation up to 13 cm.

For a purchase offer, please fill in the enquiry form or contact the following contacts:

SOFTER NS – mounted disc harrows for shallow stubble cultivation

Tillage up to 13 cm depth with full area shaving and mixing.

Disc harrow Softer technological concept

Full-area shaving zone. The double disc section with aggressive geometry ensures perfect full-area cultivation at a depth of 3.5-13 cm with intensive mixing of crop residues. The disc section also distributes the crop residues well over the entire cultivation area.
Crushing and compaction zone. Optimal soil compaction ensures good water infiltration and soil moisture retention.

High quality and efficient work

Large working speed – up to 15 km/h.
The cut discs easily penetrate the soil and mix it intensively.
Disc angle, high pressure force for each disc, ensures uncompromising penetration even in the heaviest or most dry soil and excellent tillage of the soil.
High quality rubber couplings for optimal disc working angle to support.
Precise depth support with optimal soil compaction.

Mounted disc harrow Softer 3.5 N FIX with Micro Drill

discs of 510 mm or 560 mm diameter, arranged in two rows. Working depth 3,5-13 cm.
Rear roller for crushing clods.
The optional Micro Drill is designed for the insertion of crops drilled into the soil surface. This includes, for example, mustard, phacelia, clover and grass.

Mounted disc harrow Softer 4.5 NS

discs of 510 mm or 560 mm diameter, arranged in two rows. Working depth 3,5-13 cm.
Rear roller for crushing clods.

Cut discs

The discs with a diameter of 510 / 560 mm are arranged in two rows. Each disc is effectively protected from collisions with obstacles - a rubber element suspension is used.

The discs are mounted on technically reliable, maintenance-free bearings that ensure a long service life. The optimized disc geometry allows for high work quality, good performance and efficient incorporation of crop residues. Even when the discs are partially worn, they maintain an optimal working angle. The 24 cm distance between the discs ensures good crop residue throughput.

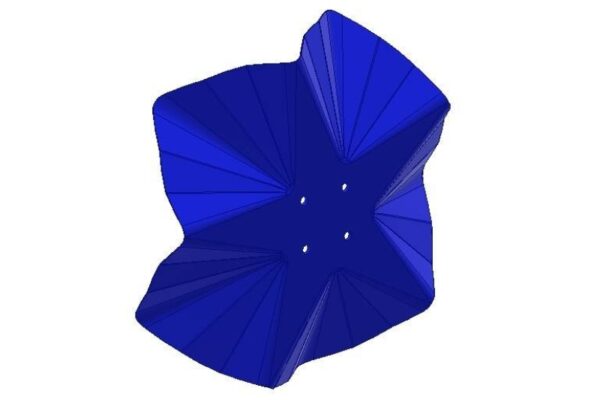

CrissCross wavy discs

510 mm diameter CrissCross wavy discs for Softer disc cultivators, suitable for efficient for treating tall stubble and catch crops. The special disc shape ensures aggressive cutting and intensive soil mixing.

The discs effectively incorporate crop residues into the soil, improving their decomposition and nutrient absorption. The seedbed is optimally prepared, allowing the seed to germinate and the soil surface to be even.

CrissCross discs mounted on the same hubs, which means they require no additional modifications and allow easy upgrading of existing equipment.

Sturdy construction

Used for production extremely high quality materials and applies eXtra STEEL line The technology guarantees long-term use even in the most difficult conditions.

Maintenance-free disc mounting points.
Maintenance-free rubber joints.

High quality materials

Extremely high-quality materials used for the main components guarantee durability. Precisely calculated frame size made of high-strength steel.

Maintenance-free disc mounting points

Allows the trimmer to be operated without additional lubrication.

Maintenance-free rubber joints

For excellent surface adaptation and protection against overloads.

Easy to use

Minimal number of adjustable and lubricated points, so maintenance is extremely easy.

Minimum number of adjustable seats.
Minimum number of places to apply.
There is no need to adjust the angle of the discs.

Smooth connection of passages

The side disc has individual working depth adjustment, which allows for smooth connection of passes.

Diversion of cultivated soil

The side deflector is adjustable vertically and longitudinally, ensuring optimal distribution of the processed soil.

Setting the working depth

Simple adjustment of working depth by means of pins on the roller connecting rods on the Softer 4.5 NS and Softer 6 NS disc harrows. (Can be replaced with hydraulic control - optional equipment).

Setting the working depth

Simple adjustment of working depth with pins on the roller beams in the Softer 3 N model.

A cleverly designed machine

One of the biggest advantages is versatility and adaptability, providing great work versatility.

Prominent in its short, compact design.
Stable because it is short and has a light axle.
Self-cleaning effect, which is determined by the distance between the discs and the mounting of the discs.

Full perimeter disc edges

Easier penetration of the discs into the soil.

Micro Drill for sowing small seeds

The advanced design of the machine allows for the installation of Micro Drill seeding equipment for sowing cover crops or direct incorporation of grass.

SynCult slurry applicator

Complete set of additional equipment for the Softer NS disc harrow for full-surface manure application.

Rollers

Tubular TRS roller

Diameter – 600 mm
Weight – 100 kg/m

Double roller DR

Diameter – 400/300 mm
Weight – 135 kg/m

Ring roller RR

Diameter – 520 mm
Weight – 160 kg/m

Roller LTX

Diameter – 586 mm
Weight – 200 kg/m

Disc roller SDR

Diameter – 580 mm
Weight – 220 kg/m

V-shaped VR roller

Diameter – 600 mm
Weight – 175 kg/m

Features	Tubular TRS roller	Double DR roller	Ring roller RR	LTX Roller	SDR disc roller	V-shaped VR roller
Crushing	●●○○	●●●○	●●●○	●●○○	●●●○	●●●○
Compaction	●●●○	●●●○	●●●●	●●●●	●●●●	●●●●
Depth support	●●●○	●●●●	●●●●	●●●●	●●●●	●●●●
Resistance to clogging	●○○○	●●●○	●●●●	●●●○	●●●○	●●●●
Suitability for rocky soils	●●●○	●●●○	●●●○	●●●○	●●●○	●●●○
Suitability for wet soils	●○○○	●●○○	●●●●	●●●●	●●●●	●●●●
Suitability for heavy soils	●○○○	●●○○	●●●●	●●●●	●●●●	●●●●
Suitability for medium soils	●●●○	●●●●	●●●●	●●●●	●●●●	●●●●
Suitability for light soils	●●●●	●●●●	●●●●	●●●○	●●●○	●●●●

Working tools

Disc DURA+ Ø 510 mm

Disc DURA+ Ø 530 mm

Disc DURA+ Ø 510 mm

Disc DURA+ Ø 560 mm

CrissCross disc Ø 510 mm

Hanging

TPH Category 3

Softer 4.5 NS and Softer 6 NS. Pins for TPH category 4 are available.

TPH Category 2 and 3

Only for Softer 3 N model.

Other optional equipment

Micro Drill small seed drill

Weight set – 340 kg

Softer for 2.5 N–3.5 N models.

Hydraulic roller control

For Softer 4.5 NS and Softer 6 NS models.

	SOFTER 2.5 N	SOFTER 3 N	SOFTER 3.5 N FIX	SOFTER 4 N FIX	SOFTER 4.5 NS	SOFTER 5 NS	SOFTER 6 NS	SOFTER 8 NS
Type	hanging	hanging	hanging	hanging	hanging	hanging	hanging	hanging
Working width, mm	2 550	3 000	3 500	3 990	4 470	4 950	5 910	7 400
Transport width, mm	2 550	3 000	3 500	4 390	3 000	3 000	3000	3 000
Transport height, mm	1 420	1 420	1 420	1 620	2 500	2 750	3 250	4 000
Total length, mm	2 750	2 750	2 750	2 800	2 750	2 750	2 750	2 750
Working depth, mm	35–130	35–130	35–130	35–130	35–130	35–130	35–130	35–130
Number of front discs, pcs.	10	12	14	17	19	21	25	31
Number of rear discs, pcs.	10	12	14	16	18	20	24	30
Disc diameter, mm	510 / 560	510 / 560	510 / 560	510 / 560	510 / 560	510 / 560	510 / 560	510 / 560
Productivity, ha/hour	2.5–3.8	3–4.5	3.5–5.3	4–6	4.5–6.75	5–7.5	6–9	8–12
Tractor power, kW/HP	65–100 90–140	80–120 110–165	90–140 120–190	110–160 150–215	120–180 160–240	130–190 175–255	150–225 200–300	200–300 270–405
Working speed, km/h	10–15	10–15	10–15	10–15	10–15	10–15	10–15	10–15
Maximum possible slope, °	11	11	11	11	11	11	11	11
Hydraulic connections/pressure, bar	-	-	-	-	1(2) / 200	1(2) / 200	1(2) / 200	1(2) / 200
Number/type of hydraulic connection pairs	-	-	-	-	2(4) / ISO 12.5	2(4) / ISO 12.5	2(4) / ISO 12.5	2(4) / ISO 12.5
Hanging	TPH categories 2 and 3	TPH categories 2 and 3	TPH categories 2 and 3	TPH Category 3	TPH Category 3	TPH Category 3	TPH Category 3	TPH Category 3
Weight, min., kg	1 800	1 980	2 300	2 700	3 200	3 450	3 900	4 770
