Universal modular disc seed drills with fertilizer insertion. The working section at the front is easily replaceable, which allows you to apply a different sowing technology.

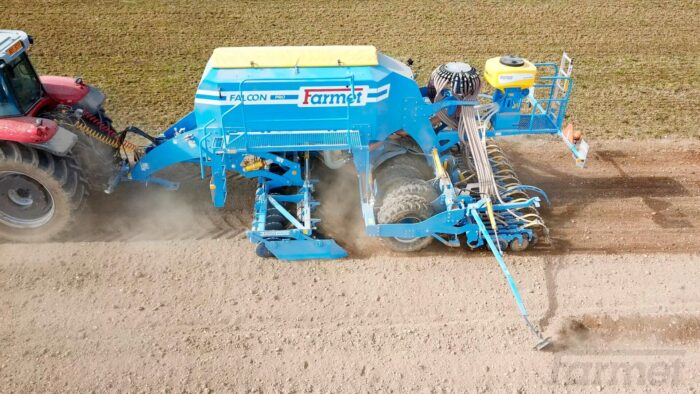

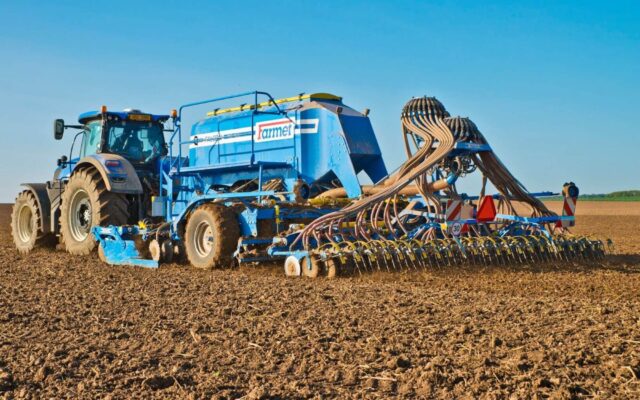

Falcon PRO trailed modular disc seed drills with a working width of 3–8 m
High-end pneumatic seed drills are designed to adapt to your farm's needs. Using traditional seeding technology, when sowing into prepared soil, the seed drill is characterized by high working speed, excellent stability and maneuverability.

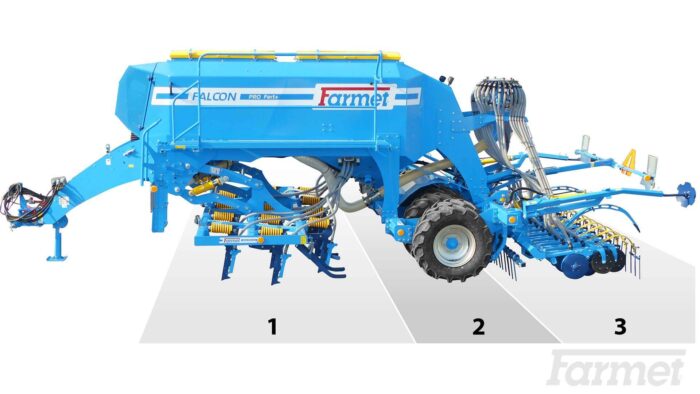

One drill – several different sowing technologies

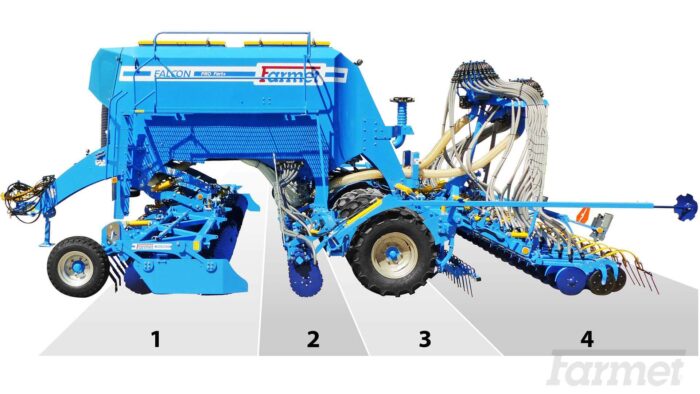

The seed drill concept is based on the front selection of working sections and the possibility of changing them. Many farms in our country that choose these seed drills equip them with several working sections – not only with double disc harrow (for minimum tillage sowing) but also with No-Till (direct sowing) or Strip-till (strip sowing) sections. The sections can be easily changed right in your farm machinery fleet, thus opening up wide possibilities to apply different sowing technologies with one seeder.
Falcon Pro modeliai su dviguba diskinio skutiko dirbimo sekcija, minimalaus dirbimo sėjos technologijai taikyti

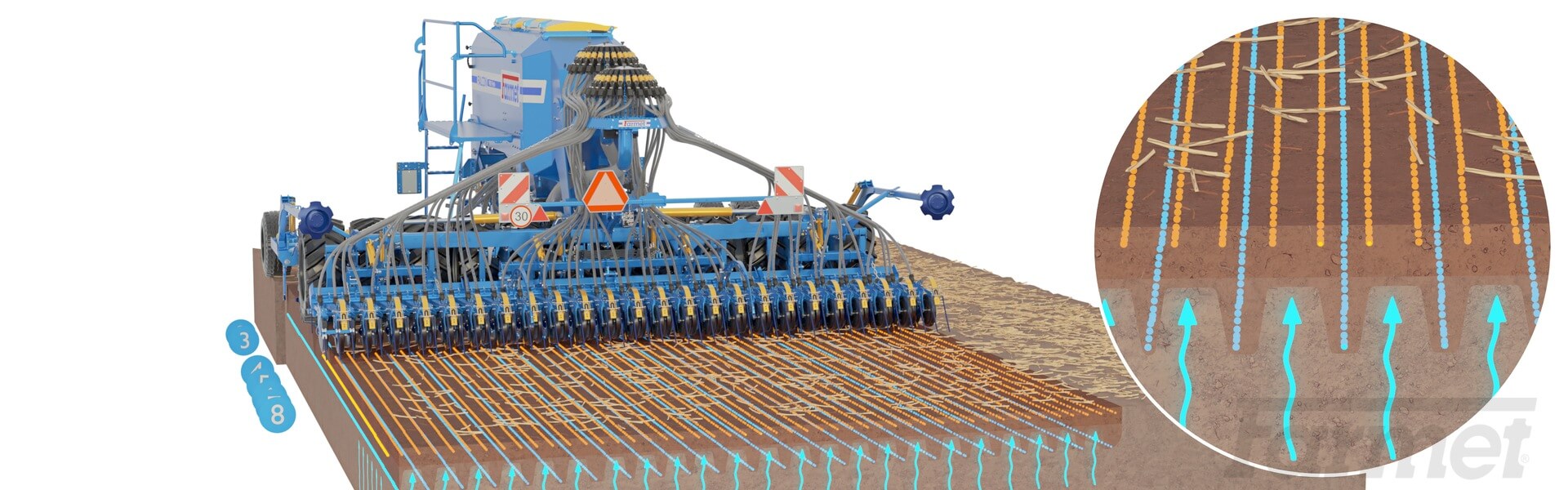

Falcon Pro modeliai su noragine įdirbimo sekcija, juostinės sėjos (Strip-till) technologijai taikyti

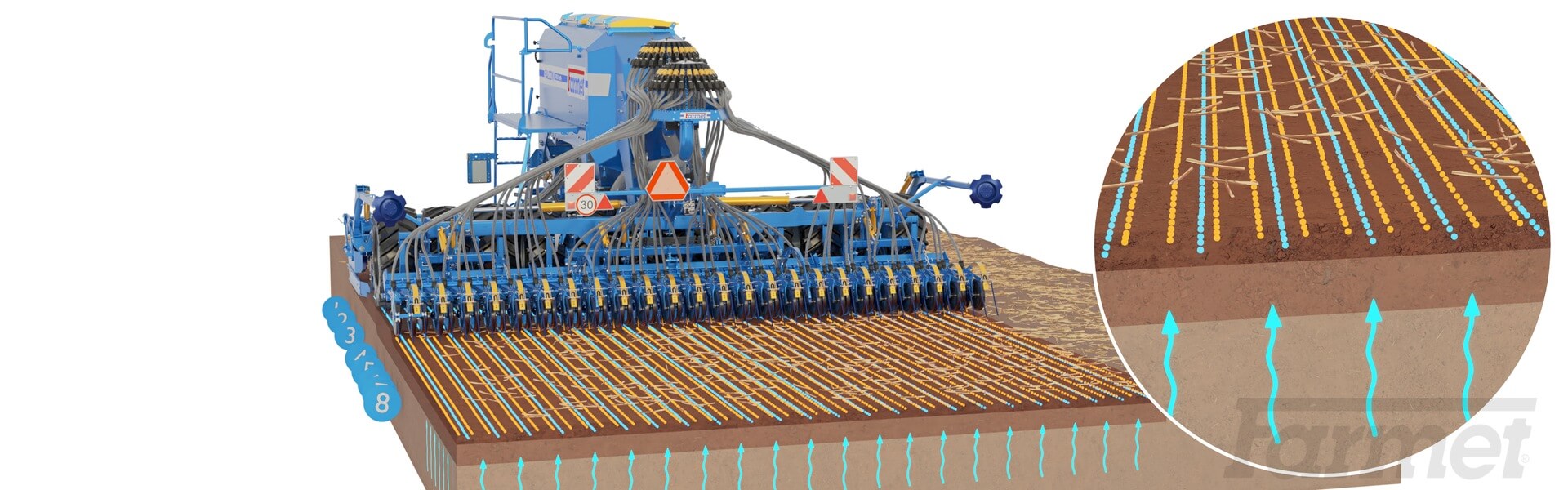

Falcon Pro modeliai su turbo diskų dirbimo sekcija, tiesioginės sėjos (No-till) technologijai taikyt

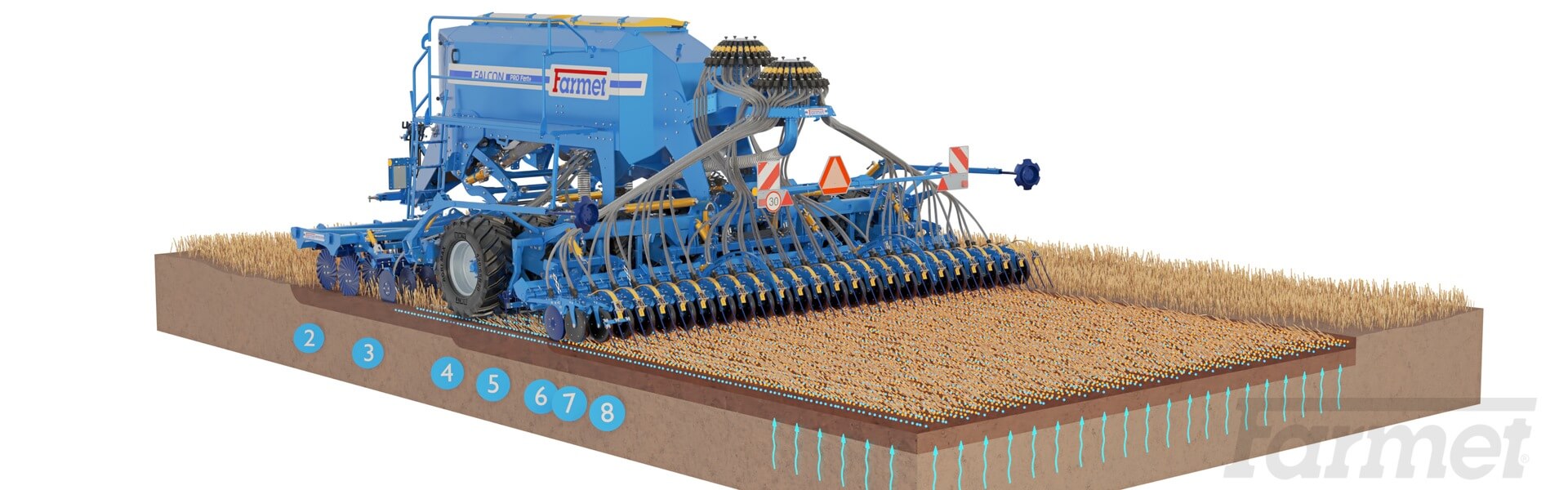

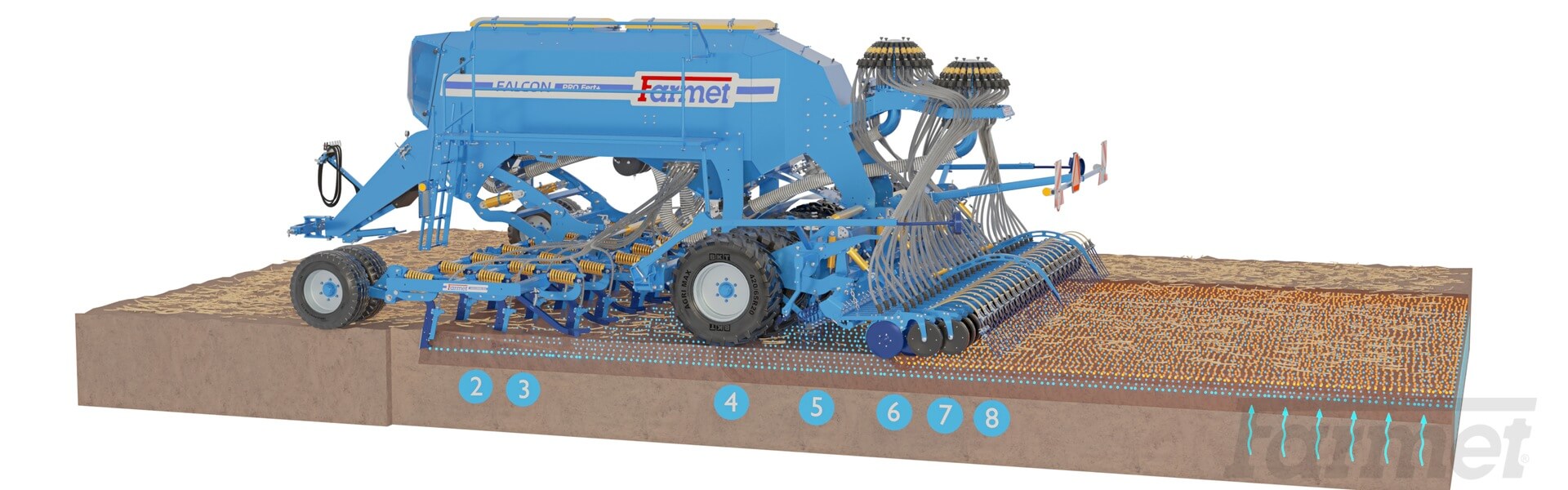

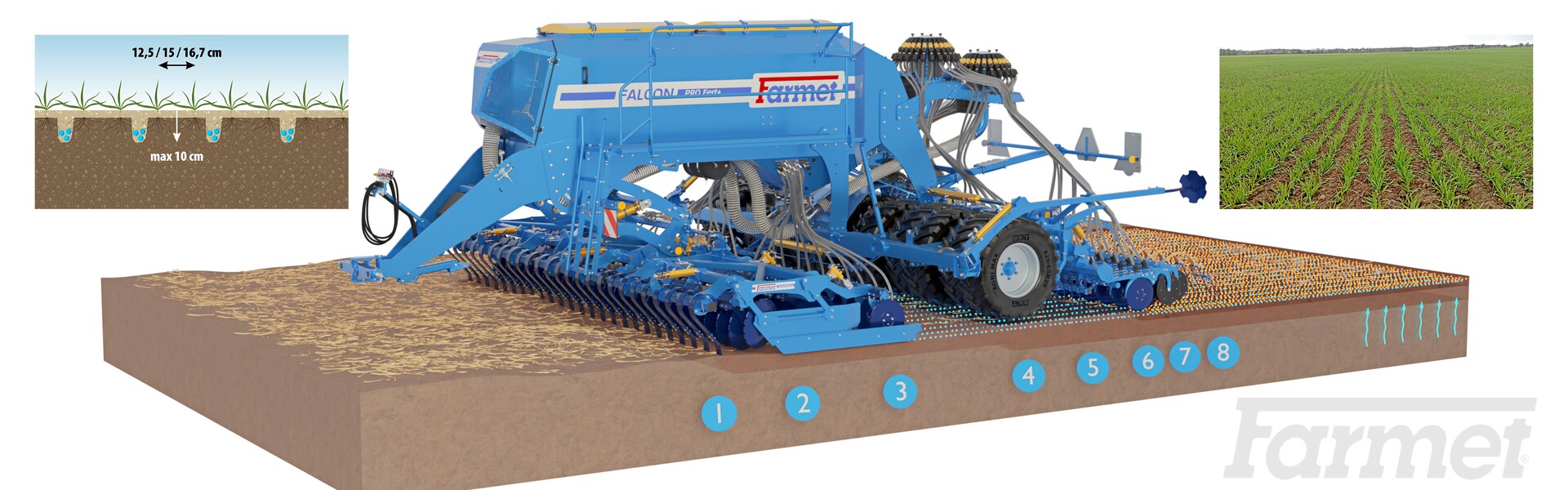

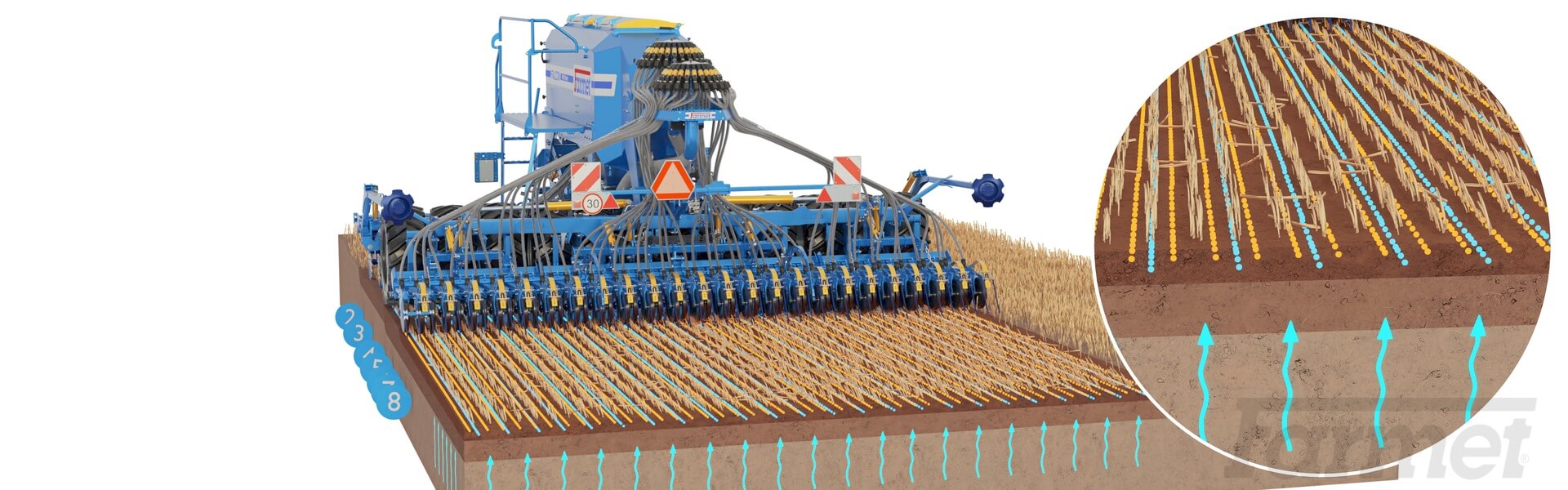

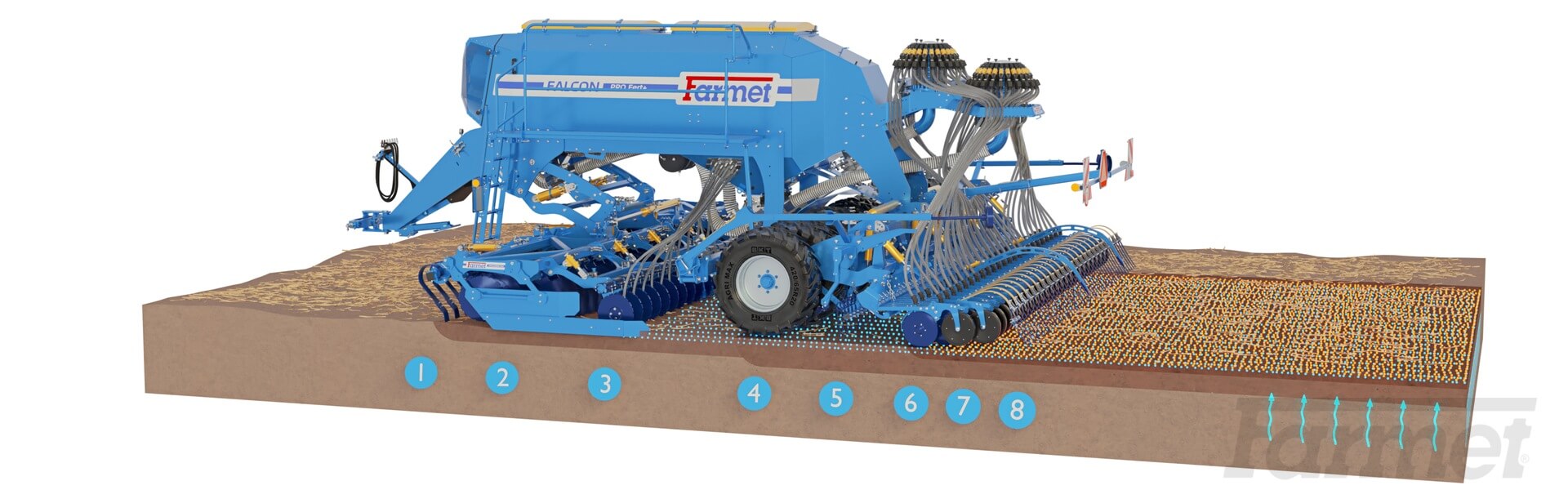

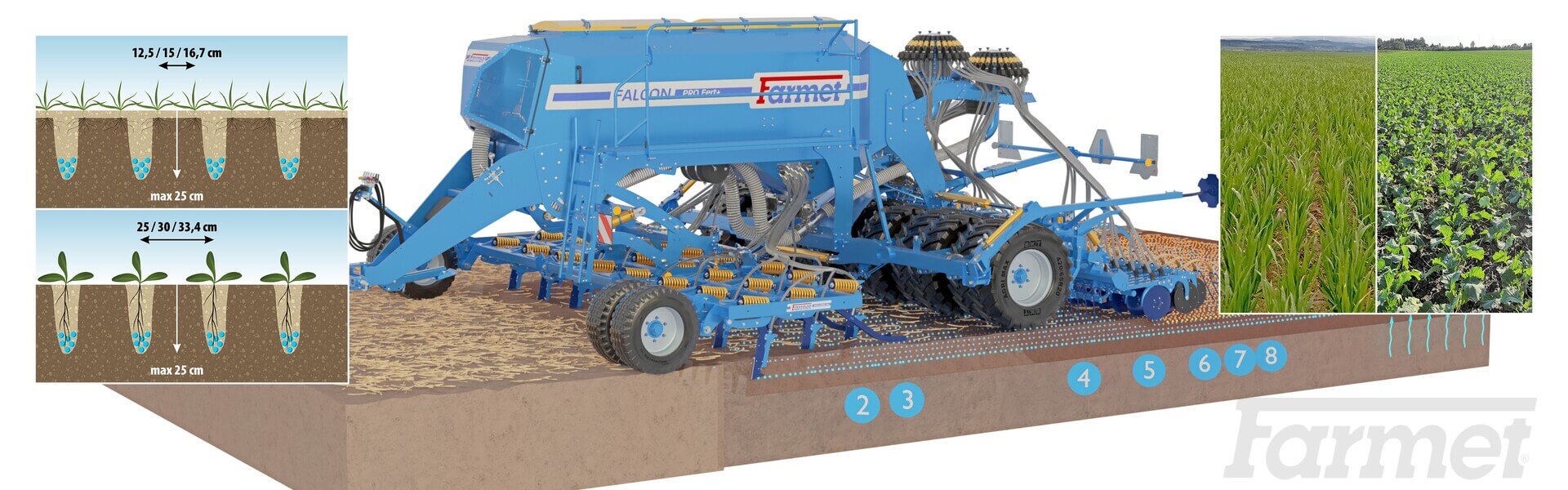

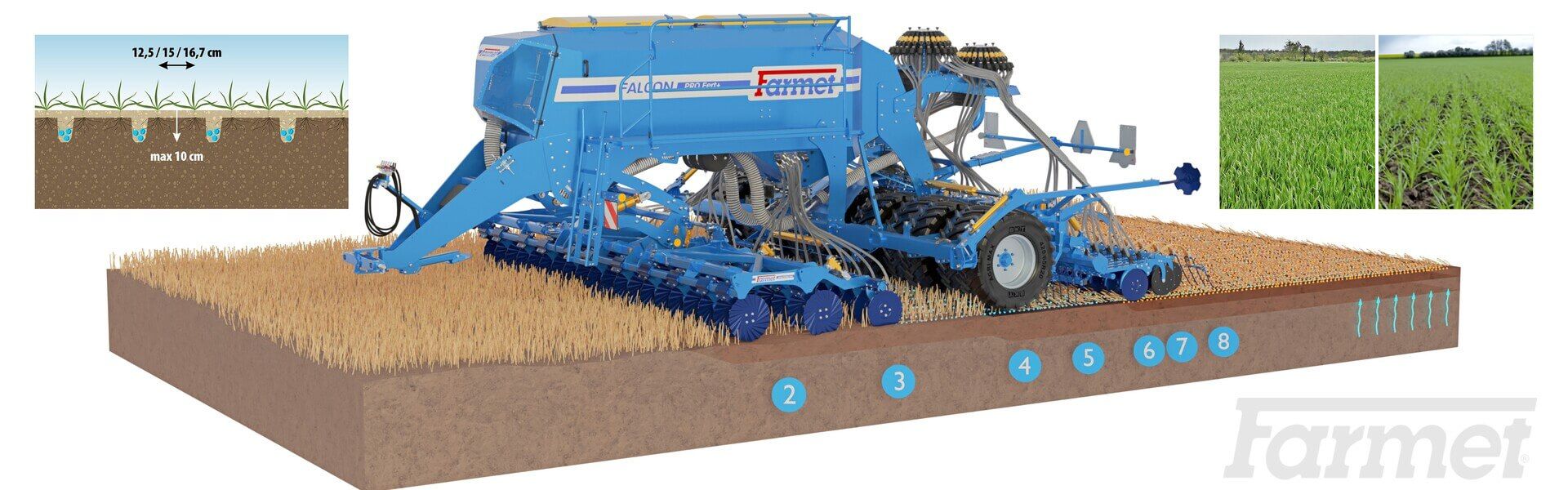

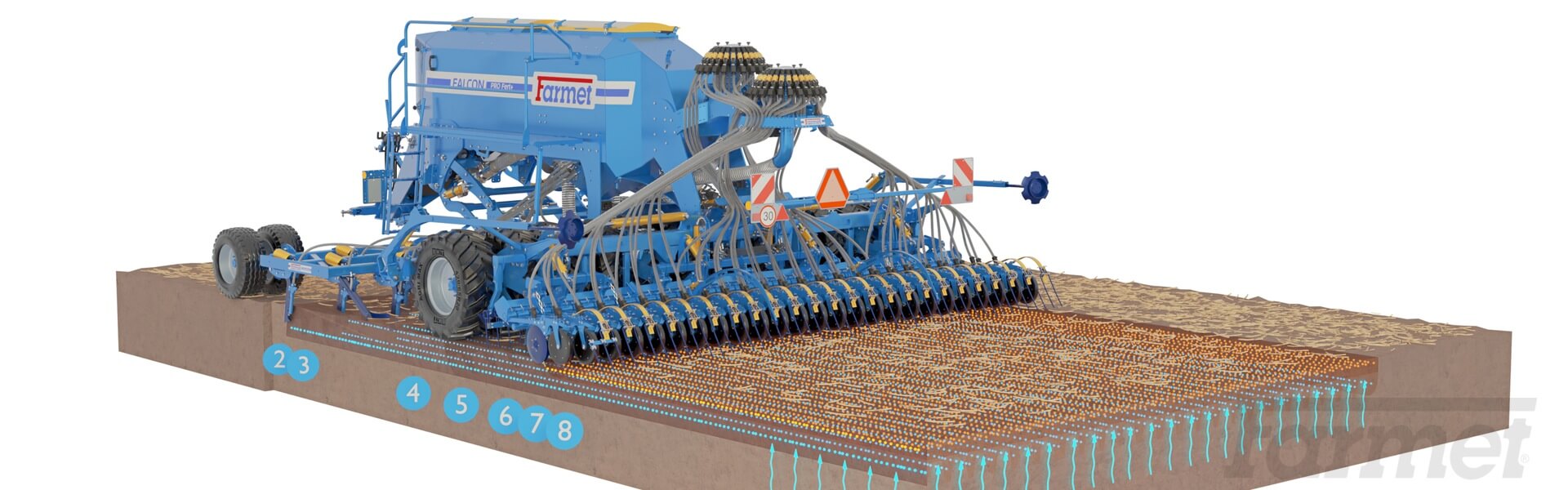

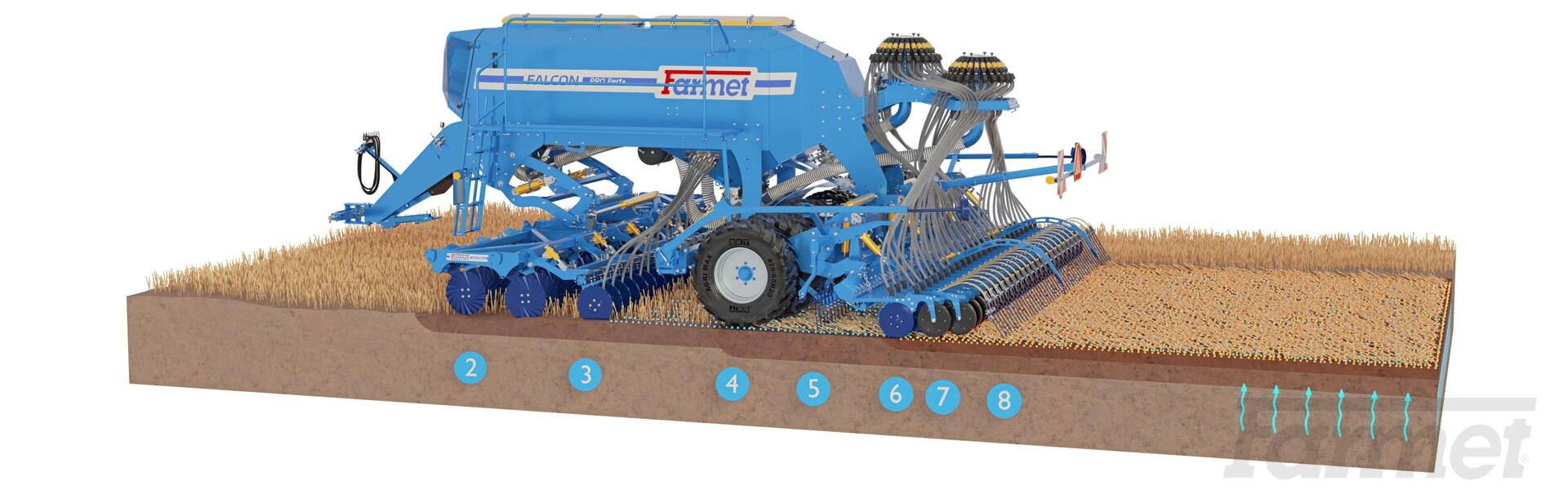

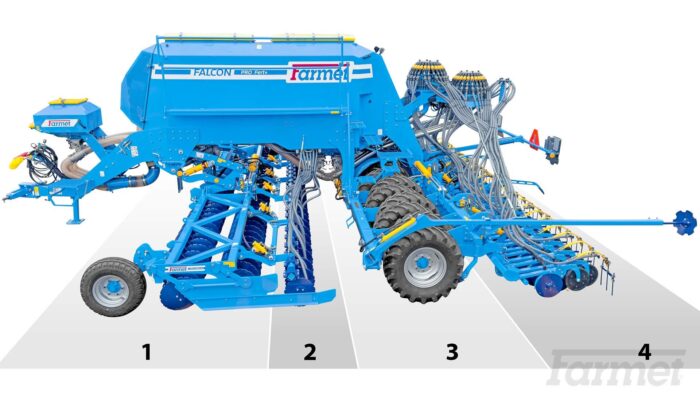

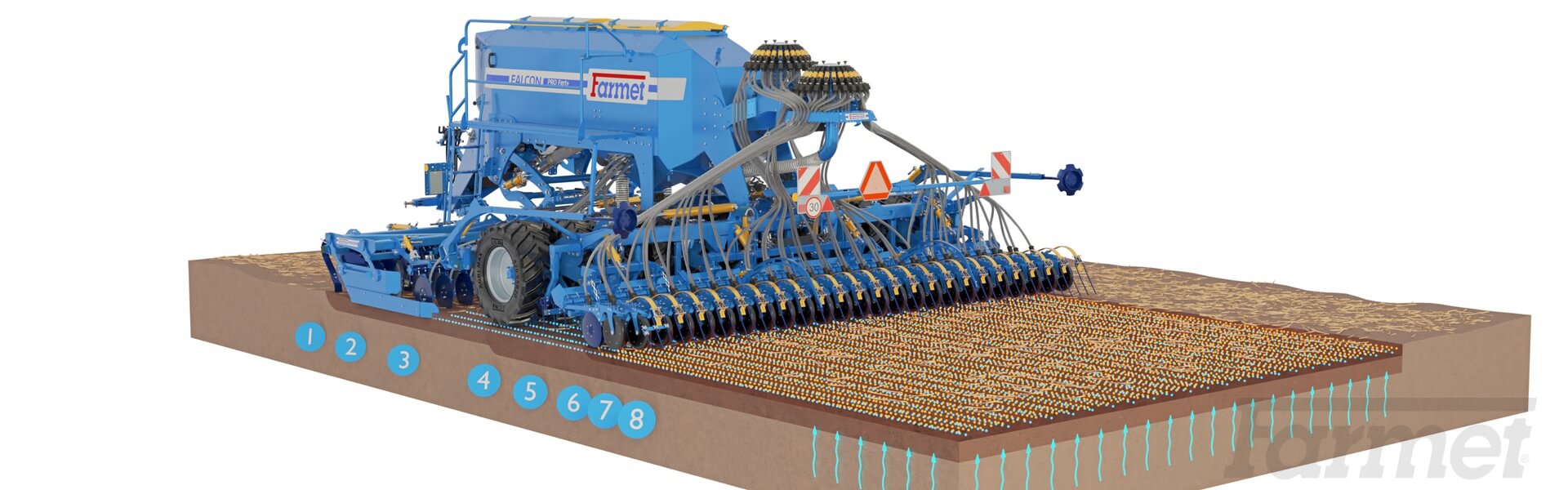

Seeding zones
With Falcon Pro seed drills, 8 operations are performed in one pass:
1. Primary soil leveling zone. A precisely leveled soil surface allows for uniform consolidation and loosening of the seedbed.
2. Soil preparation zone. The soil can be cultivated with various tillage sections – across the entire sowing width or in zones up to 25 cm deep. Primary cultivation enriches the soil with air, levels it and optimally loosens it. It also spreads plant residues.

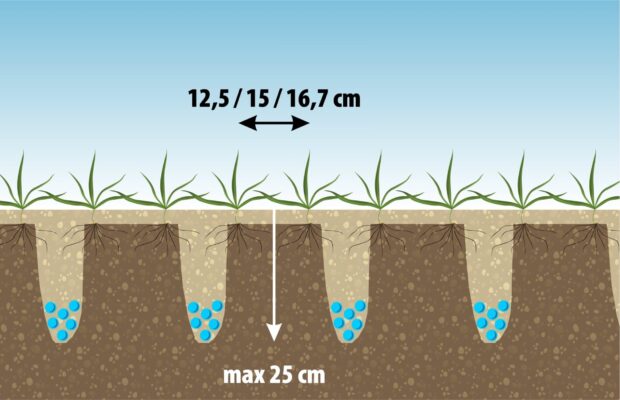

3. Fertilizer insertion zone. Granulated fertilizer is inserted into the root zone of future plants in each row or between two rows. The fertilizer insertion depth can be 6 - 25 cm, depending on the selected section.

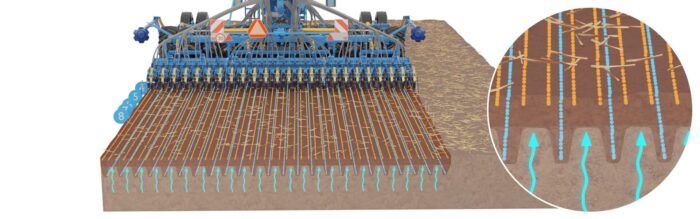

4. Soil compaction and deep soil capillarity restoration zone. Good compaction ensures effective water infiltration to the soil surface even in dry conditions.
5. Soil leveling and crop residue spreading zone before sowing. The tines effectively level the soil surface and remove crop residue from the row.

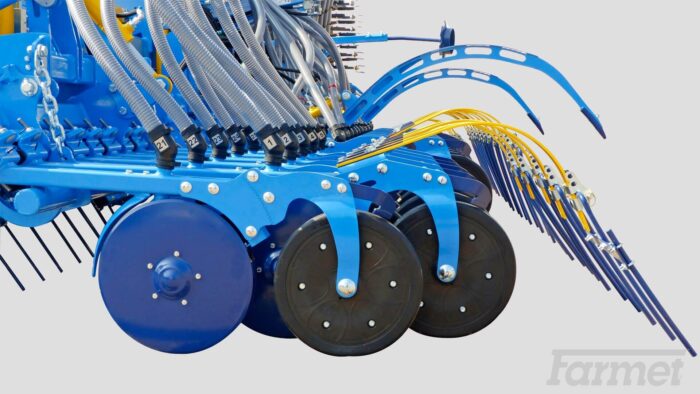

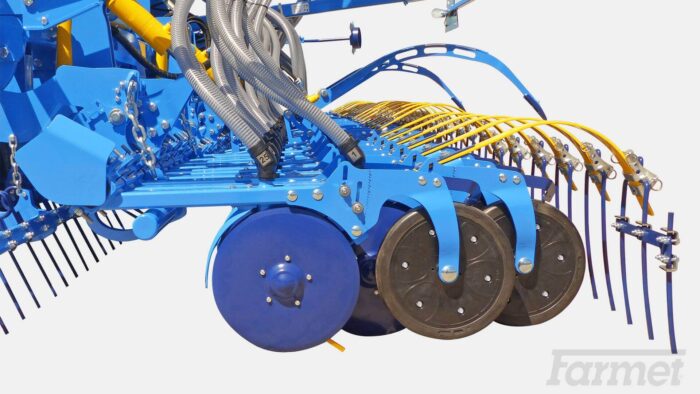

6. Seedbed formation and seed placement zone. The double disc sowing discs effectively form a compacted soil for sowing (V-shaped furrow) and precisely place the seed at the required depth. Due to the high downforce, up to 70 % machine weight can be transferred to the sowing discs. The compacted soil for sowing and the V-shaped furrow ensure excellent seed contact with the soil and soil moisture.

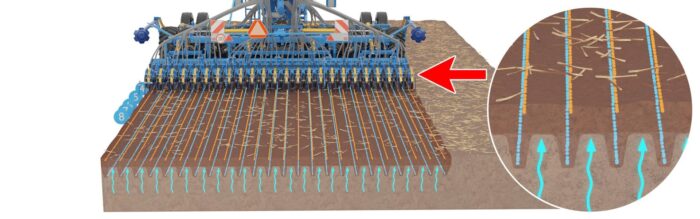

7. Lateral seed pressing zone. The copying wheel presses the V-shaped groove with the seed, thus compressing the seed with the soil from the side. The soil above the seed remains loose, which significantly improves seed germination.

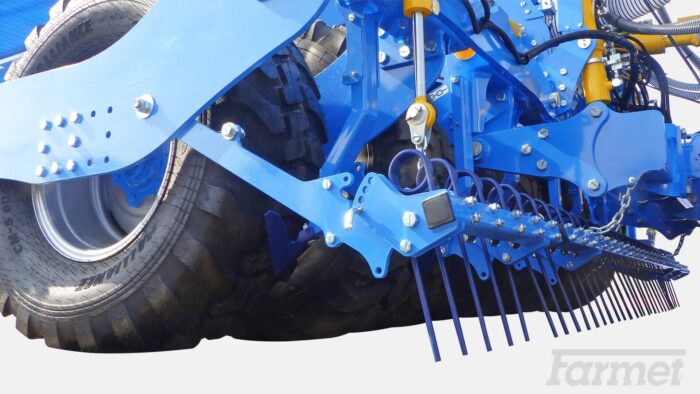

8. Seed covering and soil leveling zone. Integrated tines ensure excellent seed covering and precise soil surface leveling.
All sowing functions in one pass – soil cultivation, fertiliser application and sowing

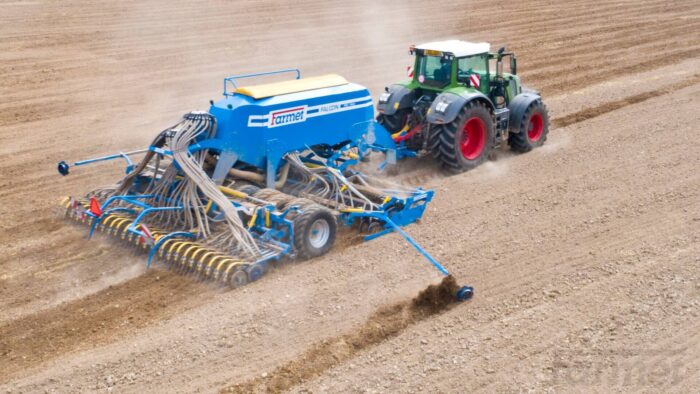

Falcon PRO is a high-quality, efficient seed drill that performs several functions in one pass. You can choose the drill in a basic configuration without fertilizer application or with the ability to sow two crops (individual seed dosage and seed placement depth) with fertilizer application.

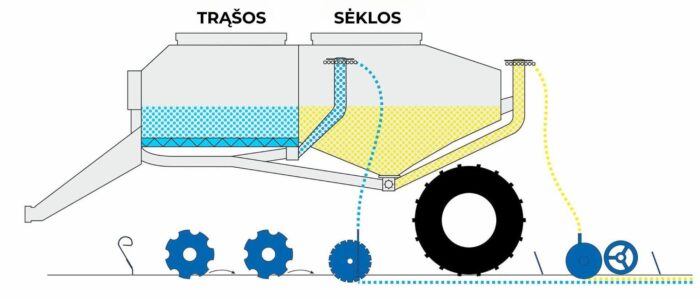

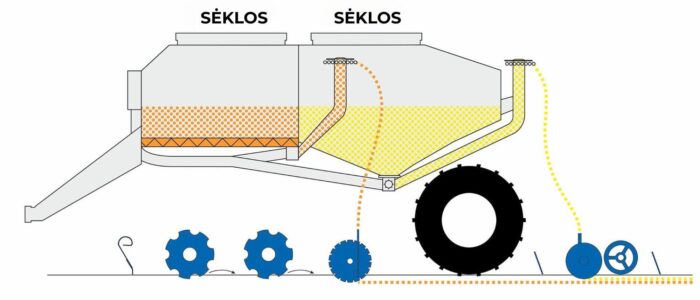

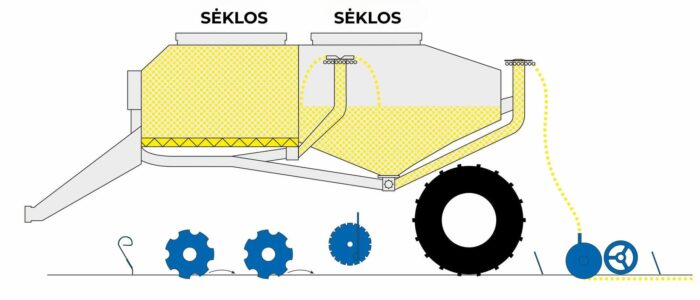

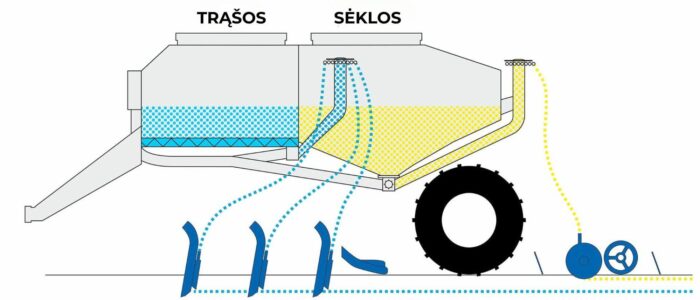

A wide range of options for fertilizer application and multi-crop sowing in one pass: Falcon PRO Fert+

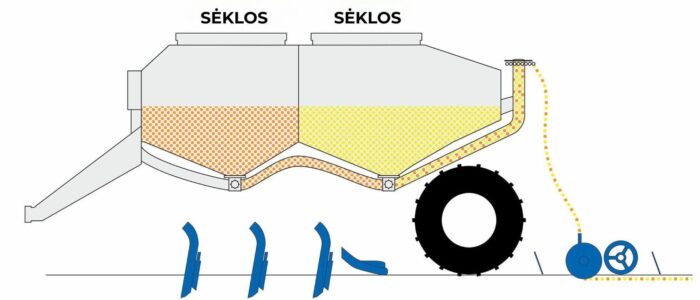

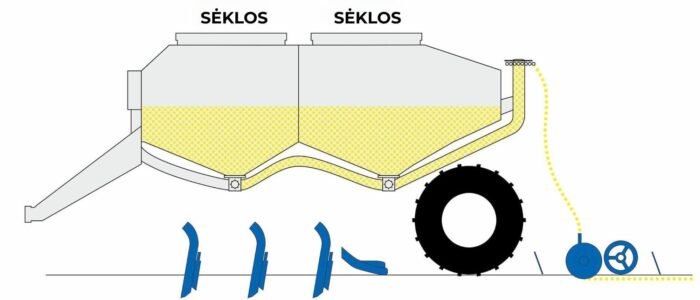

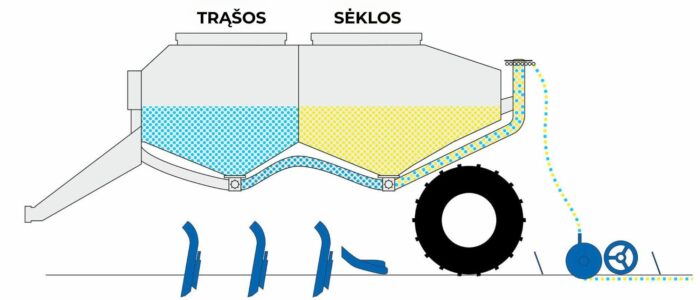

Falcon PRO FertS

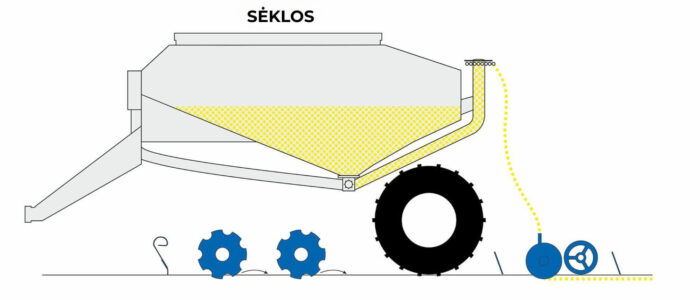

Without fertilizer application
Fully electronic control and monitoring of drill functions
ISO-BUS electronic system with iPad terminal.
Electric metering unit with fully automatic seeding control, depending on the current working speed.
Optoelectronic monitoring of the seed flow to each individual sowing disc.
Section Control – automatic section shut-off
- Optimal sowing in corners and at the end of the field without overlaps or gaps.
- Freely adjustable section shut-off width.
- The smallest section is 1 sowing disc.
- The edges of the field are sown after the main part of the field has been sown so that the plants germinate evenly and with good quality.
- Seed saving.
- Compatible with ISO-BUS electronics.
Clear visualization of the sown area in the tractor terminal.
The crop was harvested using a Falcon seed drill controlled by individual seeding discs.

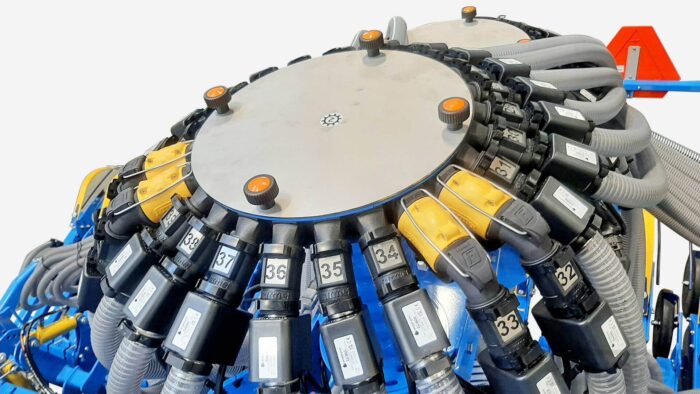

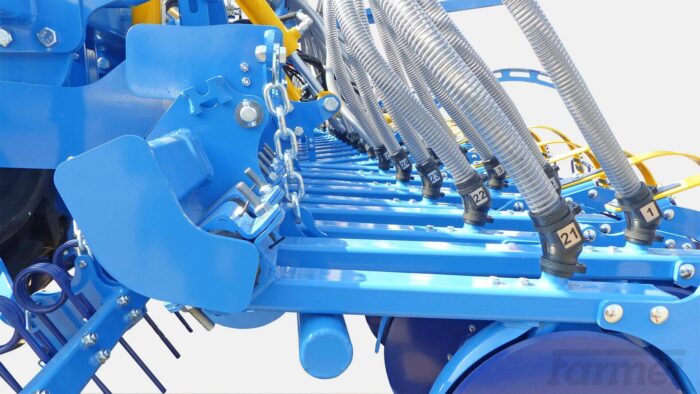

Reliable and precise seed flow control using pneumatically operated valves.
Fully equipped distributor for individual seed flow control to each sowing disc.
Variable fertilizer and seed dosage rate

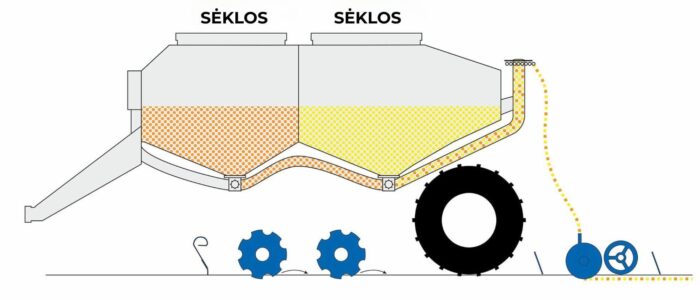

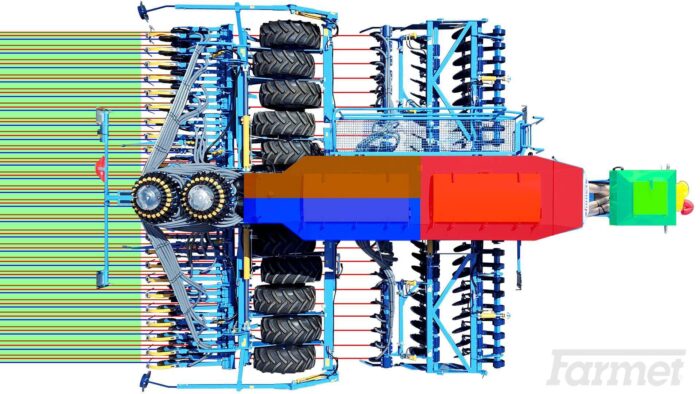

Sowing multiple crops in one pass
Sowing four crops in one pass.

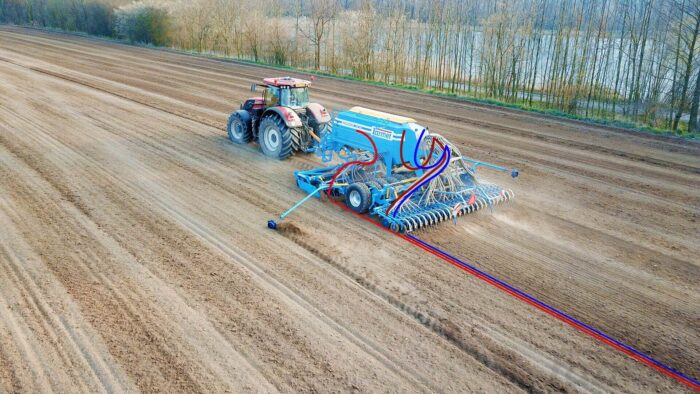

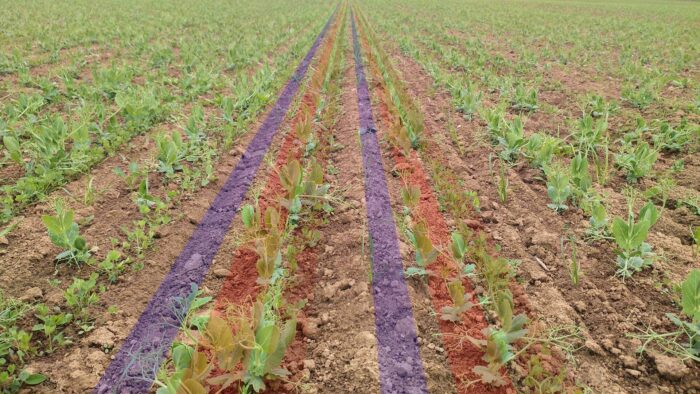

Sowing three crops in one pass.
Sowing three crops in one pass: grass, peas, alfalfa.
Sowing two crops in one pass: barley, clover.
The electronic system of the drill communicates with the tractor via ISO-BUS
Planter control via iPad with wireless (Wi-Fi) electronics – Farmet CONNECT
Control via tractor terminal or additional display with Müller Electronics system

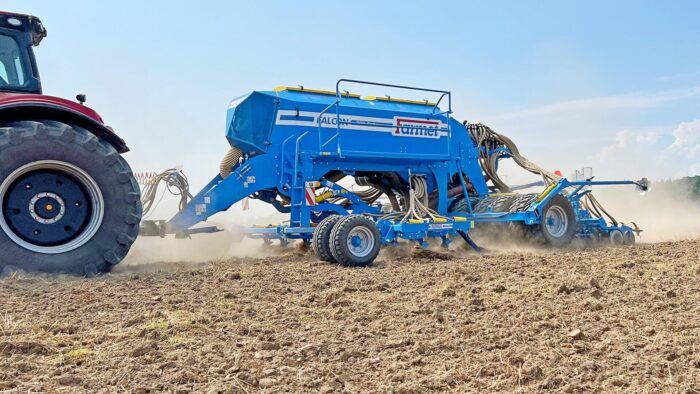

High quality and efficient work
- High working speed – up to 20 km/h
- The large wheels ensure low soil pressure and excellent tracking.
- Large seed box capacity allows you to sow a large area without filling the drill.
- Excellent surface smoothing and compaction before the sowing section.
- Possibility of parallel sowing two cultures at different depths.
One of the biggest advantages is versatility and adaptability, providing great work versatility. Seeding disc Divided seed hopper Low soil pressure

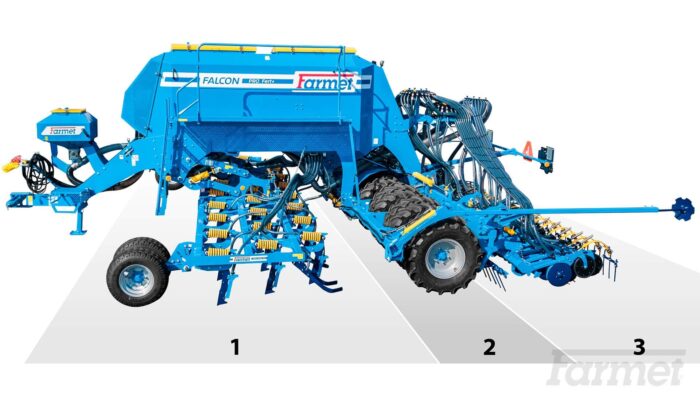

Falcon PRO Fert+ & Micro Drill
Used for production extremely high quality materials and applies eXtra STEEL line The technology guarantees long-term use even in the most difficult conditions.
Excellent relief copying Maintenance-free bearings Maintenance-free installation of seed discs
The minimal number of adjustment and lubrication points ensures that working with the machine, its operation and subsequent maintenance are extremely simple and easy for everyone to master.
Adjustable seed disc pressure force Adjusting the working depth of the front section Adjusting the sowing depth

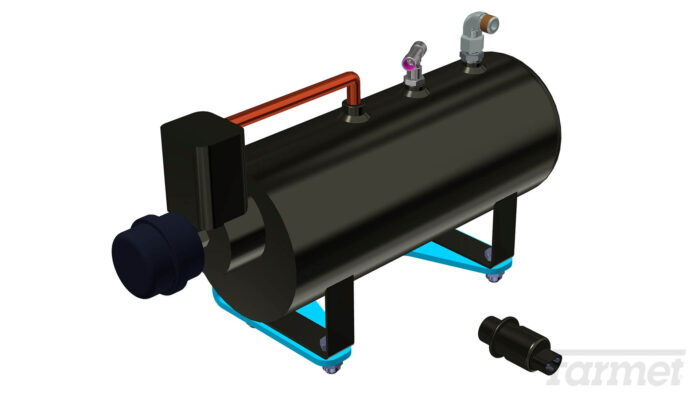

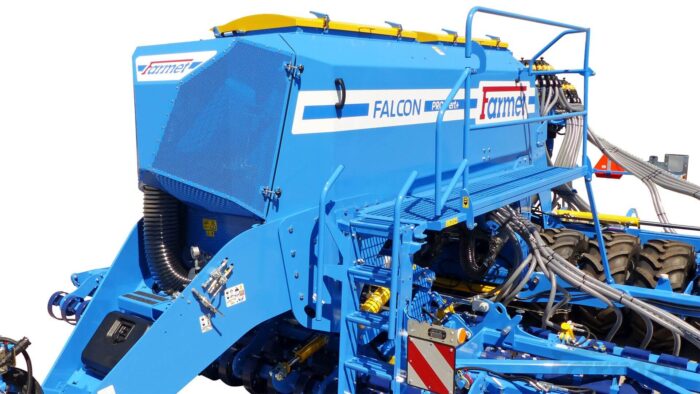

Pressure bunker

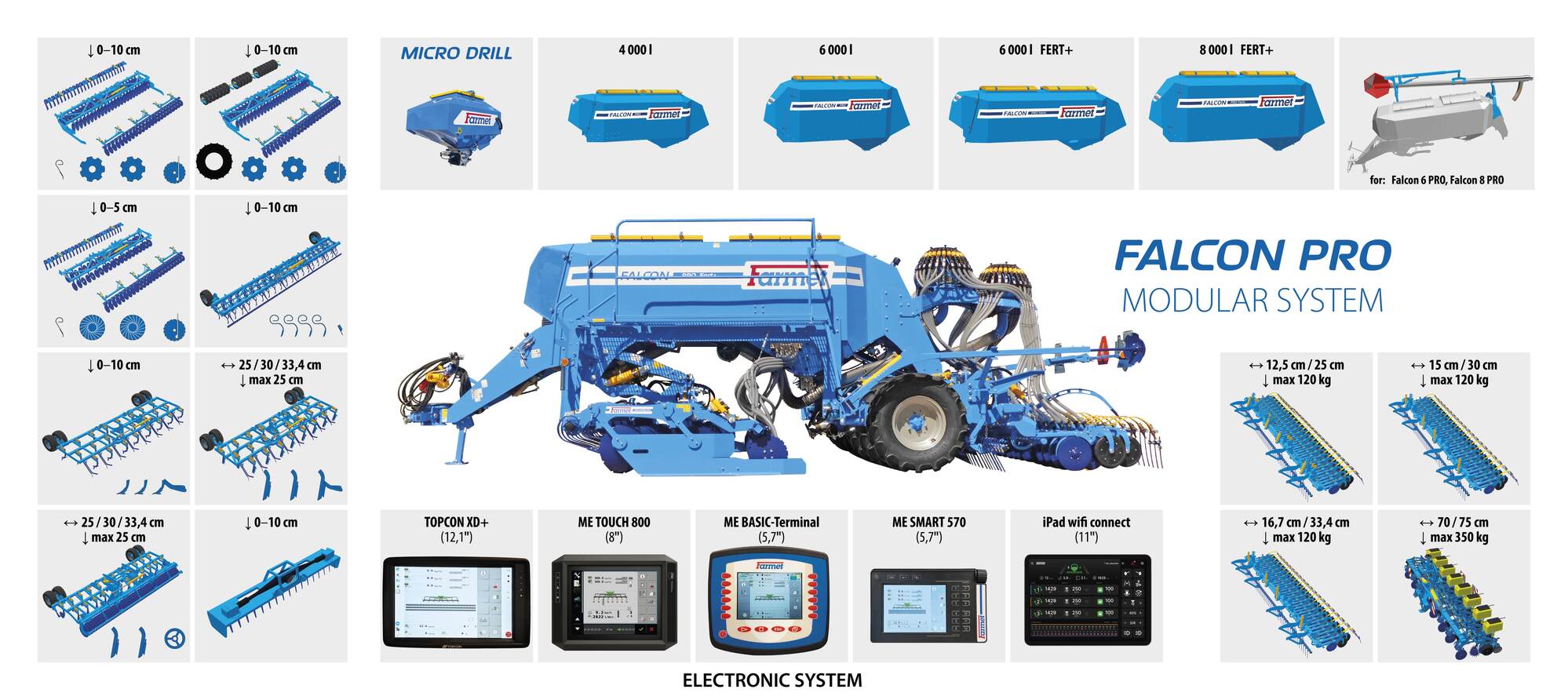

Thanks to the modular system, the machine can be adapted to various sowing technologies, suitable for sowing all common crops. A big advantage – the ability to sow two different crops at different depths in one pass.
Fertilization elements Fertilizer discs Seed rate determination Quick hitch system TPH suspension system
Roller dispenser "FertS"
Falcon 4 PRO Fert+ FIX
Falcon 6 PRO Fert+
Falcon 6 PRO
Falcon 8 PRO Fert+ QH
Falcon 8 PRO Fert+
Falcon 8 PRO Fert+
Versatility
Possibility of separately adjusting different sowing depths for even and odd sowing discs. Independent sowing of two different crops.
Possibility of additional fertilization during sowing. Two-chamber 6,000 liter hopper divided in a ratio of 40:60 (fertilizer:seed).

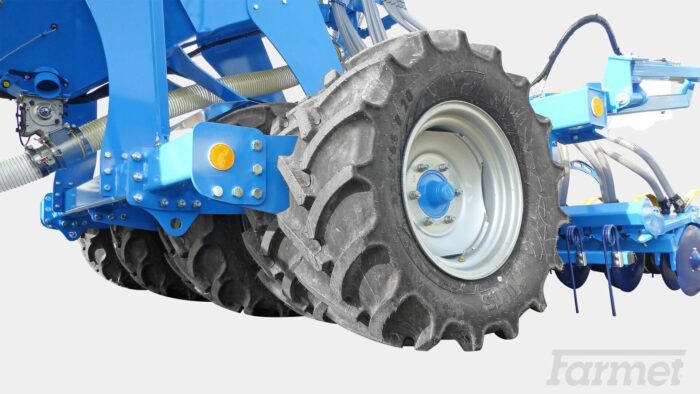

The roller with large low-pressure tires ensures low soil pressure and excellent contour following. It ideally levels and compacts the surface in front of the seeding discs.
Aketėlės
The coulters between the wheels and the sowing section remove plant debris and partially prepare the seedbed.

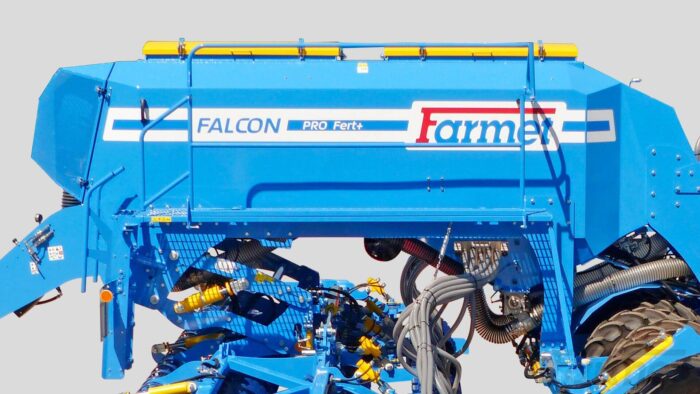

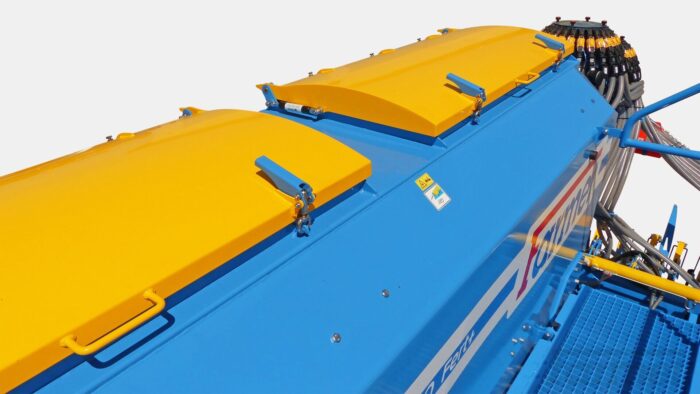

Larger seed hopper
The 4,000-liter hopper (6,000-liter hopper capacity with fertilizer) allows you to sow a larger area without refilling the drill.
Sturdy construction
The flexible frame structure perfectly absorbs shocks and precisely copies the terrain.

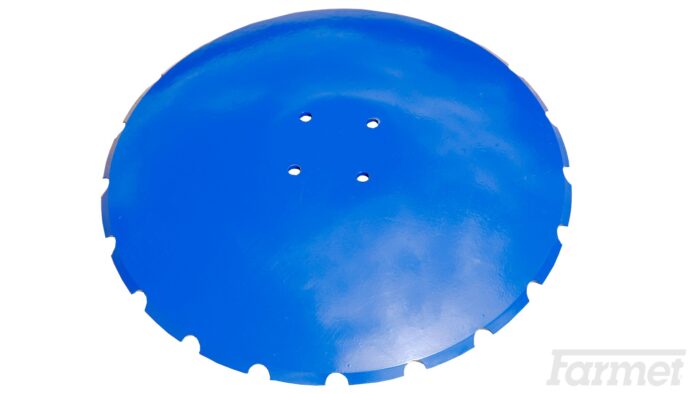

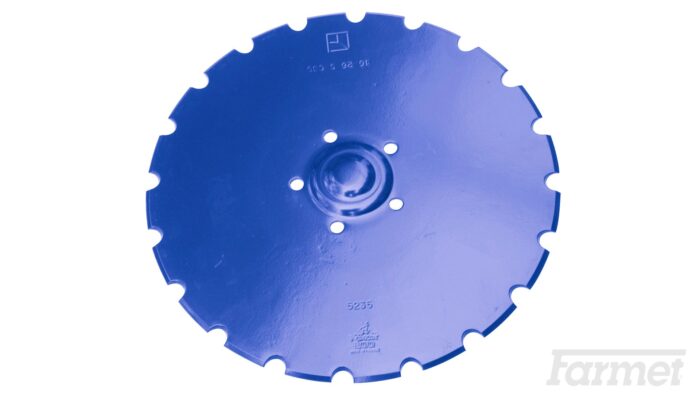

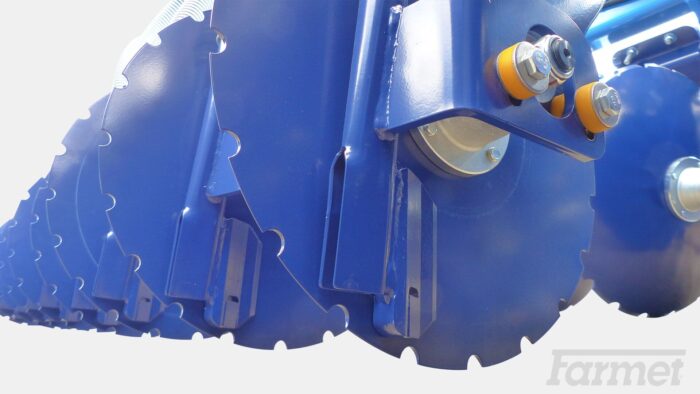

All 490 mm diameter discs are mounted in such a way that operation is completely lubrication-free.
The durable and maintenance-free rubber mounting of the seed discs adapts to the terrain and protects against overloads.
Easy to use

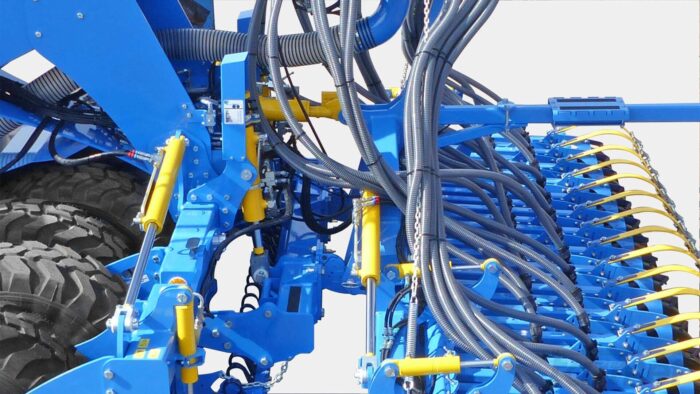

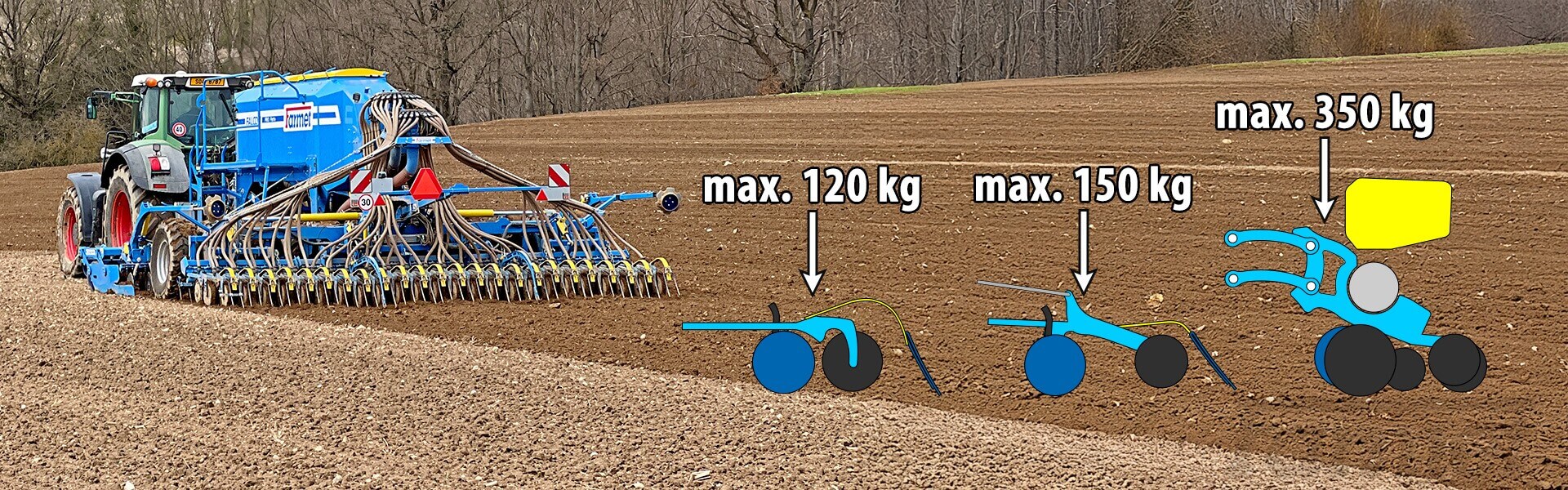

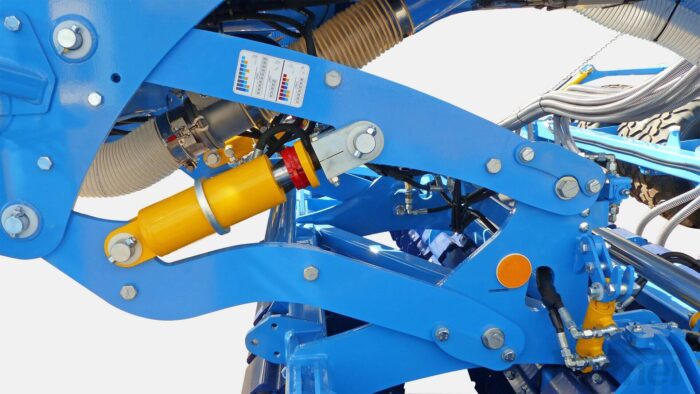

The pressure force of the sowing discs is hydraulically adjusted smoothly.

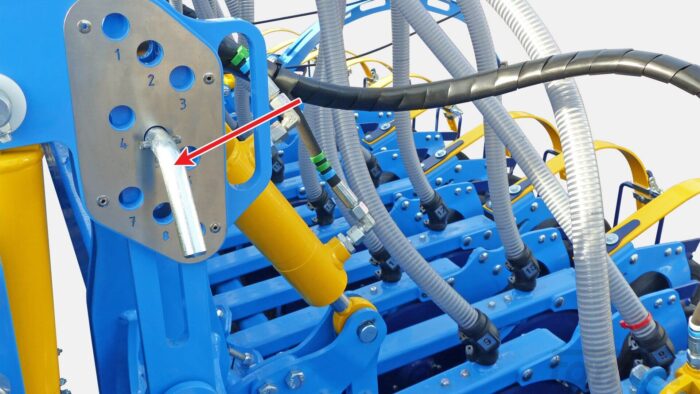

Easy adjustment of working depth according to a clear diagram using spacers on the piston rods.
Very simple and quick setting of the required sowing depth.

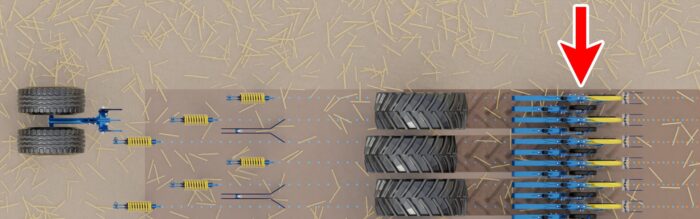

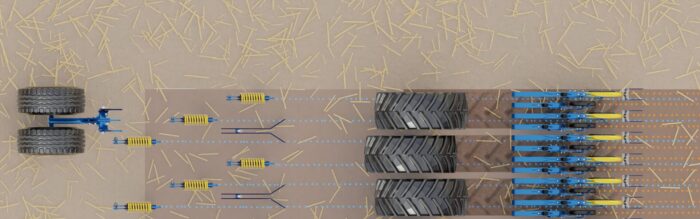

Adjusting the side deflectors
Side deflectors, adjustable in height and length, are designed to control the treated soil and ensure smooth connection of passes.

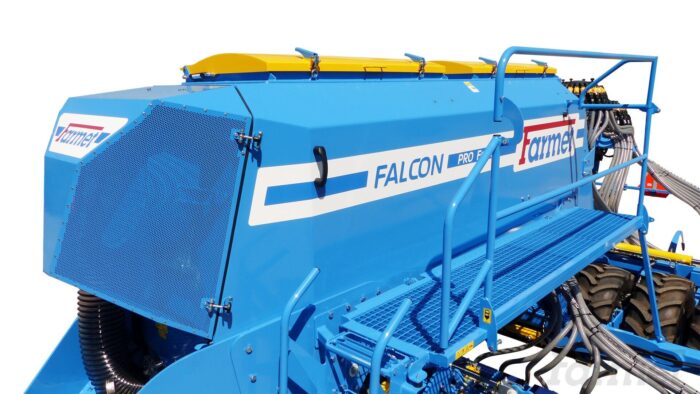

Simple hopper filling
A wide and long service platform ensures safe and convenient filling of the seed box with seeds.
Intelligent machine design
Fertilizer elements with granular fertilizer insertion devices.

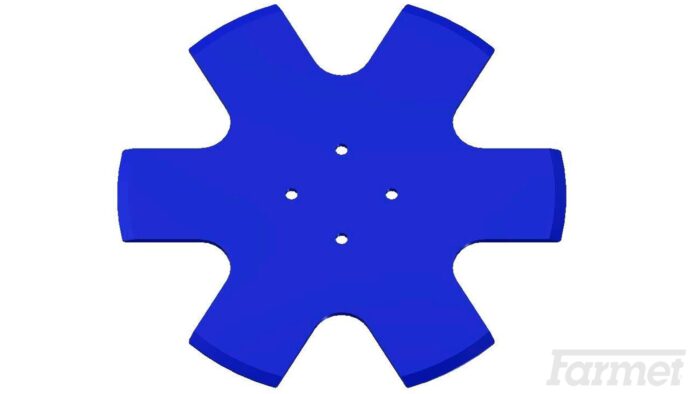

Fertilizer discs with a granular fertilizer insertion device.

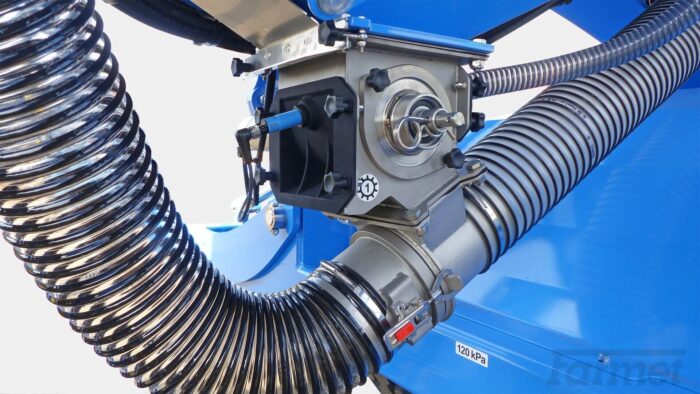

Modern seed dispenser with replaceable coils.
Through the three-point suspension system.
Designed for quick change of sowing sections.
Screw or roller fertilizer dispensers

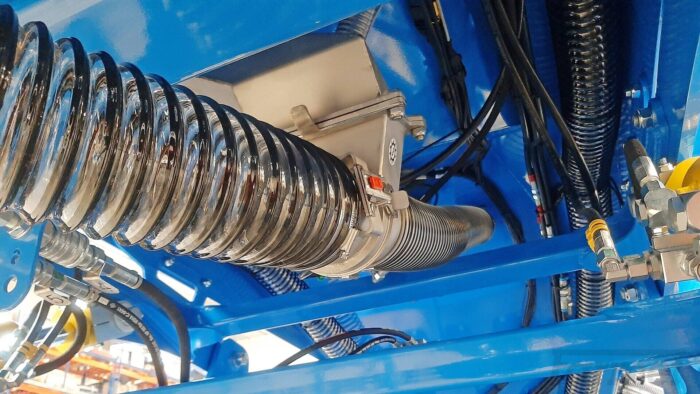

Screw feeder "Fert+"
Modern screw dosing device. Fertilizer is directed to the fertilizing elements.
Screw feeder "Fert+"
Modern screw dosing device. Fertilizer is directed to the fertilizing elements.
Modern roller dispenser with replaceable rollers. The fertilizer is directed directly to the seed.

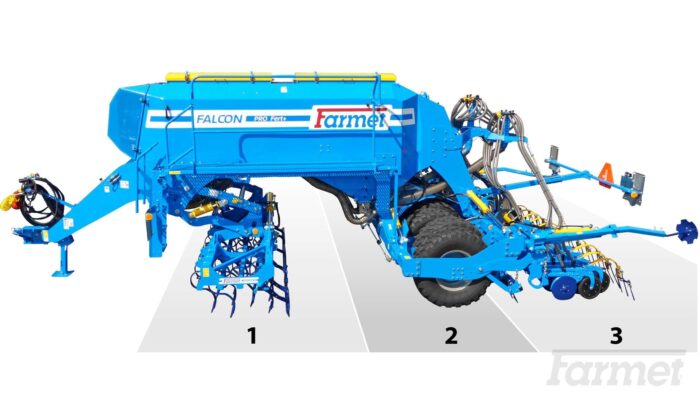

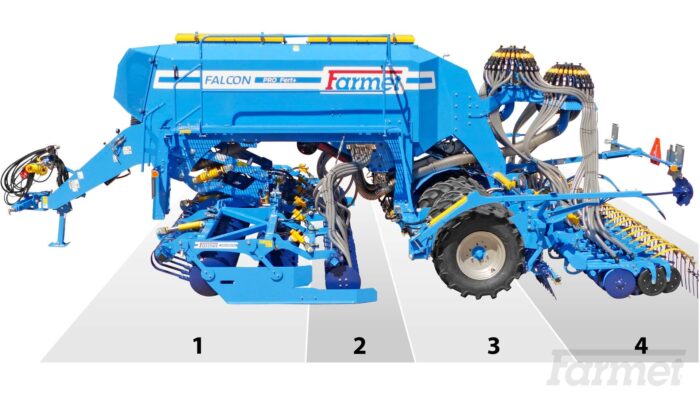

Depending on needs and sowing technology, you can choose the working sections from a wide range of sections offered. Additionally, you can change the seed box, cultivation section, sowing section and additional section.

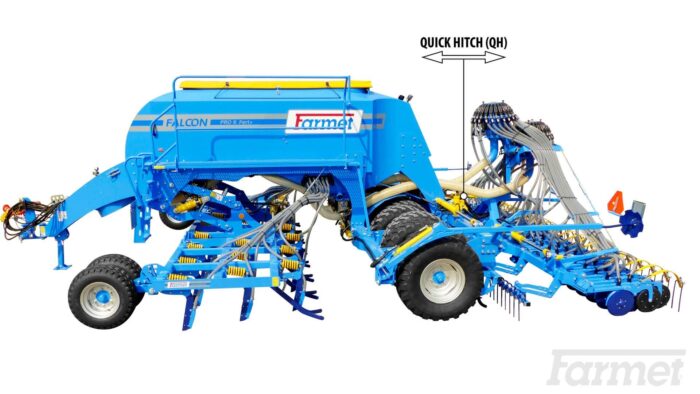

You can easily change the working sections in your farm fleet using a telescopic handler:
Single chamber bunker Two (three) chamber hopper – with additional fertilization with granular fertilizers

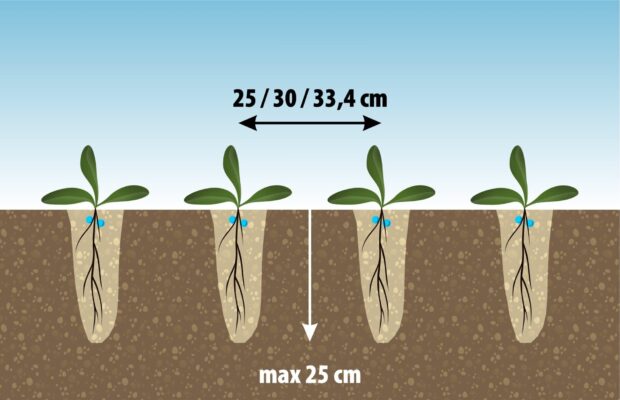

3-row tine section for STRIP-TILL technology, with 250 / 300 / 334 mm row spacing 2-row tine section for STRIP-TILL technology, with 250 / 300 / 334 mm row spacing 4-row tine section for full-area tillage Disc cultivator for full-area soil cultivation Disc tillage cultivation section with wavy discs, row spacing 125/150/167 mm – NO-TILL technology Rotary harrows Flexi-board ironing board
Double disc sowing unit (125 / 150 / 167 mm row spacing) Double disc sowing unit (250 / 300 / 334 mm spacing) Double-disc STRIP TILL sowing unit (375 mm row spacing)Suitable for use with strip tillage technology, with the ability to incorporate fertilizer up to 300 mm deep. Best suited with a 2-row tine tillage section. Precision sowing wide row spacing section
Disc section for fertilizer application Tine section for fertilizer application Flexi-board ironing board
Wide selection of working sections
Changing working sections
Bunker

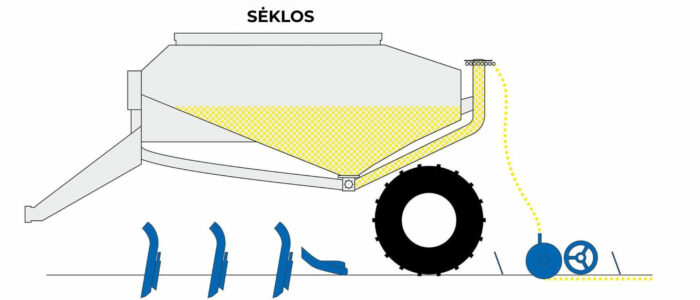

Simple universal design for sowing without additional fertilization.

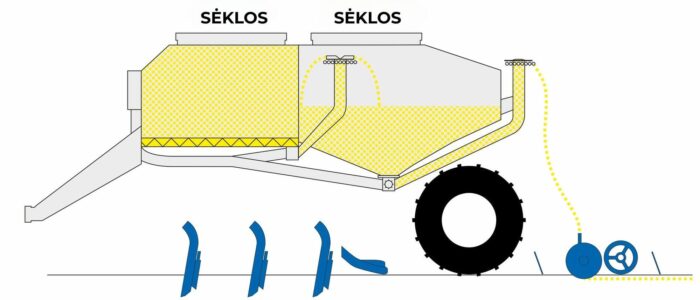

Two-chamber - for sowing with fertilizer application or for sowing in the same time. Three-chamber (with removable partition) - allows sowing two different crops at the same time with additional fertilization.
Cultivation section options

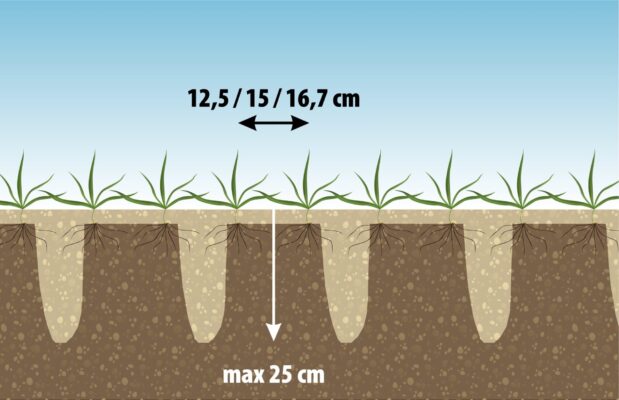

Belt soil cultivation technology with the possibility of additionally incorporating granular fertilizers up to a depth of 250 mm.
Suitable for use with strip tillage technology and strip seeding.
Especially suitable for wet conditions - sowing spring crops.

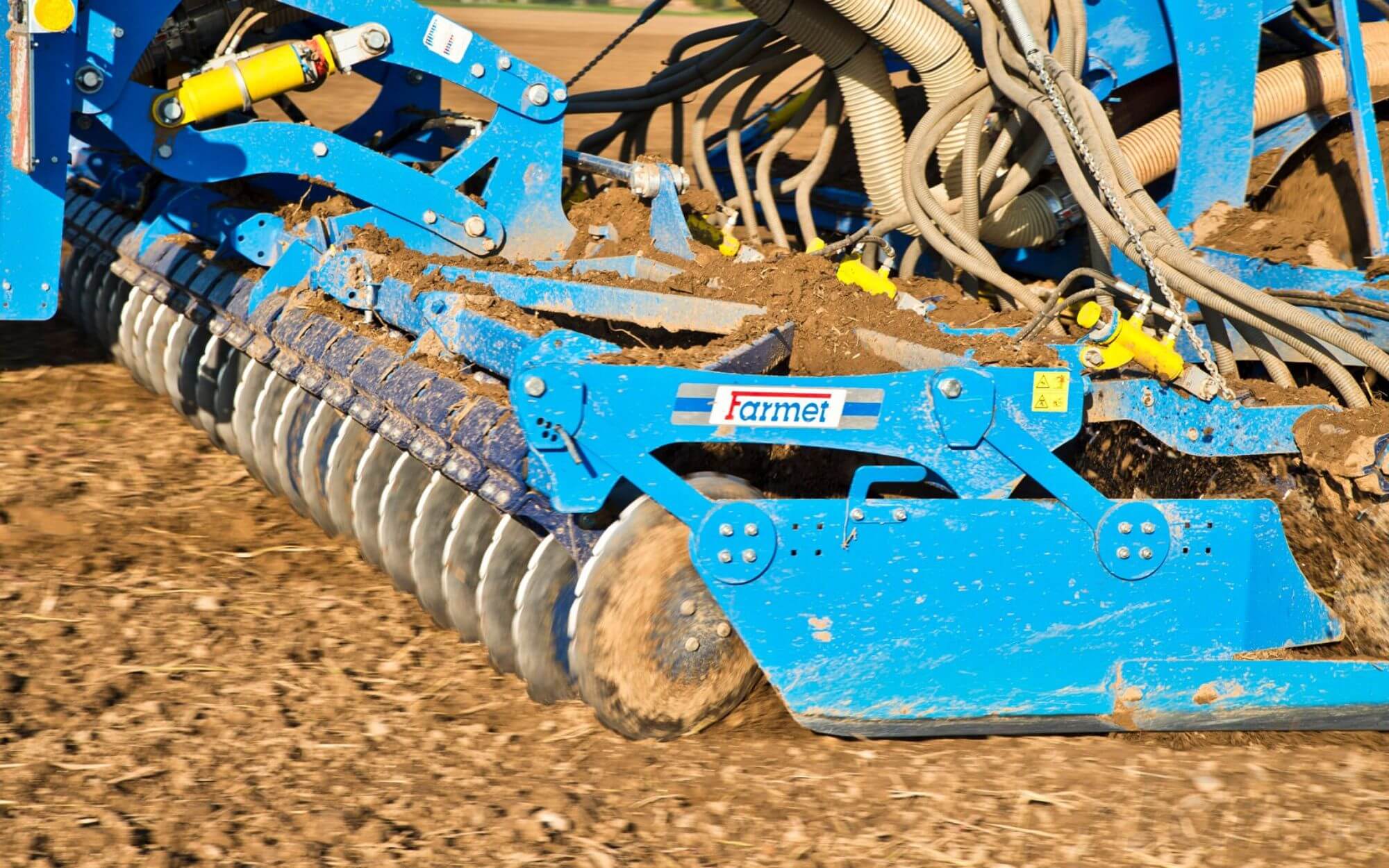

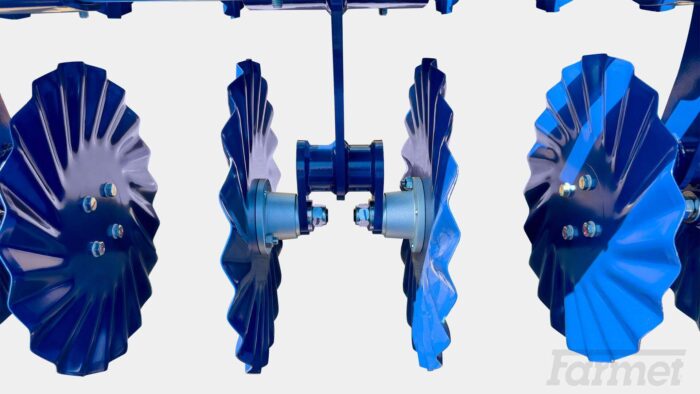

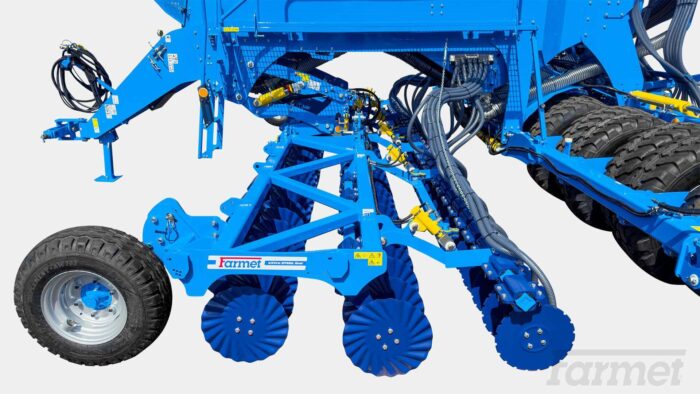

Universal tillage section, suitable for all soil types. Tillage depth up to 100 mm.
Direct tillage technology with fertilizer incorporation. Tillage depth up to 50 mm.
For extremely meticulous seedbed preparation.
For even distribution of clods and crop residues across the entire width of the machine. Larger clods are pushed under the roller wheels.
Seeding section
Suitable for sowing bellflowers and legumes.
In combination with the 3-row STRIP TILL tine, the tillage section is suitable for strip tillage, seeding with fertiliser up to a depth of 200 mm. Ideal for sowing winter rapeseed.
Suitable for sowing corn, sunflowers, rapeseed. Disc fertilizing can be selected. Fertilizer is applied from both sides of the row.
Additional section

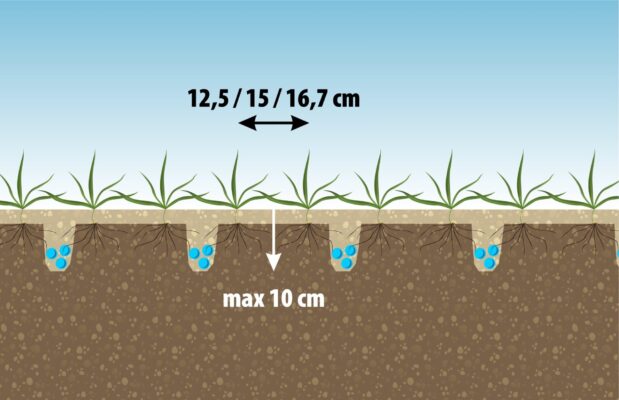

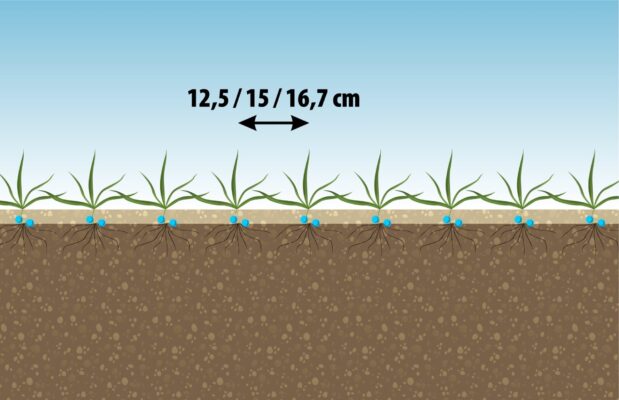

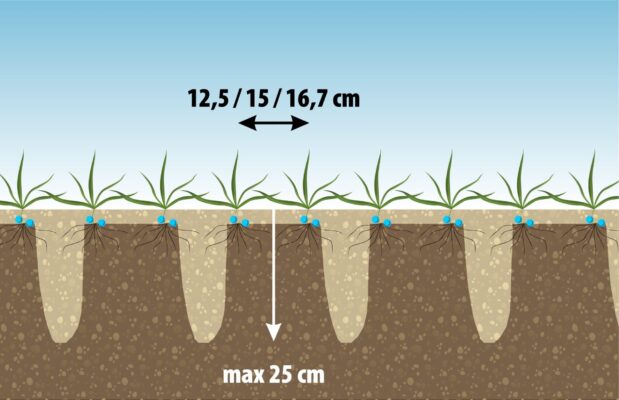

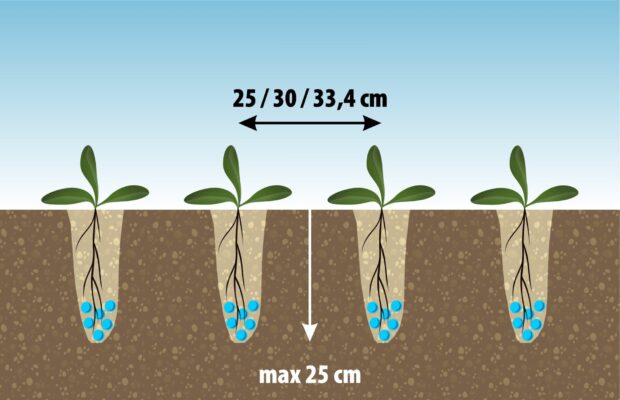

Granular fertilizer is placed in each row. Only with two-chamber seed hopper.
Fertilizer application integrated into 2 or 3 row STRIP TILL section. Only with two-chamber seed hopper.
For even distribution of clods and crop residues across the entire width of the machine. Larger clods are pushed under the roller wheels.
iPad wireless connection (Wi-Fi)

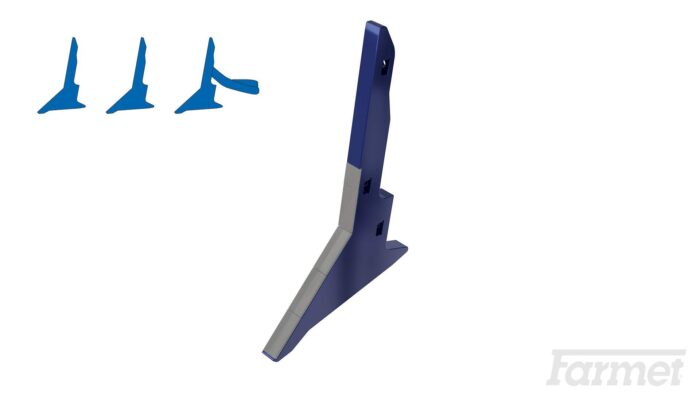

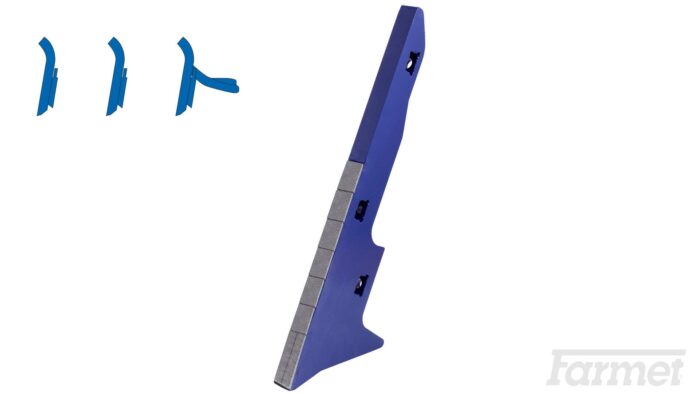

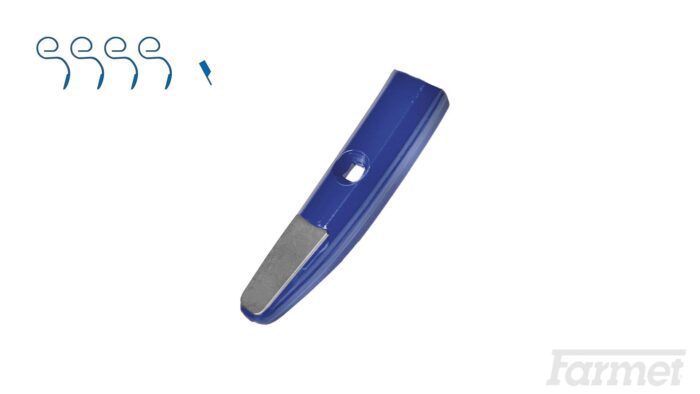

MULTICARBIDE chisel Chisel with MULTICARBIDE tip CARBIDE chisel DURA+ disc Fertilizer disc DURA+ Soil cultivation disc
Track valves Section management

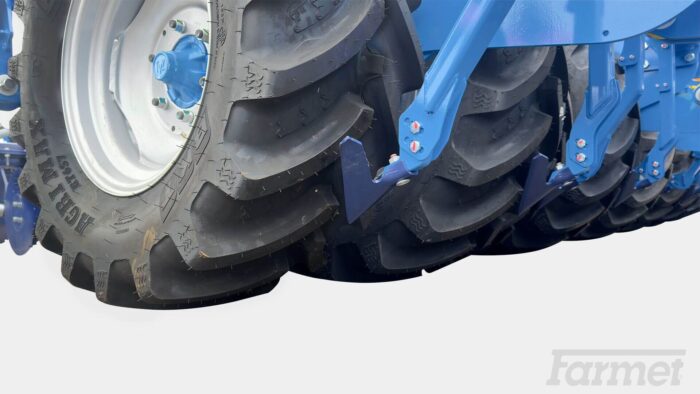

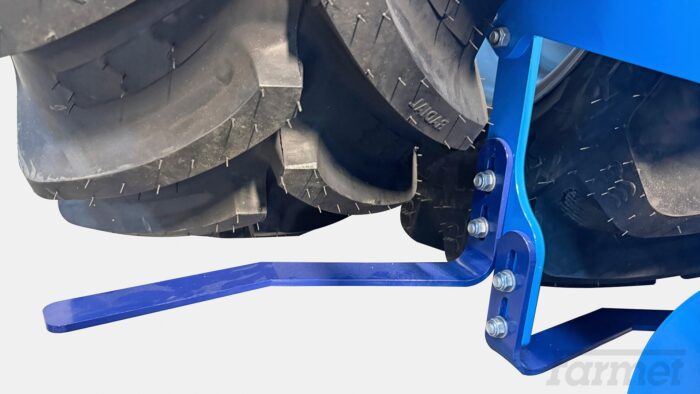

Wheel and roller wipers Wheel and roller tine scrapers Lighting
Fan with cooler "Y" adapters for connecting seed tubes - ½ row spacing sowing Hydraulic motor for fan drive

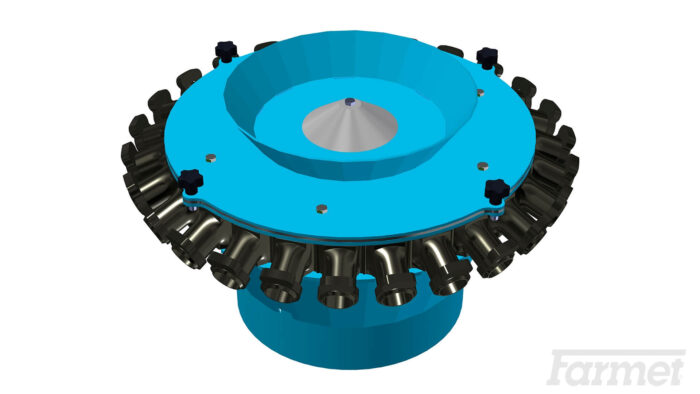

Adapter for blowing seed from the seed box Micro Drill small seed drill Dual-line single-circuit pneumatic brakes

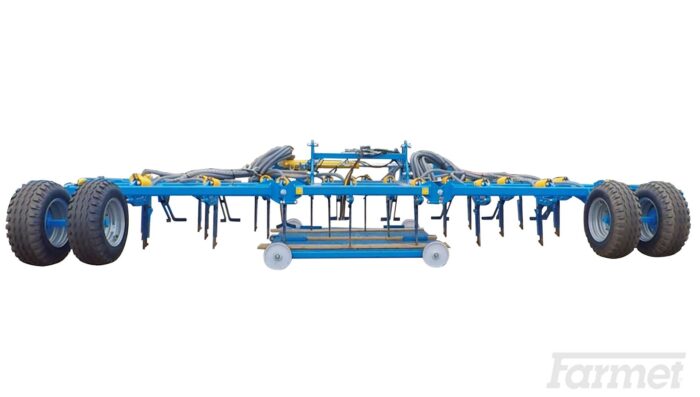

Large seed box Trolley for quick change of the front section
Control terminals
Seed counting and sowing control for each individual sowing disc.
Topcon XD+
Müller Elektronik: ISOBUS DRILL-Controller
ME TOUCH 800®
Müller Elektronik: ISOBUS DRILL-Controller
BASIC terminal
Müller Elektronik: ISOBUS DRILL-Controller
ME SMART 570®
Müller Elektronik: ISOBUS DRILL-Controller
iPad wireless connection (Wi-Fi) Topcon XD+ ME TOUCH800® BASIC terminal ME SMART570®
Screen dimensions 11" 12,1" 8" 5,7" 5,7"
Seed passage sensor control + + + + +
Seed hopper level indicator + + + + +
Fan speed monitoring + + + + +
Metering speed monitoring + + + + +
Engine speed monitoring + + + + +
Number of dosing motors 3 3 3 3
Track flap control + + + + +
Drill position display + + + + +
Work lighting control + + + + +
Seed box lighting control + + + + +
Marker control + + + + +
Prenatal marking management + + + + +
Seed replenishment during work + + + + +
Sowing small seeds + + + + +
Simultaneous windows 5 2 1 1
Video camera input + + + - -
GSM modem + for an additional fee - - -
Working tools
Cancer formation
Other optional equipment
High-intensity LED lights for comfortable work in low visibility.
For Falcon 4 and Falcon 6 models - for an additional fee.
In the Falcon 8 model - as standard equipment.

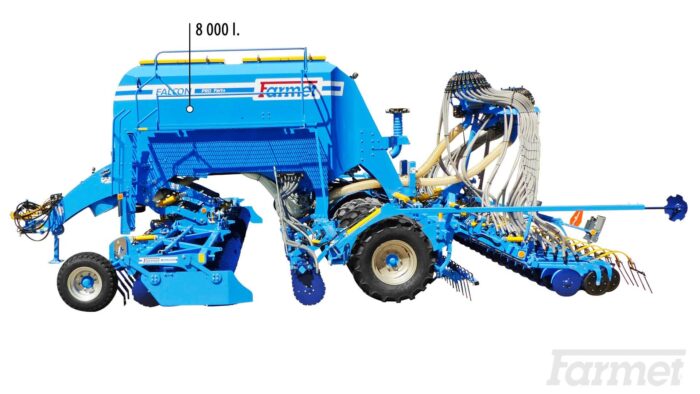

Capacity – 8,000 liters
| Falcon 3 PRO Falcon 3 PRO QH | Falcon 4 PRO Falcon 4 PRO QH | Falcon 4 FIX PRO Falcon 4 FIX PRO QH | Falcon 6 PRO Falcon 6 PRO QH | Falcon 8 PRO Falcon 8 PRO QH |
|
|---|---|---|---|---|---|
| Working width, mm | 3000 | 4000 | 4000 | 6000 | 8000 |
| Transport width, mm | 3000 | 3000 | 4000 | 3000 | 3000 |
| Transport height, mm | 3100 | 3350 | 3100 | 3350 | 4000 |
| Total length of the machine with fertilization, mm | 9000 / 9800 | 9000 / 9800 | 9000 / 9800 | 9000 / 9800 | 9000 / 9800 |
| Total length of the machine without fertilizing, mm | 8300 / 9100 | 8300 / 9100 | 8300 / 9100 | 8300 / 9100 | 8300 / 9100 |
| Seeding depth, mm | 0-80 | 0-80 | 0-80 | 0-80 | 0-80 |
| Seed hopper capacity, l | 4000 | 4000 | 4000 | 4000 | 4000 / 6000 |
| Hopper capacity with fertilizer 40:60 (fertilizer:seed), l | 6000 | 6000 | 6000 | 6000 | 6000 / 8000 |
| Loading height, mm | 2930 | 2930 | 2930 | 2930 | 2930 / 3250 |
| Dimensions of filling openings without fertilizer insertion/with fertilizer insertion, m | 1140x620 1430x620 | 1140x620 1430x620 | 1140x620 1430x620 | 1140x620 1430x620 | 1140x620 1430x620 |
| Number of seeding units (distance 125/150/167 mm), pcs. | 24 / 20 / 18 | 32 / 26 / 24 | 32 / 26 / 24 | 48 / 40 / 36 | 64 / 52 / 48 |
| Number of additional fertilizing discs (distance 250 / 300 / 334 mm), pcs. | 12 / 10 / 9 | 16 / 13 / 12 | 16 / 13 / 12 | 24 / 20 / 18 | 32 / 26 / 24 |
| Seed disc pressure force – oscillating (adaptive), kg | 15–120 | 15–120 | 15–120 | 15–120 | 15–120 |
| Seeding disc pressing force – according to parallelogram suspension, kg | 15–150 | 15–150 | 15–150 | 15–150 | 15–150 |
| Pressing force of the fertilizer insertion discs, kg | up to 200 | up to 200 | up to 200 | up to 200 | up to 200 |
| Diameter of double-disc sowing discs / pressure wheel, mm | 355 / 330 | 355 / 330 | 355 / 330 | 355 / 330 | 355 / 330 |
| Number of discs in the disc cultivation section, pcs. | 23 | 31 | 31 | 49 | 67 |
| Number of tines in the 3-row tine section, 250 mm depth (distance – 250 / 300 / 334 mm) | 12 / 10 / 9 | 16 / 13 / 12 | 16 / 13 / 12 | 24 / 20 / 18 | 32 / 26 / 24 |
| Number of tines in the 2-row tine section, 250 mm depth (distance – 250 / 300 / 334 mm) | 8 | 10 | 10 | 16 | 22 |
| Work productivity, ha/h | 3 – 4.5 | 4 – 6 | 4 – 6 | 6 – 9 | 8 – 12 |
| Tractor power, kW/HP | 92 125 | 117 160 | 117 160 | 161-235 220─320 | 205─280 280─380 |
| Working speed, km/h | 10 – 20 | 10 – 20 | 10 – 20 | 10 – 20 | 10 – 20 |
| Maximum working slope, ° | 6 | 6 | 6 | 6 | 6 |
| Tire dimensions | 405/70 R20 420/65 R20 | 405/70 R20 420/65 R20 | 405/70 R20 420/65 R20 | 405/70 R20 420/65 R20 | 405/70 R20 420/65 R20 |

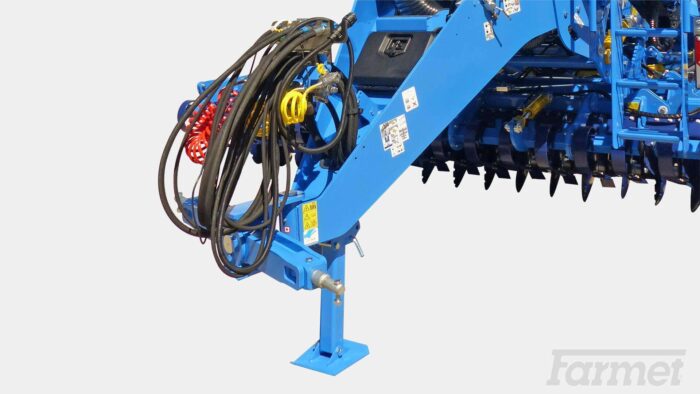

| Brakes | air/2 circuits | air/2 circuits | air/2 circuits | air/2 circuits | air/2 circuits |
| Required pressure, kPa | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 |
| Hydraulic connections / pressure, bar | 4 / 200 | 4 / 200 | 4 / 200 | 4 / 200 | 4 / 200 |
| Number/type of hydraulic connections | 6 / ISO 12.5 | 6 / ISO 12.5 | 6 / ISO 12.5 | 6 / ISO 12.5 | 6 / ISO 12.5 |
| Non-pressurized return line (max. 5 bar) | 1 / ISO 20 | 1 / ISO 20 | 1 / ISO 20 | 1 / ISO 20 | 1 / ISO 20 |
| Hydraulic fan oil flow, l/min | 30 – 40 | 30 – 40 | 30 – 40 | 30 – 40 | 30 – 40 |
| Machine control oil flow, l/min | 50 – 60 | 50 – 60 | 50 – 60 | 50 – 60 | 50 – 60 |
| Electrical requirements | 12V DC / 40A | 12V DC / 40A | 12V DC / 40A | 12V DC / 40A | 12V DC / 40A |
| Towing | TPH cat. 2 and 3 | TPH cat. 2 and 3 | TPH cat. 2 and 3 | TPH cat. 3 | TPH cat. 3 |
| Weight* without fertilization, kg | 4830 – 5840 | 5340 – 7580 | 5180 – 7350 | 6800 – 8920 | 8440 – 10240 |
| Weight* with fertilization, kg | 5630 – 6140 | 6630 – 8420 | 6430 – 8170 | 8000 – 9860 | 10600 – 13140 |
"Universal - can be sown not only using Strip-till technology, but also using disc cultivation."
View review
"I would definitely recommend this drill to more than one farm that is inclined towards no-till farming"
View review
FARMETH – the largest manufacturer of agricultural machinery for tillage and sowing in the Czech Republic. The company, founded in 1992, is growing rapidly and devotes much attention and investment to the development of new technologies.
FARMETH agricultural equipment manufactured by this manufacturer must meet the strictest standards of work quality, reliability and durability. All equipment of this manufacturer 36 months warranty provided.
Products and technologies are developed in close collaboration with customers, research institutes and universities. FARMETH The products feature unique technological solutions, some of which are patented. The company seeks not only to improve product quality and create added value, but also to improve production technologies, productivity, and improve occupational safety and environmental protection.
FARMETH The brand is focused on high-quality products and high value. Major investments in modern production management ensure further quality improvement and more efficient production. The goal is to increase the added value of products and strengthen their competitiveness in all markets.
You can rent this equipment!
We offer the possibility of this technique rent for a day, a week or any other time you want. For rental conditions or other land cultivation, sowing, fodder preparation, and fertilization equipment, please contact our technical department.
You may also be interested in:
Popular
Falcon Compact disc seed drills
Compact disc seed drills that are suitable for tractors from 140 HP. Robust construction, precise…
Popular
No-till seed drills Forte
3 and 4 m working width direct seeders, the ability to sow in all conditions.
