For pressing corn, crushed grains, sugar pomace and many other bulk products into rolls

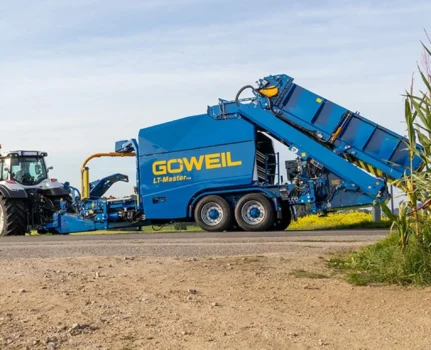

LT-Master F115 – a combination of three machines, consisting of a feeder/dosing unit, a roll press, and a wrapper
With LT-Master F115 GÖWEIL presents updated and improved a proven press-wrapper model. In addition to its modern design, the machine stands out for its many new technological solutions, which ensure even more convenient control and greater flexibility while performing various tasks.
Key Features of the GOWEIL LT-Master F115
High compression
The high density of the rolls allows the material to be compressed to a minimum volume, thereby reducing the amount of storage space required.
Fast and maneuverable
The swivel spindle can rotate up to 30° in either direction. This ensures a small turning radius and allows the unit to be operated from either side.
Advanced Braking System
A dual-circuit pneumatic brake system is installed as standard.
Quick setup
A major advantage is that the machine is ready for use in just about 3 minutes.
Continuous lubrication
The central lubrication system continuously supplies grease and oil to the main lubrication points. This ensures a long service life and reduces wear on parts.
Always ready to work
The hydraulically foldable film magazine holds up to 18 rolls of film, allowing the VARIO-Master V140 to operate continuously throughout long workdays.
Smart Management
The PROFI software control system, which operates via a BUS connection, controls the entire work process fully automatically. The operator’s task is to monitor the machine’s operation.
Quick commute to work
Thanks to its chassis, which allows speeds of up to 80 km/h, work sites can be reached quickly whether towed by a tractor or transported by truck. The VARIO-Master V140 has EU type approval for road use.
High quality and efficient work
- Crushed corn, crushed grains, sugar beet slices/cake, and various herbs are pressed into rolls.
- The feed remains of exceptional quality all year round, fresh, and suitable for use in both winter and summer.
- Extremely fast air removal, ideal preservation, no risk of secondary fermentation or heating.
- Ideally clean production work, completely uncontaminated feed.
- Rolls are very convenient for daily animal feeding - feed is delivered quickly and easily.
- The size of one roll is from 0.6 to 1.15 mx 1.20 m, weight up to 1100 kg.

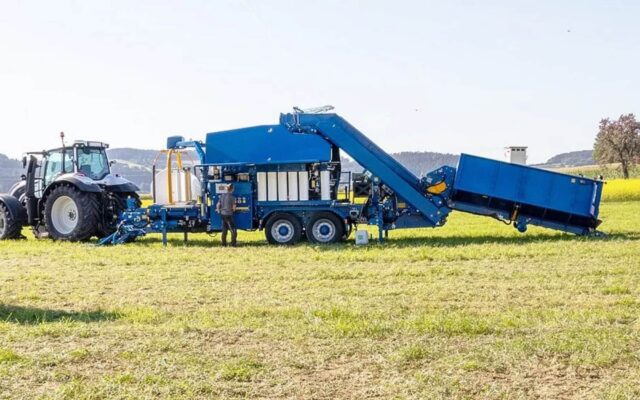

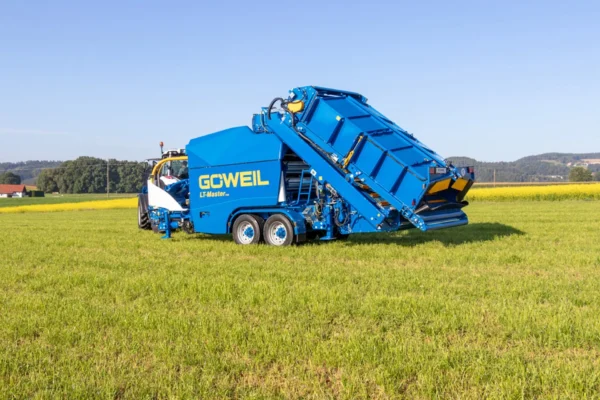

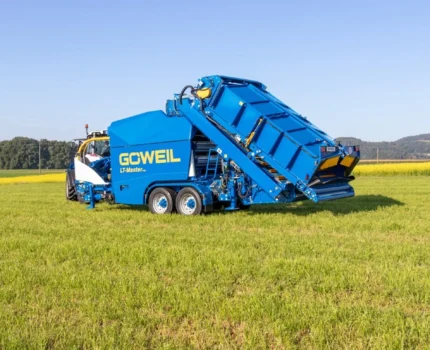

One of the most important LT-Master F115 Advantages – extremely quick setup, taking just about 3 minutes. This is particularly relevant for service providers who have to change their work location several times a day. The machine is being prepared for operation fully hydraulically, so with just a few simple steps LT-Master F115 It can be quickly set up for use in a new location. Thanks to well-thought-out design solutions and conveniently arranged components, daily preparation and maintenance tasks can be performed quickly and easily:
Low profile design Low-profile design and 3.50 m The wide-feed hopper ensures quick and convenient filling. Material can be loaded using a dump truck, a push-type trailer, or a truck, or it can be delivered directly. Chain-type bottom conveyor The speed of the chain-bottom conveyor automatically adjusts to the amount of material being fed. The elevator and the feeding system use Rübig Galvanized, stamped chains are characterized by exceptional strength and durability. High-capacity Multicrop feed hopper Multicrop The capacity of the feed hopper is approximately 13 m³, thus ensuring uninterrupted LT-Master F115 it works even when loading material at high intensity. To ensure the efficient processing of various materials, the hopper is equipped with dosing drum. Together with the feed screws, it ensures a steady flow of material into the elevator and the efficient processing of fibrous materials, such as grass or alfalfa.

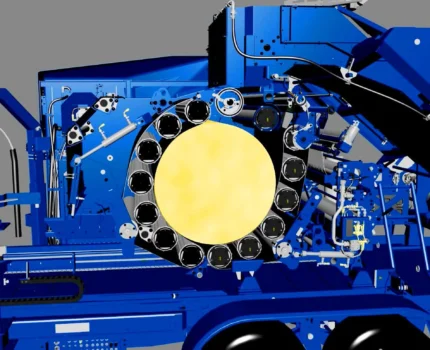

Hydraulically driven roll chamber Hydraulic Drive for the Roll Chamber ensures smoother operation for the technician and helps reduce the noise emitted by the baler-wrapper. In addition, the hydraulic drive allows you to select separately 4 compression and 4 binding speed levels. This allows the machine's operation to be more precisely adapted to different materials and working conditions, while saving time and energy. Wrapping with netting or plastic film To maintain high roll quality, a reliable binding system is essential. As standard, LT-Master F155 supplied with dual-strap system, which allows the use of both network, both film. High bulk density 4 mm The thick-walled steel rollers are reinforced from the inside, and their special profile ensures high roll density and reliable rotation during pressing. Water Injection System The water injection system allows water to be mixed into the dry material during the pressing process. Return Lane The entire machine is equipped with return tape It collects the material that spills out during the pressing process and returns it to the inclined conveyor. This reduces material loss and prevents contamination. Long service life Large bearings and a precisely calibrated central lubrication system ensure reliable operation, reduced component wear, and a long service life for the machine. Fixed-roll camera Both parts of the roller chamber are surrounded by camera tape, which helps reduce losses of the material being pressed. The belt tension is adjusted hydraulically, thereby ensuring Reliable initiation of roll formation and smooth ejection of the formed roll from the chamber. Adjustable roll size This feature allows you to Continuously adjust the roll diameter from 0.60 to 1.15 m without steps.
Moving wrapping table The winding table moves under the pressing chamber and picks up the rolls directly from it. This ensures fast, gentle, and reliable transfer of the rolls to the winding zone. Double-wrap handle Installed as standard double-wrap handle with 2 × 750 mm Stretch film dispensers ensure high productivity. Patented plastic rollers allow for more efficient use of the film and enable more rolls to be wrapped with a single roll of film. Film-cutting mechanism The stainless steel blade ensures precise film cutting. The standard floating cutting mechanism allows the film to peel off easily, leaving no film residue stuck behind. Film Control System and Single-Film Mode If a roll of film runs out or the film breaks, the wrapping table automatically reduces the rotation speed until 50 % film overlap. The roll is then wound continuously without stopping. If it ends or is interrupted both rolls of film, the film control system automatically stops the wrapping process. Roll-off ramp The hydraulically lowered roll unloading ramp allows the wrapped roll to be gently placed on the ground and protects it from damage.
LT-Master F115 operated using PROFI plus L terminal. The intuitive user interface makes it easy and convenient to operate the machine. The screen displays the entire workflow and machine settings. Via the terminal USB connector You can easily upload language settings and customer logos to the weighing system using a label printer. Customer accounting data can be exported in CSV format. Regarding the ability to compress and wrap various loose materials VARIO-Master V140 It can be adapted for various tasks on the farm. Different harvest periods allow the machine to be used efficiently year-round, ensuring maximum productivity and utilization of the equipment. Corn Corn silage is made from the entire corn plant and is one of the most important feeds for high-yielding dairy and beef cattle. It is rich in energy, provided by the starch in the chopped corn kernels, as well as in fiber, which is essential for a balanced animal diet. As a result, corn silage provides excellent conditions for high milk yield and good fattening results. When the temperature is higher than 15 °C Depending on the temperature, the quality of the feed can deteriorate rapidly due to intense microbial activity. LT-Master F115 It ensures extremely high compaction of the material, which quickly removes air from the bale and creates optimal conditions for fermentation. This helps maintain the highest feed quality and ensures excellent shelf life. Corn cereal This is an excellent high-energy feed made from corn cobs and kernels. It is used to feed pigs, cattle, and other small ruminants. This type of silage has an exceptionally high energy value due to its high starch content and, compared to traditional concentrated feeds, offers a very good cost-benefit ratio. Crushed corn kernels give the feed more texture, making it easy for livestock to pick up and eat. Thanks to their compact roll shape, corn grain silage rolls are convenient to transport, store, and use when feeding in smaller quantities. Lucerne Along with corn silage, alfalfa silage is one of the most important staple feeds in cattle nutrition. High feed intake and particularly high structural efficiency contribute to higher milk yield. Growing alfalfa ensures a stable yield and improves soil quality. However, due to its low sugar content, it is difficult to preserve alfalfa using traditional methods. When baling it into bales with LT-Master F115, the quality of the silage improves significantly due to rapid, airtight sealing and effective compaction. Sugar beet pulp Sugar beet pulp silage has a very high energy value, is easily digestible, and is highly palatable to livestock. It is an excellent supplement to grass silage because, due to its negative nitrogen balance in the rumen, it helps balance the protein content in the diet. Sugar beet pulp silage contains little lactic acid, so its overall acidity is also low. To produce high-quality silage, it is particularly important to ensure high compaction and clean baling while the pulp is still warm. LT-Master F115 Rolls cool down faster, so they can be used for feeding sooner. Grass Grass silage is one of the most important staple feeds for cattle. The feed is produced from optimal grasses, grasses and clover mixture. Grasses with a high sugar content ensure a good fermentation process. When using LT-Master F115, thanks to the high density of the bales, even grasses with a higher cellulose content can be optimally compressed. Wood / wood chips Whether it's wood shavings, wood wool, bark mulch, wood chips whether pellets – LT-Master F115 can compress all of these materials into compact rolls. This makes transportation easier and helps save valuable storage space. The rolls can be transported by tractor, stacked on top of each other, or placed on pallets. The material, compressed into a roll, remains clean and dry. Complete feed mixture This is a balanced mixture of roughage and concentrate. The dry matter and energy content are precisely balanced, so rations made from this mixture have a positive effect on milk yield and animal health. To prepare the mixture for storage, the already fermented silage is mixed and preserved again. LT-Master F115 It allows you to prepare feed mixes quickly, easily, and cost-effectively. The rolls are easy to transport, making this an excellent solution for the feed trade as well. Cereal cereal This is silage made from the entire grain plant. The most commonly used types are barley, wheat, or triticale. Growing these crops ensures a stable yield and offers additional benefits when planning crop rotation. However, due to its relatively low energy content and the greater difficulty of preserving it using traditional methods, it is not easy to prepare silage from cereal grains. LT-Master F115 ensures optimal compaction of the material and rapid, airtight sealing, making it easy and reliable to produce high-quality silage. Other materials The LT-Master F115 can be used not only for animal feed but also for compressing various other bulk and organic materials, such as:
Preparation for Work
Feeding System and Dosing Characteristics
Features of the Pressing System
Features of the Wrapper
Control system
What can be pressed?
Standard equipment
- Double-wrap handle.
- Hydraulically driven roll chamber designed for rolls with a diameter of 115 cm.
- Integrated hydraulic system with an oil cooler.
- A return belt that protects against potential material loss.
- Integrated „Multicrop“ feed hopper: working width – 3.50 m.
- Hydraulically operated winding table.
- A 4-roller conveyor belt with belt guides and 2-roller guide rollers.
- Unloading rolls forward via a hydraulic unloading ramp.
- Height-adjustable backrest.
Dual-fastening system for netting and film
LT-Master F115 It comes standard with a combined double-fastening system. You can insert two rolls of netting or plastic sheeting, as well as using them in combination.
- 500 mm and 750 mm stretch film dispensers with adjustable film overlap.
- Linear film cutter.
- Film Monitoring System.
- Single-film mode.
- Tandem chassis with a trailer hitch and 385/55 R22.5 tires.
- Hydraulically lowerable film dispenser for up to 18 rolls of film.
- LED work lights.
- Dual-circuit pneumatic brake system.
- Fully automatic central oil and lubricant lubrication system.
- Fully automatic PROFI software control: all work cycles are performed fully automatically.
Camera system
Camera system with with four infrared cameras ensures excellent visibility of the entire work process and the area around the machine, both day and night.
The cameras are positioned so that the operator has a clear view of:
- the top of the compression chamber,
- elevators,
- a rolling table,
- the rear of the vehicle (on the right side when traveling in the direction of travel).
This helps improve workplace safety, allows for more precise monitoring of the process, and ensures more convenient machine control.

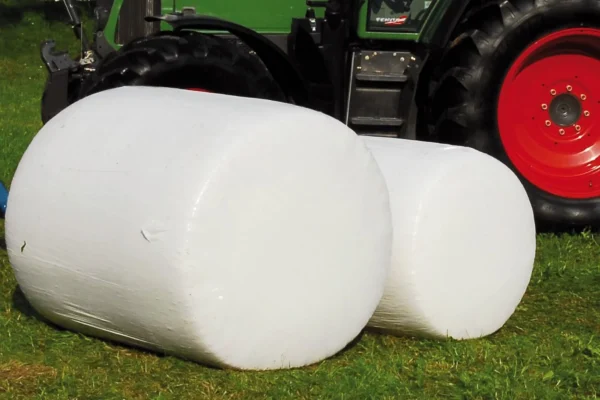

Adjustable roll size
This feature allows you to optimally adjust the size of the round bale to the required amount of feed. The diameter of the roll can be adjusted continuously from 0.60 to 1.15 m.
This is only possible by wrapping it in plastic wrap.
Water Injection System for the Pressing Chamber
The proper dry matter and moisture content of the material is crucial for achieving high compaction and high-quality bales. When baling very dry material, water can be fed directly into the baling chamber using water injection system.
The system consists of:
- solenoid valve,
- pipeline,
- adjustable nozzles.
Remote control for unloading a roll
Compact remote control allows for remote control of the unloading of a wrapped bale. Thanks to its convenient and compact design, the operator can always keep the remote control with them and initiate bale unloading at any time.
The electric drive operates via cardan shaft, so the machine can be used with a tractor at any time if necessary. The electric motor operates quietly, and operating costs are significantly lower than when using a tractor, which requires more fuel. This solution not only reduces operating costs but also allows the equipment to be used indoors, as there are no exhaust fumes. The protective cover also makes it convenient to use the electric drive outdoors, even when –15 °C to +60 °C ambient temperature. The electric drive requires minimal maintenance, and its base, which features forklift-liftable openings, makes it easy to transport. In addition, the drive is equipped with Soft Starter A module that significantly reduces inrush current spikes and starting torque. This helps save electricity and protects the drive, shafts, and transmission from additional loads. Technical Specifications
The system consists of weighing table, weighing terminal, and label printer with GÖWEIL logo or the client's logo. Four weighing cells are integrated directly into the wrapping table, and the display is mounted on the control panel. The wrapped rolls are weighed automatically, so the work process is not slowed down. Rolls can be weighed individually or analyzed as a whole batch. All settings can be easily configured on the terminal. The label printer displays information about the roll’s weight, date, time, and the uploaded logo. If labels are not needed, this feature can be disabled on the terminal. Adhesive labels and marking tapes are standard products available at specialty stores. The weighing system can also be installed on machines that are already in use. Unlike the uncalibrated version, calibrated weighing system It is certified for precision weighing and can be used in situations where official weight data is required in accordance with applicable metrological requirements. Integrated into the roll unloading ramp roll tilting mechanism allows you to gently place the roll on left or right side. When this feature is turned off, the roll moves forward as usual. Storing rolls placed on their ends, they can be removed more quickly and safely; moreover, this helps preserve the roll's shape and the film's integrity. Several key factors are important for producing high-quality silage:
If not all of these factors are optimal (for example, due to unfavorable weather conditions), silage additives helps improve silage quality, reduces the risk of improper fermentation, and prevents the feed from spoiling later on. Using self-priming pump with a filter and an electronic flow meter, silo feed-in via two stainless steel nozzles It is fed directly into the compression chamber. This ensures that the additive is evenly distributed throughout the material being compressed. The dosing system is ideal for both for lactic acid bacteria preparations, both low-corrosivity acidic silage additives. Note: The liquid additive container is not included in the package. Important: After each workday, the silage additive dosing system must be rinsed with water. The package includes
450 liters containers stainless steel container It is mounted directly on the machine and ensures that it is completely emptied. This allows for the efficient use of the entire silo load, reduces residue in the hopper, and makes it easier to clean the system after use.
Electric drive
Uncalibrated weighing system
Calibrated weighing system
Roll Unloading Ramp with Roll Tilting Mechanism
Silo Additive Dosing System
Silo Additive Storage Tank
Other optional equipment
| LT-Master GOWEIL | |
|---|---|
| Weight, kg | 14 800 |
| Roll diameter, m | 0.6–1.15 |
| Oil requirement (for swivel spindle), l/min / bar | 10 / 200 |
| Required tractor power, starting at kW/AG | 90 / 120 |
| TRANSPORTATION POSITION | |
| Length, mm | 11 850 |
| Width, mm | 2 550 |
| Height, mm | 4 000 |
| WORKING SITUATION | |
| Length, mm | 14 170 |
| Maximum width, mm | 6 130 |
| Maximum height, mm | 3 940 |
Over the past few decades, since 1988, GOWEIL has established itself in the market as a specialist in the production of hay bale wrappers.
Because the company GOWEIL Maschinenbau GmbH exports the majority of its production – the 86% – and the machines are known and widely used all over the world. All machines and equipment are designed, developed and manufactured exclusively at the company's headquarters in Kirchschlag (Upper Austria).
All GOWEIL The products reflect the latest technologies and are designed to meet the individual needs of farms.
