In a single pass, it combines the advantages of disc and tine mowers
Triton combination tiller Combines the advantages of disc and tine cultivators in one pass
Full-tillage with loosening to a depth of 35 cm.
- Working width 3 to 6 metres.
- Suitable for use with from 200 hp power technology.
- 510 / 560 mm diameter discs arranged in two rows, with 24 cm between discs and 85 cm between rows of discs.
- Disc working depth from 0 to 12 cm.
- Forks arranged in two rows, with 42 cm tine spacing and 172-219 cm tine spacing.
- Working depth of the tines 3 to 35 cm.
What Makes FARMET Triton Unique
Hydraulic adjustment of working sections
The Triton combination cultivator features hydraulic adjustment of the main working sections directly from the tractor cab. The disc harrow section and levelling discs can be adjusted during operation, allowing the operator to quickly adapt to changing soil conditions, the amount of crop residue, or the desired tillage intensity.

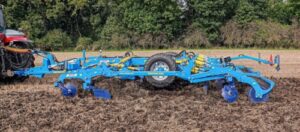

Stubble plowing and deep tillage
The cultivator stands out because it combines shallow stubble cultivation with deeper plow-like loosening in a single pass. The front section with two rows of discs effectively cuts, distributes, and incorporates plant residues into the topsoil, while the tines simultaneously till deeper layers to a depth of 35 cm and help improve water infiltration into the soil.

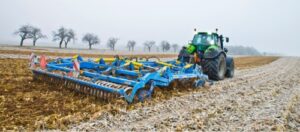

Wide choice of security systems
The machine can be equipped with different durable and maintenance-free tine protection systems, so it can be adapted to different soil conditions. With a release force of up to 600 kg, the guard systems help protect the working units from overloading and ensure reliable operation even on heavier or stony soils.

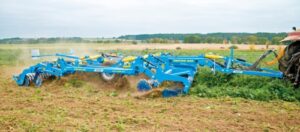

3-year warranty
All Farmet equipment comes with a 3-year warranty. The company pays particular attention to the high quality and reliability of its machinery. This commitment reflects the company's long-standing philosophy based on precision machining, durability and long service life.

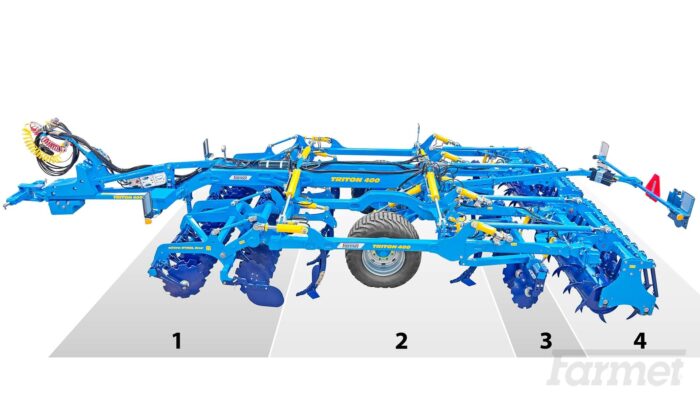

Working areas

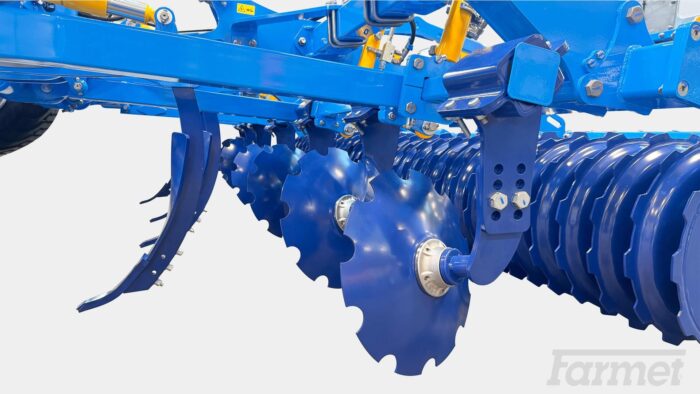

- Full-area cut-back zone. The aggressive geometry of the two-row disc section ensures excellent full-area cutting at a depth of 0-12 cm with intensive mixing of crop residues. The disc section spreads the crop residues over the full area.

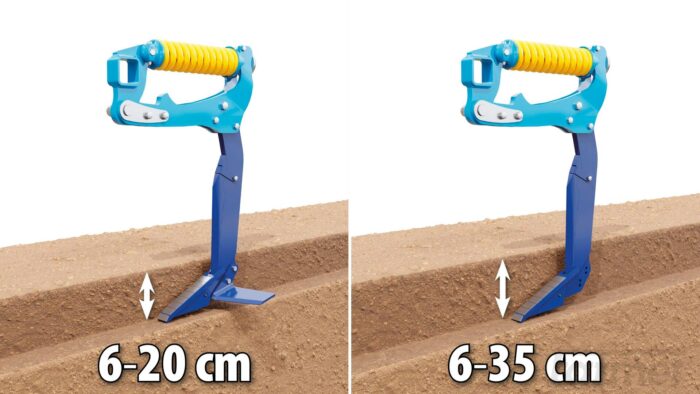

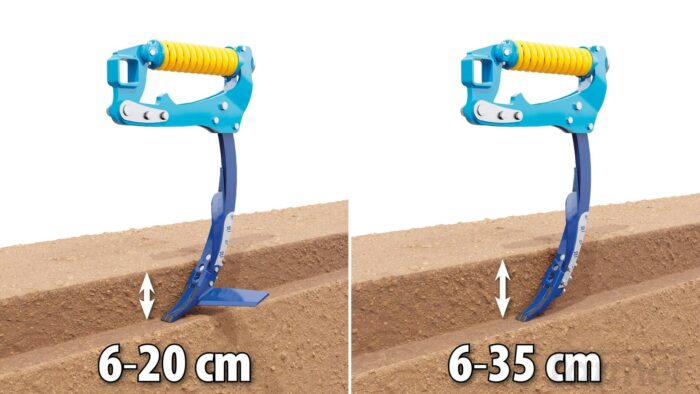

- Shake zone. Wide choice of working depths from 3 to 35 cm. The side wing coulter for full stubble cultivation is used for soil loosening from 6 to 20 cm. The optimised geometry of the tines, arranged in two rows, ensures deep loosening of the area, increasing water penetration.
- Surface levelling zone. The levelling discs also improve the insertion of crop residues.
- Crushing and compaction zone. Optimal soil compaction ensures good water penetration and moisture retention.
High quality and efficient work
- The perfect solution for heavy soils.
- Relatively low resistance.
- High permeability of soil and plant residues.
- Efficient shaving and incorporation of crop residues into the cultivated soil layer.
- Deep zonal tillage with minimal clod formation.
Deep zonal loosening with partial mixing The optimised geometry of the tines ensures deep zonal loosening, improving water absorption into the soil. Ploughing without mixing soil layers The No-Mix Tine is ideal for breaking up compacted soil layers and restoring water absorption in waterlogged fields without actively mixing the soil layers.
Spring guard with one spring, release force 450 kg. Spring guard with two springs, release force 550 kg. Hydraulic protection, release force 600 kg.
Extra durability of working parts To further extend the service life, the upper part of the tine can be additionally reinforced with sintered carbide plates or hardfacing. Leveling disc protection Durable and maintenance-free protection for leveling discs. Quick-attach roller system Easy removal and installation of rear rollers – it is possible to work without rear rollers.
Setting the working depth Easy adjustment of working depth using adjustment washers. Adjusting the working depth of the tines Easy adjustment of the working depth of the tines on the rollers using adjustment washers. Positioning the disc rows Easy adjustment of the front and rear disc row positions. When the front row is set lower than the rear row, cultivation becomes more aggressive. Hydraulic adjustment of levelling discs Quick and precise adjustment of the levelling discs directly from the tractor cab helps to increase work efficiency. Easy adjustment of external ironing discs The side levelling discs are easily adjustable with a pin, ensuring a precise connection between individual passes.
Triton 300 PS
Triton 400 PS
Triton 450 PS
Triton 600 PS
Two types of tillage
Durable and maintenance-free tine guard options with high release force
Sturdy construction
Easy to use
Minimal number of adjustable and lubricated points, so maintenance is extremely easy.
Examples of Triton Combination Cultivator packages
75 MULTICARBIDE PRO Chisel width: 75 mm 75 MULTICARBIDE Chisel width: 75 mm 75 CARBIDE Chisel width: 75 mm 55 CARBIDE for loosening without mixing. Chisel width: 55 mm 40 CARBID Chisel width: 40 mm DURA+ disc Ø 510 mm DURA+ disc Ø 560 mm Shortened lever Left ironing board Right-hand ironing board Left ironing board with deflector Right-hand ironing board with deflector
Double ring roller DRR Diameter – 680/680 mm Roller LTX Diameter – 586 mm Disc roller SDR Diameter – 580 mm Double studded roller DSR Diameter – 760/570 mm V-shaped VR roller Diameter – 600 mm Double V-shaped annular roller DVR Diameter – 680/680 mm The right type of rear roller has a significant impact on the final quality of soil cultivation. The roller compacts the soil, while simultaneously crumbling and leveling it. The type of roller is selected depending on the type of soil and the nature of the machine's use.
Eyelet for lower hitch Ø 50 mm, Ø 70 mm K80 Ø 80 mm Pin set for TPH category 4 hitch

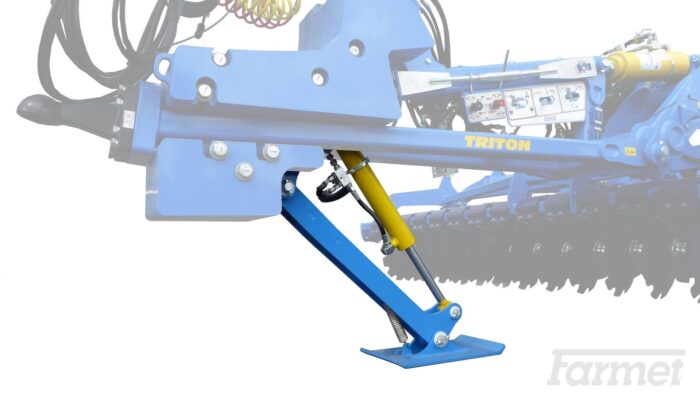

Hydraulic support leg Electro-hydraulic flow distributor Divides one tractor hydraulic circuit into three separate circuits. Micro Drill small seed drill
Working tools
Chisel hardness: up to 55 HRC
Widia plate strength: Up to 92 HRA
Service life: +200-500 %
Chisel hardness: up to 55 HRC
Widia plate strength: Up to 92 HRA
Service life: +150-400 %
Chisel thickness: 15 mm
Chisel strength: up to 55 HRC
Carbide plate strength: up to 92 HRA
Usage time: +100-200%
Chisel thickness: 20 mm
Chisel strength: up to 55 HRC
Carbide plate strength: Up to 92 HRA
Usage time: +100-200 %
Fuel consumption: -10 %
Chisel thickness: 25 mm
Chisel strength: up to 55 HRC
Carbide plate strength: Up to 92 HRA
Usage time: +100-200 %
Fuel consumption: -10 %
Rollers
Weight – 340 kg/m
Weight – 200 kg/m
Weight – 220 kg/m
Weight – 185 kg/m
Weight – 175 kg/m
Weight – 290 kg/m
Double ring DRR roller LTX roller SDR disc roller Double studded roller DSR V-shaped VR roller Double roller DVR
Crushing ●●●○ ●●●○ ●●●○ ●●○○ ●●●○ ●●●○
Compaction ●●●● ●●●● ●●●● ●●●○ ●●●● ●●●●
Depth support ●●●● ●●●● ●●○○ ●●●● ●●○○ ●●○○
Resistance to clogging ●●●● ●●●○ ●●●● ●●●● ●●●○ ●●●○
Suitability for rocky soils ●●●○ ●●●○ ●●●○ ●●●○ ●●●○ ●●●○
Suitability for wet soils ●●●● ●●●● ●●●● ●●●● ●●●● ●●●●
Suitability for heavy soils ●●●● ●●●● ●●●● ●●●● ●●●● ●●●●
Suitability for medium soils ●●●● ●●●● ●●●● ●●●● ●●●● ●●●●
Suitability for light soils ●●●● ●●○○ ●●●○ ●●●○ ●●●○ ●●●○
Towing
Other optional equipment
| Triton 300 P | Triton 400 PS | Triton 450 PS | Triton 600 PS | |
|---|---|---|---|---|
| Working width, mm | 3 000 | 4 000 | 4 500 | 6 000 |
| Transport width, mm | 3 000 | 3 000 | 3 000 | 3 000 |
| Transport height, mm | 1 800 | 3 050 | 3 370 | 3 950 |
| Total length, mm | 9 450 | 9 500 | 9 500 | 9 550 |
| Working depth, mm | 30─350 | 30─350 | 30─350 | 30─350 |
| Tines, pcs. | 7 | 9 | 11 | 15 |
| Discs, pcs. | 22 | 34 | 38 | 50 |
| Disc diameter, mm | 510 / 560 | 510 / 560 | 510 / 560 | 510 / 560 |
| Number of tine rows, pcs. | 2 | 2 | 2 | 2 |
| Distance between tines, mm | 420 | 420 | 420 | 420 |
| Distance between tine rows, mm | 1 720 | 2 140 | 2 140 | 2 190 |
| Rows of discs, pcs. | 2 | 2 | 2 | 2 |
| Distance between discs, mm | 240 | 240 | 240 | 240 |
| Distance between disc rows, mm | 850 | 850 | 850 | 850 |
| Fork pressure force, kg | 450 / 550 / 600 | 450 / 550 / 600 | 450 / 550 / 600 | 450 / 550 / 600 |
| Frame clearance, mm | 880 | 880 | 880 | 880 |
| Diameter of leveling discs, mm | 460 | 460 | 460 | 460 |
| Productivity, ha/hour | 2.2─3.4 | 3.2─4.8 | 3.6─5.4 | 4.8─7.2 |
| Tractor power, kW/HP | 150─235 200─315 | 185─290 245─370 | 225─350 300─450 | 350─460 450─600 |
| Working speed, km/h | 8─12 | 8─12 | 8─12 | 8─12 |
| Maximum working slope, ° | 6 | 6 | 6 | 6 |
| Tire dimensions for transportation | 19.0/45-17 | 550/45-22,5 | 550/45-22,5 | 550/45-22,5 |
| Brakes | air / dual-circuit | air / dual-circuit | air / dual-circuit | air / dual-circuit |
| Required pressure, kPa | 5,5 | 5,5 | 5,5 | 5,5 |
| Hydraulic connections/pressure, bar | 4 / 200 | 5 / 200 | 5 / 200 | 5 / 200 |
| Number/type of hydraulic connection pairs | 8 / ISO 12.5 | 10 / ISO 12.5 | 10 / ISO 12.5 | 10 / ISO 12.5 |
| Towing | TPH category 3; bottom hitch K80; eyes Ø 50, 70 mm | TPH category 3; bottom hitch K80; eyes Ø 50, 70 mm | TPH category 3; bottom hitch K80; eyes Ø 50, 70 mm | TPH category 3; bottom hitch K80; eyes Ø 50, 70 mm |
| Weight, kg | 4 700 | 7 300 | 8 100 | 10 200 |
