Strautmann Super-Vitesse Pick-up trailer

Strautmann Super-Vitesse Pick-up Trailer – Operation

Super-Vitesse self-loading trailers

Reliable 29 and 33 m³ collection trailers with CFS continuous flow system and 39 mm cutting size

For a purchase offer, please fill in the enquiry form or contact the following contacts:

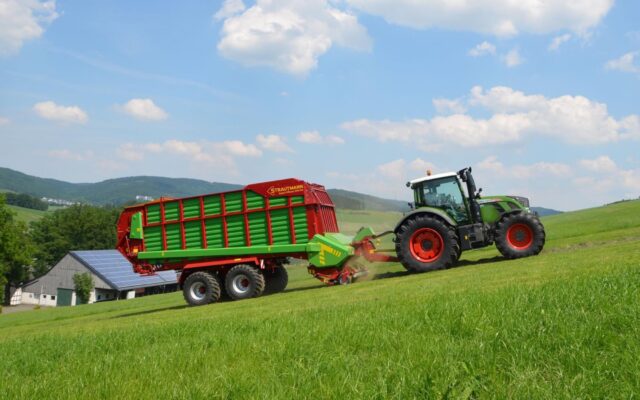

Super-Vitesse – extremely simple and effective

Extremely low resistance thanks to the unique Continuous Flow System (CFS).

Super Speed The series of forage trailers is an efficient and versatile solution for harvesting forage. The Continuous Flow System (CFS) allows medium-sized farms with their own equipment to harvest forage efficiently and ensure the highest silage quality—even when using lower-horsepower tractors.

Thanks to its robust and versatile design, this machine is also ideal as a vehicle during harvest.

Unique Features of STRAUTMANN Super-Vitesse Harvest Trailers

Unique Continuous Flow System (CFS)

The unique Continuous Flow System (CFS) ensures a smooth flow of forage from the pick-up to the cutting unit. Optimal operation of all components reduces power requirements, saves fuel, and achieves high productivity.

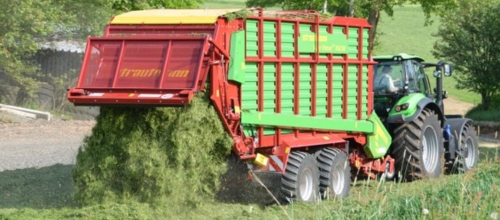

An extremely short 39-mm cut

The Exact-Cut cutting unit with 39 blades ensures a uniform 39 mm cut. Double-edged blades, tool-free blade replacement, and a hydraulically retractable blade bar allow for quick maintenance.

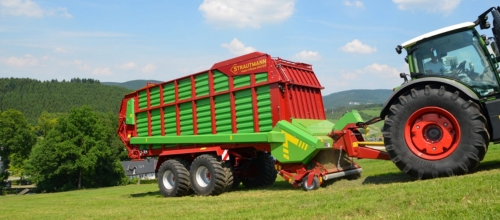

6-row spiral rotor

The six-row spiral feed rotor ensures constant torque without load spikes. This helps conserve feed, reduce transmission loads, and ensure smooth operation even at high throughput.

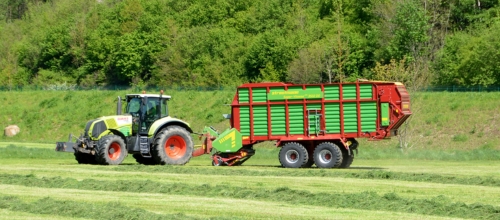

A loader and transport trailer in one

The sturdy, modular body design allows the Super-Vitesse to be used not only for harvesting grass but also as a versatile transport trailer. This increases the machine’s versatility throughout the season.

Key Benefits

Loading capacity: 29 and 33 m³
39 mm cutting size
Continuous Flow System CFS
Does not require a powerful tractor
Powerful spiral rotor with welded finger plates
Robust and versatile design
Precise chopping with 39-blade Exact-Cut cutting system

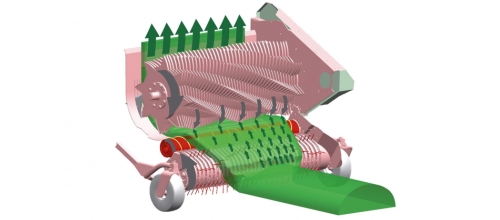

Efficient loading with the Continuous Flow System CFS

Due to the smooth operation of various components continuous flow system CFS ensures excellent picking performance, requiring minimal power. The collector, flow roller, rotor and Exact-Cut cutting system are perfectly matched and complement each other.

The result is not only excellent chopping quality, but alsoengvas trailer towing, allowing you to save power, time and money.

1. Cutting system and rotor:

Precise grinding for perfect compatibility.
The finger plates welded to the rotor ensure a smooth and precise cut.
The small distance between the rotor fingers and the blades ensures extremely precise shredding with minimal power consumption.

2. Pick-up: gentle grass collection and even swath distribution

A simple, lever-less mechanism.
Plastic dividers.
1.8 m working width.
Six rows of tines arranged in a V-shape distribute the grass evenly.
To accommodate the additional flow, the reel is positioned very flat—allowing it to adapt perfectly to the ground surface.
The steerable wheels on the harvester ensure flexible adaptation to the terrain.

3. Optimal filling across the entire width:

Reduced power requirements due to the rotor mounted higher up and the shortened transport channel.
The material is fed into the cargo area across its entire width.
Maximum and uniform compaction means more weight per cubic meter.

4. Flow roller: spreading material and fast filling

Faster charging with lower power consumption
The flow roller distributes the feed material through a special, welded layer
The material is evenly transferred to the rotor across the entire working width
Material acceleration ensures a continuous, uniform flow
Always uniform material supply from the gripper to the rotor
Feed does not accumulate or get stuck

Flexible loading – saves time and energy

The Flex-Load pick-up is designed based on Strautmann’s many years of experience. Its innovative plastic tines ensure exceptional wear resistance, adapt precisely to the terrain, and cleanly collect feed from the swath. Reduced wear leads to lower maintenance and operating costs.

Key Benefits

More durable pick-up fingers.
Less wear and tear and lower operating costs.
The picker's fingers can be replaced in less than a minute.
Accurate relief copying.
The soil surface is protected.
Cleaner feed, fewer impurities.

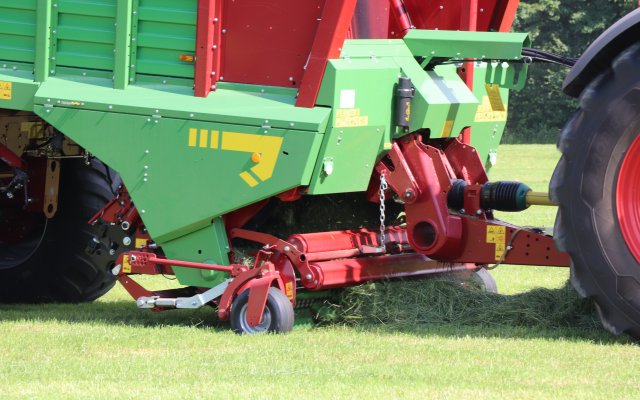

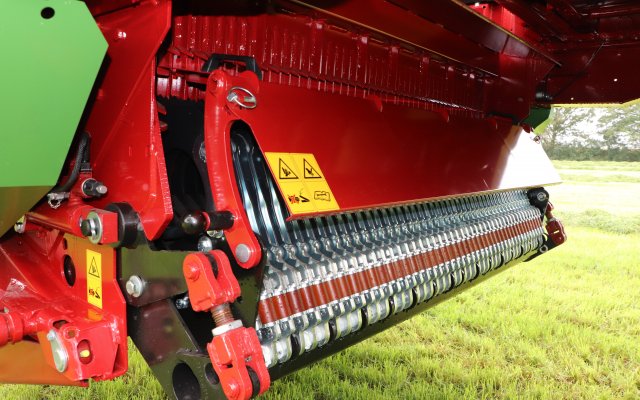

Wide collector

The low-mounted collector adapts precisely to the terrain.
The maintenance-free design, with few moving parts, ensures less wear and tear.
When driving on roads, there is no need to fold down the support wheels.
The double pressure roller ensures a consistent feed supply.

Strautmann-collector-trailer-Super-Vitesse

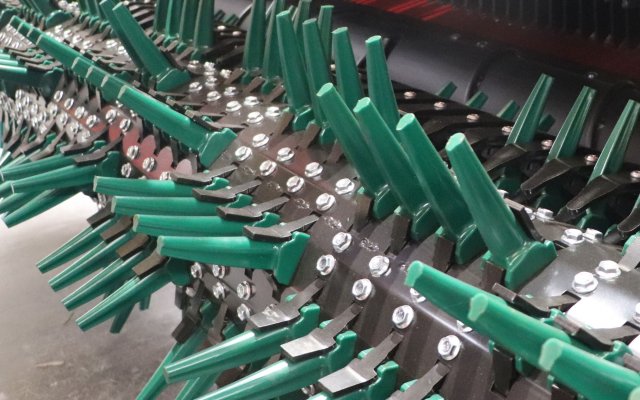

Flexible plastic pick-up fingers

Plastic pick-up fingers made of a special PUR compound.
Six rows of segmented fingers arranged in a spiral.
They are flexible in all directions, so they conform precisely to the terrain.
It prevents fingers from sinking into the soil, so the feed stays cleaner.
Extremely low wear and tear and minimal risk of finger fractures.
Fingers can be replaced in less than 1 minute using just one tool.

Rotor and cutting unit

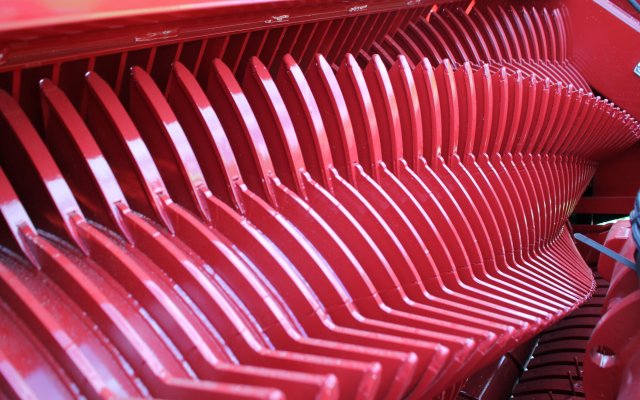

A powerful and feed-efficient rotor

A six-row feed rotor.
Teeth arranged in a spiral pattern.
Constant torque without load fluctuations.
Smooth and gentle feed transport.

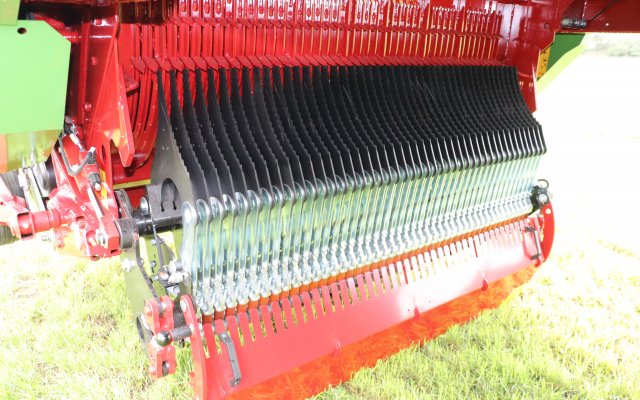

An extremely short 39-mm cut

39 knives Exact-Cut mower.
39 mm cut.
Double-edged knives are used on both sides.
Tool-free blade replacement.
Hydraulically retractable blade bar.

Precisely designed for high-quality cutting

The sprockets and rotor teeth are arranged at an optimal angle.
Precise cutting, reduced feed consumption, and lower energy costs.
The plates welded onto the teeth ensure consistent cutting quality.
The reinforced plates are highly resistant to wear.

Robust body structure

All-steel body.
The reinforced sidewall struts ensure excellent stability.
Optional body mounts with tie-down straps for secure cargo fastening.

Strautmann-Super-Vitesse-Selective-trailer

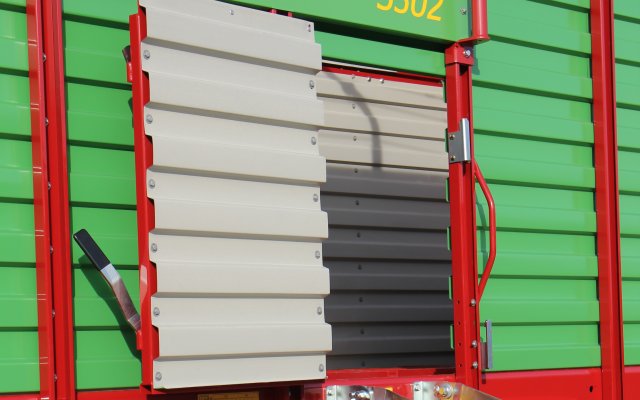

Convenient access

Convenient access door.
Folding ladder.
Galvanized ladders – built to last.

Optimal fill level

The cargo safety bars prevent the feed from spilling out.
Optional automatic loading system.
You can set the desired fill level in advance.
When the feed presses against the sensors, the conveyor belt automatically turns on.

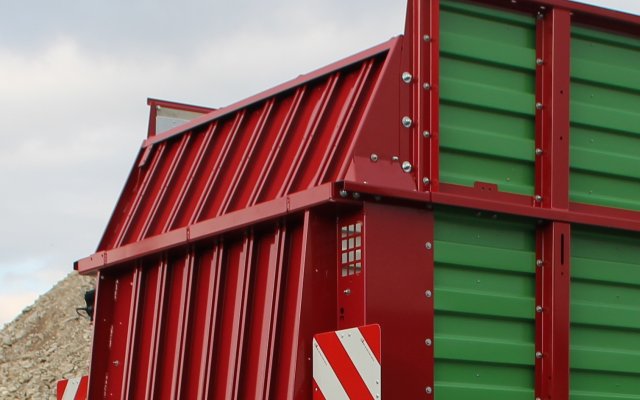

Practical front grille

The front grille folds inward.
Standard: manual control; optional: hydraulic.
A low unloading edge for convenient unloading of feed.

Sturdy back cover

It opens wide, ensuring quick unloading.
Integrated pressure switch for the fill-level indicator—for trailers without a metering device.

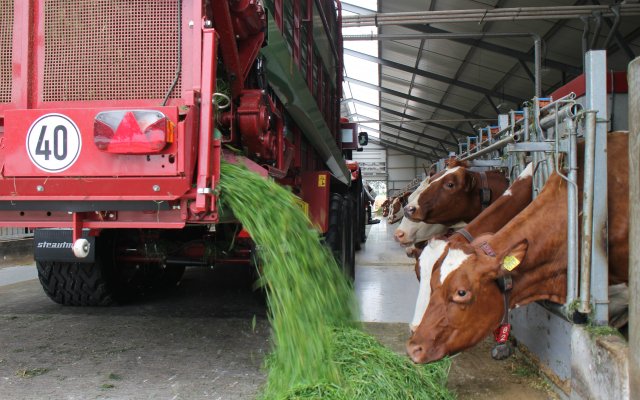

Efficient Dosing System

Standard two-drum dosing unit.
Aggressive tearing teeth for effective material breakdown.
Once the trailer is full, the lower drum moves backward.
The sensor automatically stops the movement of the conveyor floor and protects the dosing unit from overload.

Unloading fresh grass using a cross-conveyor

An optional cross conveyor is installed behind the dosing drums.
Convenient unloading of fresh grass.
Easy and quick to remove.

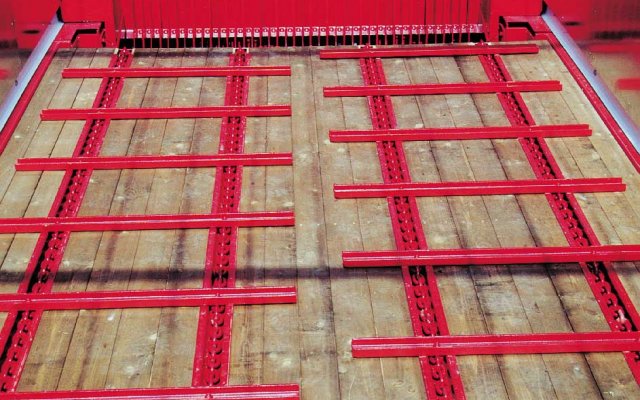

Reliable transport base

Consistent feed delivery.
10 mm thick, high-strength round steel chains.
The breaking load of each chain is 13 metric tons.
Screw-on U-shaped profile strips.

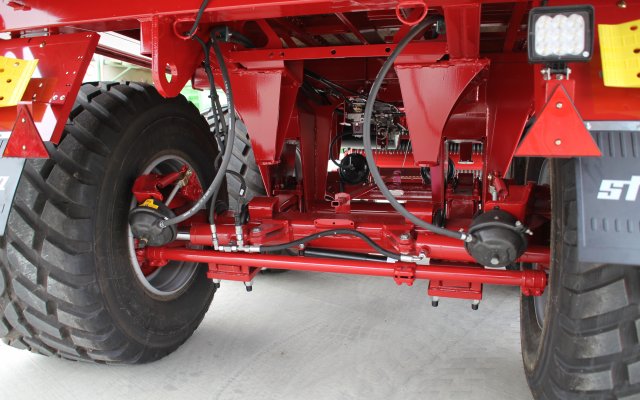

Reliable „boogie“-type tandem undercarriage

„Boogie“-type tandem undercarriage.
Parabolic suspension for a smooth ride.
Maximum axle load – up to 16 metric tons.
Optional 18-ton chassis

Passively Driven Axle

Optional configuration.
Reduces tire friction against the road surface when turning.
Less tire wear.
It protects the soil surface.

Electronic Forced Steering System

Optional configuration.
SES („Strautmann Electronic Steering“) ensures excellent driving stability.
The steering angle is automatically adjusted based on driving speed.
Excellent maneuverability.

E-Control Management System

Convenient control of hydraulic functions using lever switches.
Speed control of the conveyor belt using a rotary knob.

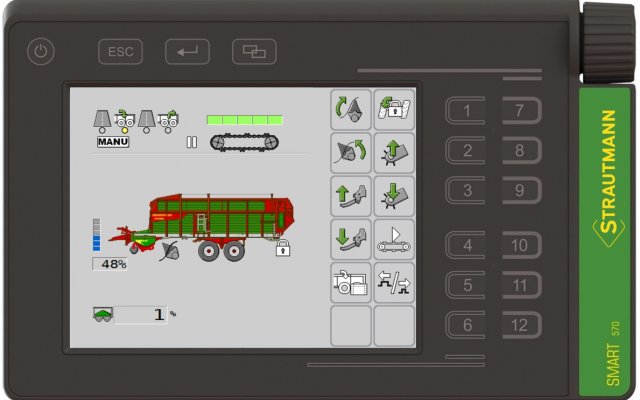

ISOBUS control

Optional configuration.
Control via the tractor's ISOBUS terminal.
An optional control terminal mounted on the right side.
A wide range of automatic features ensures intuitive and convenient operation.

	Super-Vitesse 3102	Super-Vitesse 3502
Loading capacity according to DIN 11741, m³	29	33
Loading capacity with medium compression, m³	50,8	57,8
Power requirement, kW/HP	88 / 120	96 / 130
Total length, m	8,80 / 9,40	9,60 / 10,25
Width between the outer wheel centers (16-metric-ton chassis, 620/40 R 22.5 tires), m	2,72	2,72
Width between the outer wheel centers (18-metric-ton chassis, 710/45 R 22.5 tires), m	2,81	2,81
Chassis height (16 t, 620/40 R22.5 tires), m	3,83	3,83
Chassis height (18 t, 710/45 R22.5 tires), m	3,95	3,95
BODY DIMENSIONS
Height, m	2,35	2,35
Width, m	2,10	2,10
Length, m	5,87	5,87
Net weight with standard equipment, kg	7 600 / 8 200	8 200 / 8 700
Maximum permissible weight (standard equipment), kg	18 000	18 000
Maximum permissible weight (optional equipment), kg	22 000	22 000
Transmission node type	Rotor	Rotor
Pick-up width, m	1,80	1,80
Number of knives, pcs.	39	39
Theoretical cross section, mm	39	39
