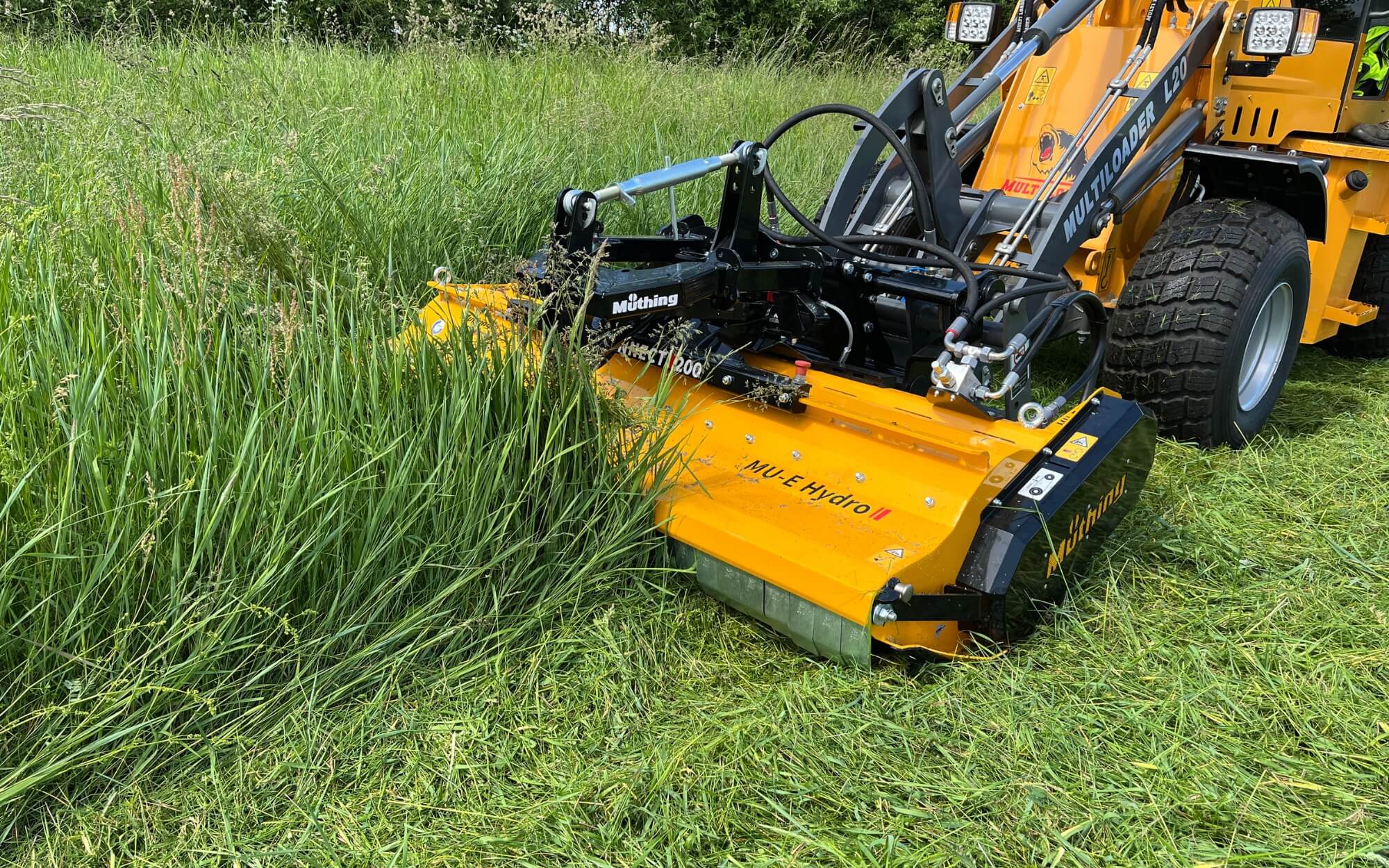

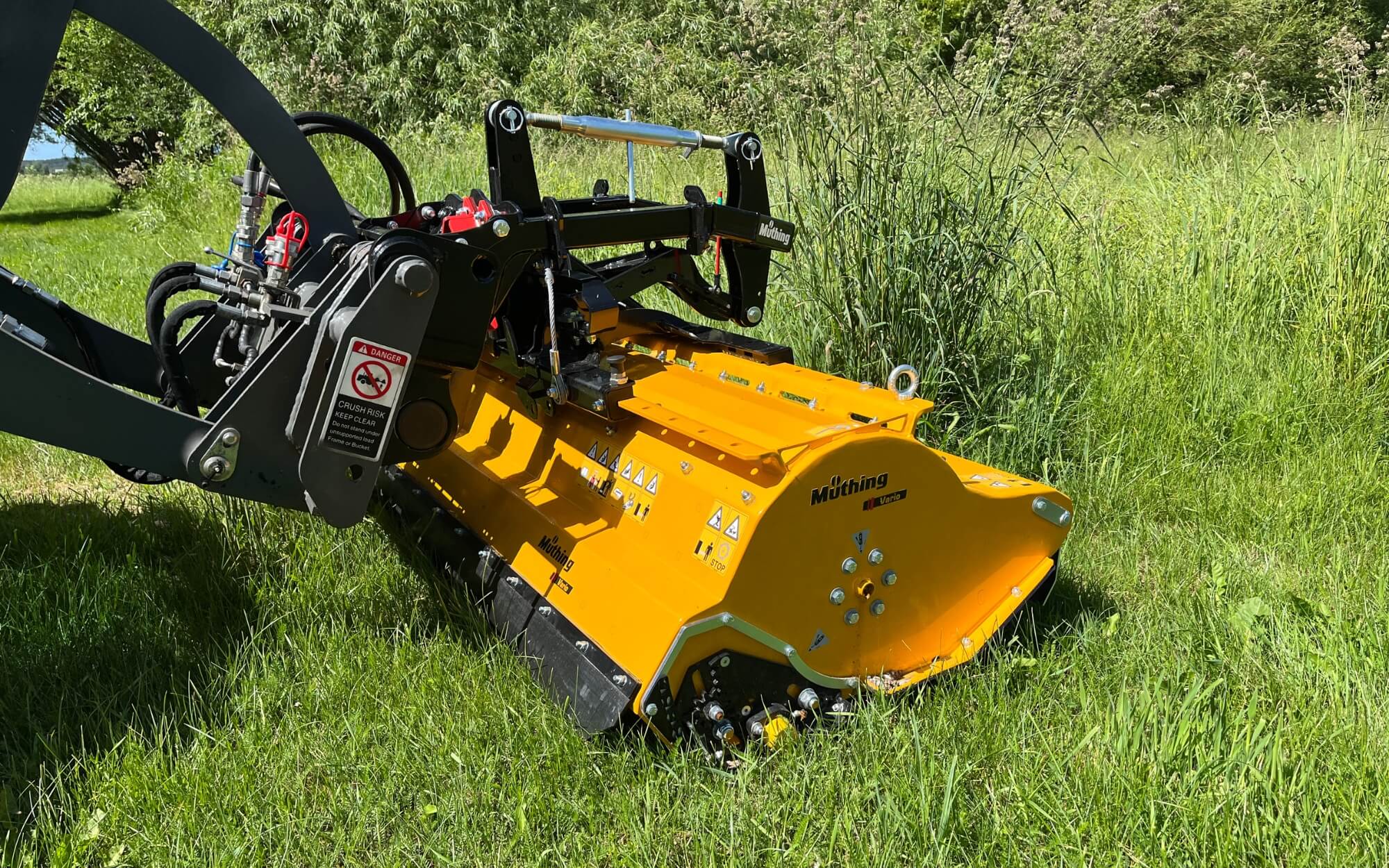

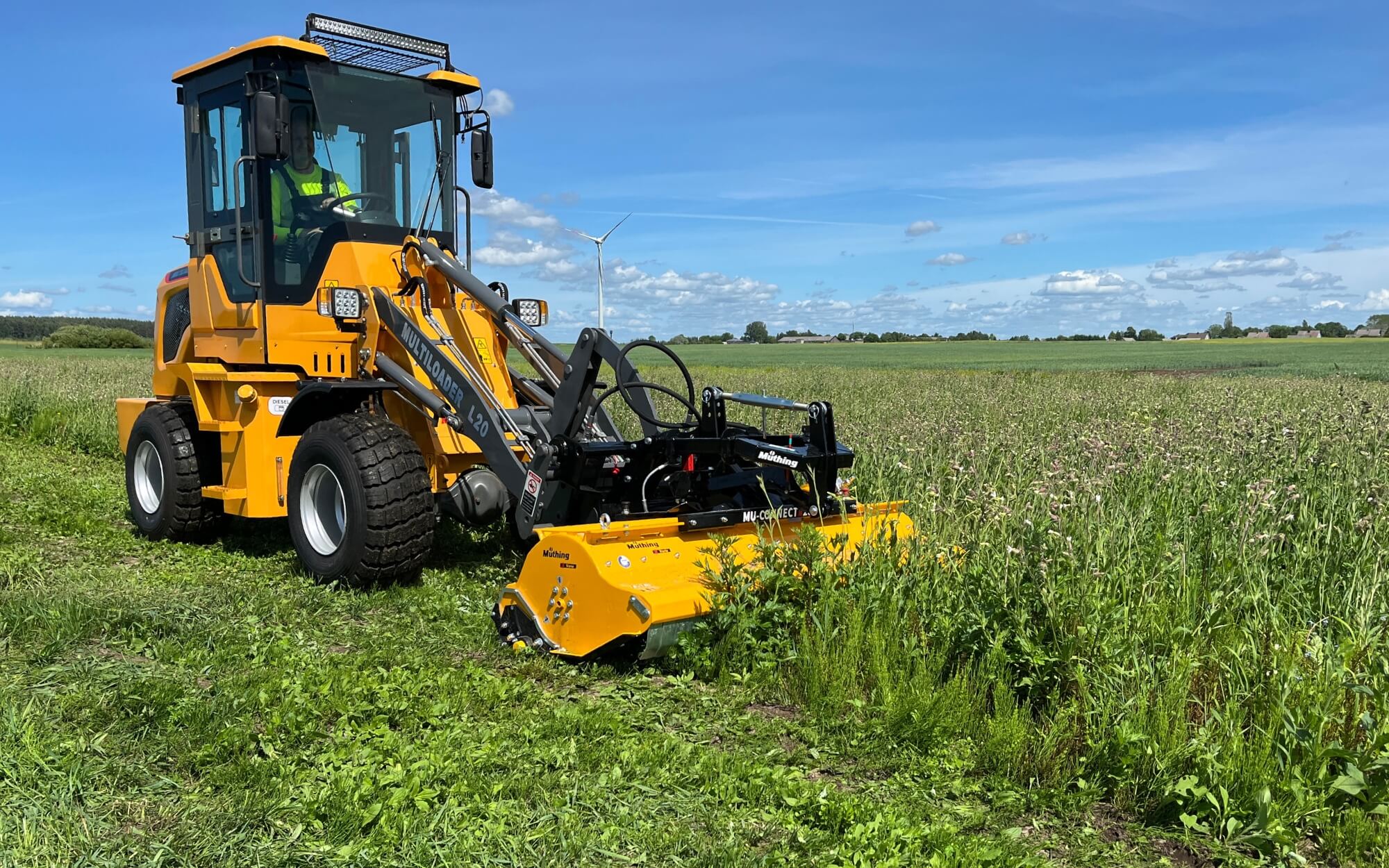

Mounted on small and medium-sized yard and wheel loaders, utility equipment carriers
Excellent ground adaptation for optimum results
One tool – many possibilities for your farm. Used on small and medium farm and wheel loaders in combination with the MU-CONNECT 200 attachment.
- Hydraulic hammer mulcher designed for flow rates of 50–90 l/min.
- Working width: 1.40 m / 1.60 m / 1.80 m / 2.00 m.
- Sturdy, large and vertically adjustable support wheels (optionally 360° rotating).
- Optional hinged chopping flap cover.
- There are various adapter plates to choose from.
- Additional options are available.
Features of MU-E Hydro Vario mulchers
MU-Vario® system
Complete control over working conditions. Optimal intake, adjustable body shape, adjustable PTO speed, infinitely adjustable bedknife and pivoting support roller allow easy adaptation to any field conditions.
TÜV Nord stone emission certificate
Müthing, in cooperation with TÜV NORD, has carried out and successfully passed tests on the ejection of objects during operation. As a result, safety distances are reduced to 2 m at the sides and 8 m at the front and rear of the unit.
Shark fin shredding bar with shark fins
The system ensures even shredding of all plant residues: longer materials are returned for additional processing, and once properly shredded, they immediately move on.
Tungsten Carbide "M" Shape Hammers
The sharp blades ensure a smooth and uniform cutting result, while the robust design of the chisel chain attachment and the optimised weight of the tool guarantee stable operation even under difficult conditions. The hammers are highly resistant to impact and foreign objects, making the mulcher ideal for intensive landscaping and maintenance work.
Versatile application for municipal machinery

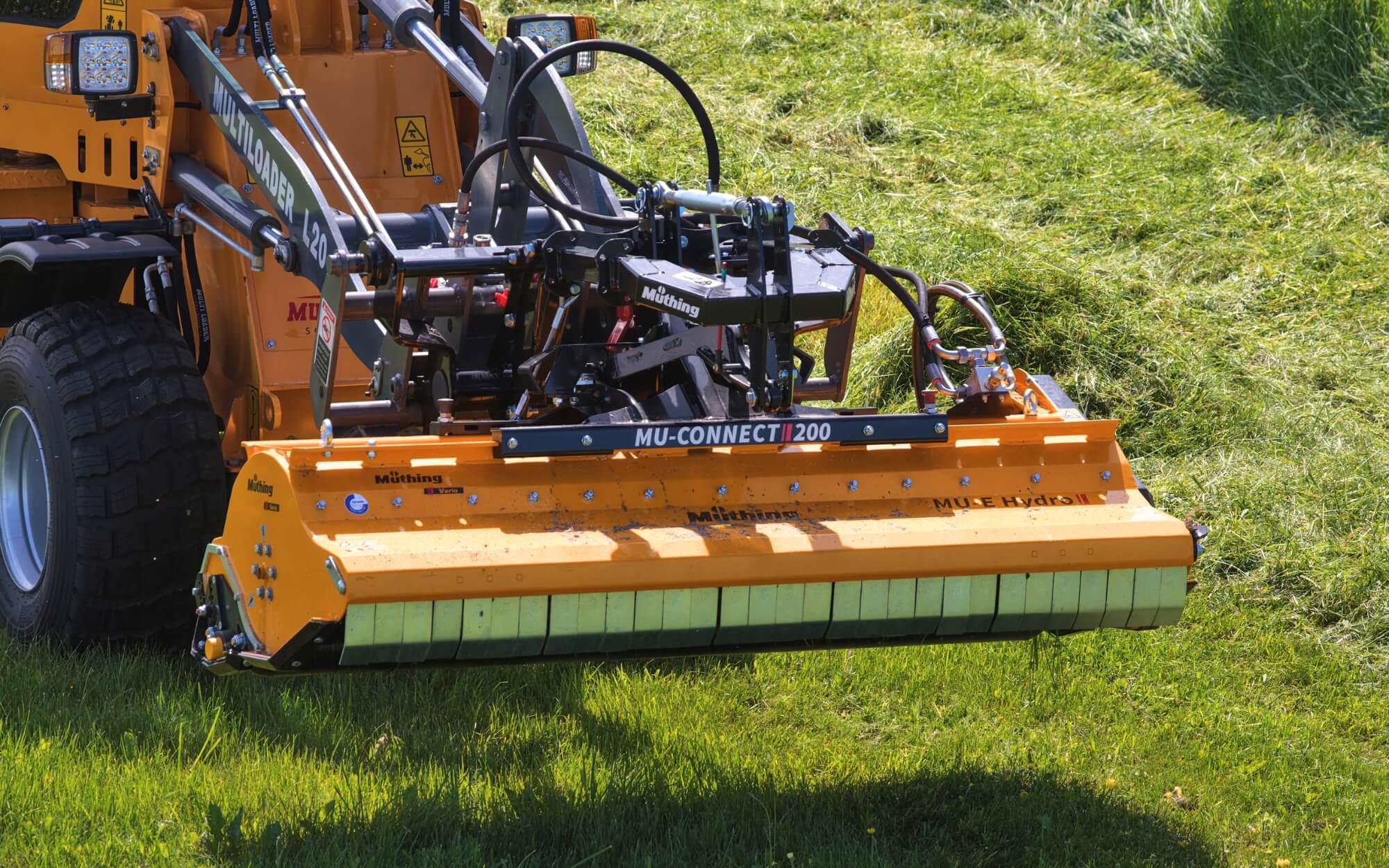

The Mulcher is easily mounted on small and medium-sized yard and wheel loaders, as well as on utility carriers up to 90 l/min. The MU-CONNECT 200 attachment makes it a versatile solution for a wide range of environmental maintenance and farm work, ensuring ease of use and efficient operation in a variety of applications.
Variable height support roller
The vertically guided roller achieves a uniform cutting pattern, clearly directional cutting strips and the best mulch distribution.
Made in Germany
Müthing is one of Europe's leading manufacturers of innovative mulching equipment, with a name that has been associated with German quality and reliability for many years. Designed and manufactured in Germany to exacting quality standards, Müthing mulchers are safe, durable and efficient in a wide range of conditions.
Lightweight but extremely robust construction
Müthing mulchers are made of high-quality fine-grained steel, which ensures exceptional strength and durability, even under intensive use. The lighter construction reduces tractor load, helps save fuel and protects the soil from compaction, thus maintaining better stability of the soil structure.
Functionalities
- Suitable for mounting on small and medium-sized yard and wheel loaders, utility equipment carriers.
- An additional hydraulic front attachment drive is available.
- The special Connect holder protects both the support roller and the lawn during maneuvering.
- Low hitch point for better visibility and safer work.
- A height indicator visible from the cab allows easy adjustment of the implement height.
Every element contributes to making Müthing mulchers a reliable choice for your agricultural work. 1. Round body made of fine-grained steel with numerous profiled corners
2. Easily removable, bolted wearing parts
3. Exceptional shredding of crop residues even in difficult conditions
4. Special hardened steel spring safety valves
5. Drive unit All Müthing mulchers are equipped with a freewheel mechanism in the gearbox or hydraulic drive = Protection for both the mulcher and the drive system - maintenance-free, ensuring long-term operation. Maintenance Security All Müthing shredders are designed and manufactured in accordance with CE directives. They are also TÜV-approved in accordance with the ISO 17101-2 standard for optimal safety. 6. Adjustable front knife
7. Weight balance – for stability Protects against damage when the working environment is full of obstacles and stones. 8. Double helix rotor Ensures high-quality cutting and shredding while consuming less power – more energy efficient. 9. Excellent surface copying and consistent cutting height The MU-M Vario and MU-PRO Vario models feature a patented pivoting support roller system, allowing for easy transition to single-operator operation. Mulch can be discharged both behind and in front of the support roller. Discharge before the support roller: Discharge behind the support roller:
10. Professional shredders with the unique Starinth® support roller bearing system (from model MU-L and above) Robust, long-lasting bearing system with multi-layer labyrinth sealing technology and a "floating" star-shaped axle integrated into the sidewall. 11. High quality DuraX M-shaped hammers with full support to the rotor
Tangential tool holders lift the rotor above obstacles, protecting it from imbalance A longer weld seam ensures a stronger connection of the brackets to the rotor and reduces the risk of them breaking.
Müthing experience – your advantage
Müthing mulchers – certified by TÜV Nord for the distance of thrown objects
The MU-E Hydro Vario mulcher also stands out with these advantages:
The low hitch point ensures good visibility due to the low linkage position. Convenient and easy access to the hydraulic connections.

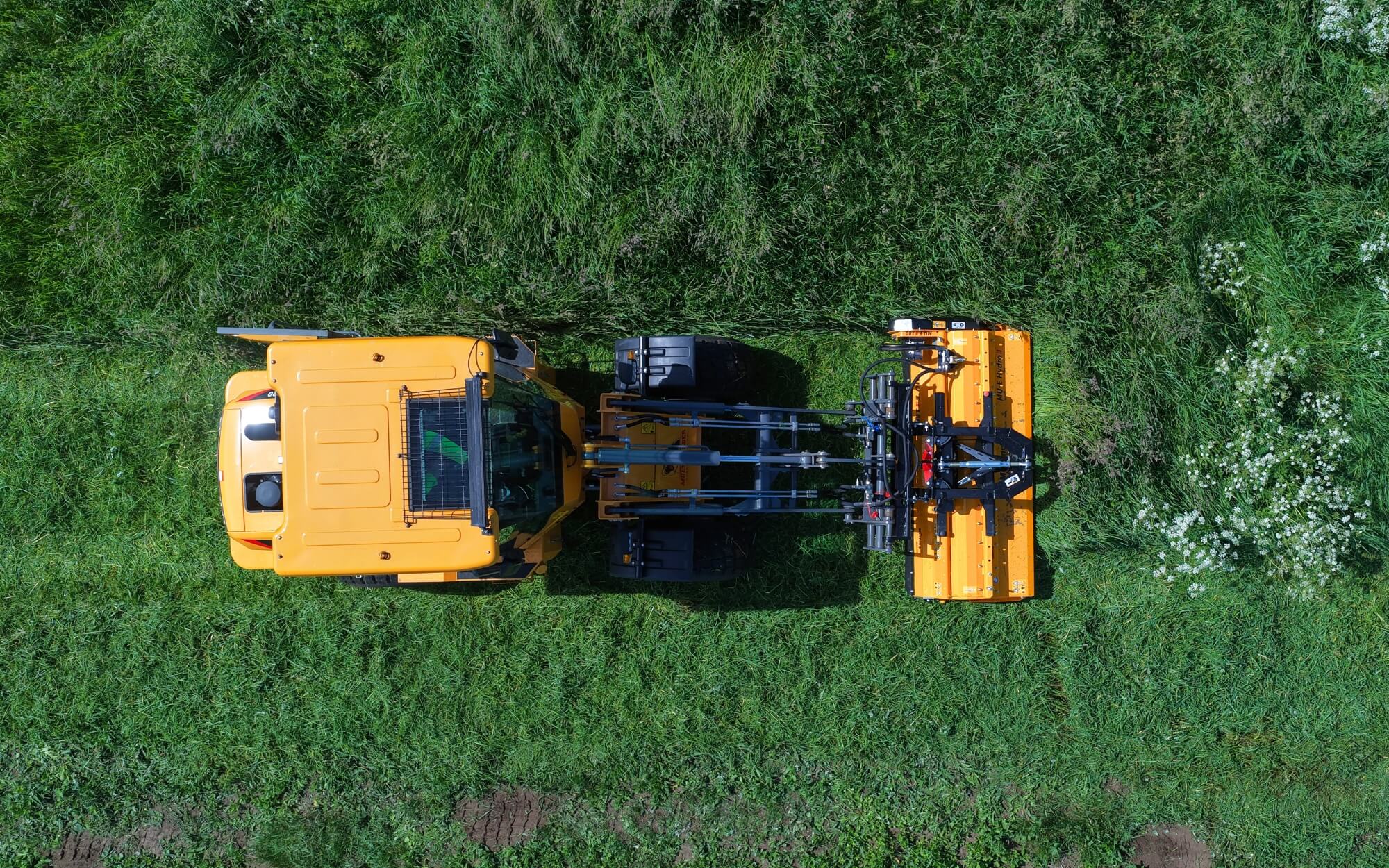

The hammer mulcher is pulled, not pushed, so it has low rolling resistance and adapts perfectly to the unevenness of every terrain. When cornering, the machine smoothly follows the trajectory of the loader. The height indicator visible from the cab allows you to conveniently set the correct working position. On uneven surfaces, ample oscillation and steering movements ensure optimal adaptation to the terrain. Mulching with side-shift to the side of the tractor gives flexibility when working around trees, driveways or other obstacles (optional equipment). Mechanical side shift is available as standard.
Vehicle-specific mounting parts
Virtual attraction point – Müthing patent
Movement trajectory
Height indicator
Optimal adaptation to the terrain
Hydraulic side shift with 26 cm adjustment stroke
Tungsten Carbide "M" Shape Hammers
resistance to foreign bodies.
The MU-Vario® system – complete control over working conditions. Optimal intake, adjustable body shape, adjustable PTO speed, infinitely adjustable skid plate and pivoting support roller allow easy adaptation to any field conditions. Individual settings adapted to various agricultural crops: crushing rapeseed, cereals, corn stubble, as well as for crop and meadow maintenance and mulching abandoned fields. The adjustable front knife allows you to easily adjust the chopping intensity to suit conditions and needs. Above: low crushing intensity
Mulch can be spread both in front of and behind the support roller (from MU-M series models). (Diagram A) Support roller turned forward:
(Diagram B) Support roller turned to the rear:
The roller wiper (optional) ensures smooth shredding even in extremely wet conditions. The adjustable counter knife – only for the MU-Pro model – can also be optionally equipped with hydraulic adjustment. This allows you to conveniently control the chopping intensity directly from the tractor cab.
MU-Vario system – for maximum working comfort and flexibility
Universal use – optimal treatment for all crops
Flexible adjustment of the grinding intensity
Below: high crushing intensity
MU-Vario system operating concept:
1. The adjustable counter knife allows for infinitely variable adjustment of the chopping intensity to suit specific requirements.
2. Shark fin system:
3. The rotating support roller turns the mulcher into a versatile piece of equipment for year-round use
4. Sturdy support roller wiper
NEW: VARIO-SHIFT – hydraulic version
Available hitch options Forklift forks EURO-3 bracket Schäffer SWH Schäffer KR WEIDEMANN coupling with hydraulic lock Kramer Category 0 towing triangle or Category 0 three-point towing triangle Liebherr Claas Multione Hydraulic side shift with 26 cm adjustment stroke Adjustable hydraulic weight transfer system "MU-SOFA®" developed for Müthing front-mounted units
When mounted directly on the tractor, the support pressure can be quickly adjusted, even when changing front-mounted implements such as mulchers, mowers and snow blowers. MU-SOFA® can be easily integrated into all conventional front hydraulic circuits (installation time approx. 4 hours).
MU-SOFA® allows mobile and permanent attachment to the relevant unit. For this purpose, an additional T-connector is connected to the tractor's hydraulic supply line.
Optional equipment
MU-SOFA® weight transfer system
Mounting MU-SOFA® on a tractor
Mounting MU-SOFA® on the implement
| MU-E Hydro Copper | 140 | 160 | 180 | 200 |
|---|---|---|---|---|
| Working width (cm) | 140 | 160 | 180 | 200 |
| External width (cm) | 159 | 179 | 198 | 219 |
| Oil quantity, l/min | 50-90 | 50-90 | 50-90 | 50-90 |
| Weight (kg) | 280 | 310 | 340 | 370 |
| Maximum permissible carrier mass (kg) | 3,500 | 3,500 | 3,500 | 3,500 |
| Number of tungsten carbide M-shaped hammers | 24 | 28 | 32 | 36 |
| Rotor diameter (mm) | 130 | 130 | 130 | 130 |
| Support roller diameter (mm) | 120 | 120 | 120 | 120 |
| Number of V-belts | 2 | 2 | 2 | 2 |
Muthing German quality and reliability Wide selection Modern and sustainable solutions
A German manufacturer with many years of experience in the production of high quality mulches for agriculture, landscaping and gardens. The company started in 1898 and introduced its first mulch in 1998. Today it is a fourth generation family business.
All Müthing implements are designed and manufactured in Germany to high quality and safety standards. Emphasis is placed on durability, practicality and resistance to intensive use. These mulchers are highly efficient in shredding crop residues and adaptable to a wide range of working conditions. Müthing, in cooperation with TÜV NORD, has carried out and successfully passed tests on the ejection of objects during operation. Therefore, with a Müthing mulcher, you ensure maximum safety for yourself and those around you.
Müthing offers more than 1,500 mulcher models: mounted, foldable, mounted and trailed, for front, rear or side work. Available working widths range from 0.80 to 8.60 m. This variety of models allows every farm to find the most suitable solution.
The manufacturer works closely with scientists and customers from different countries. Solutions such as the MU-Vario system allow you to adjust the mulching as needed. At the same time, technology is being developed that contributes to insect protection and maintaining the ecological balance in the fields. Certified safety tests ensure safe work even near roads or settlements.
