Extremely robust design, easy handling and high speed – suitable for use with 240-300 HP tractors

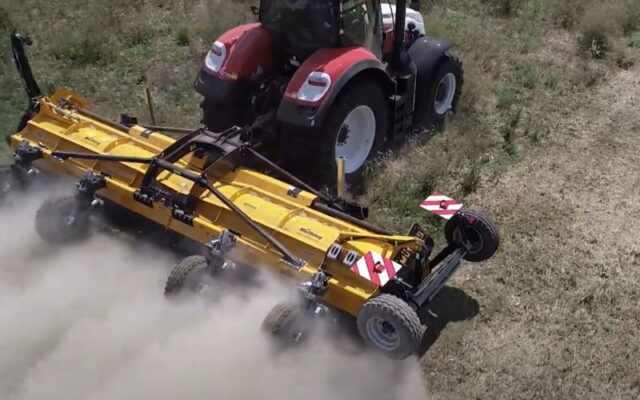

Wide, fast, robust – MU-FARMER® 670
Easily operated and of reliable construction.
- Suitable for use with 240-300 HP tractors.
- Working width: 6.70 m.
- Spiral rotor with MU-Farmer® hammers.
- Automatic belt tensioning.
- Hardox steel inserts.
- Two rows of highly hardened spring steel flaps with protection against excessive oscillation.
Features of MU-Farmer® 670 mulchers
Stone throwing certificate issued by TÜV Nord
Müthing, in cooperation with TÜV NORD, has successfully tested all mulchers with a working width of up to 3.2 m for objects thrown during operation. As a result, safety distances are reduced to 2 m on the sides and 8 m in front and behind the machine.
Automatic belt tensioning system
The system maintains constant V-belt tension regardless of temperature or wear. Once adjusted, the system itself ensures constant tension.
Double Shark fin shredding belt with shark fins
The system ensures even shredding of all plant residues: longer materials are returned for additional processing, and once properly shredded, they immediately move on.

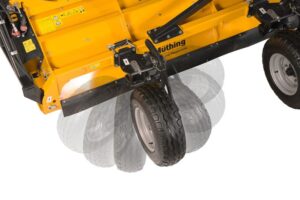

Vertically adjustable support wheels
The ability to conveniently adjust the mulcher to different working height requirements allows for efficient handling of both finely chopped plant residues and dense, green turf.
Functionalities
- Large diameter rotor with exceptional cutting speed.
- High-capacity trailing support wheels – maximum soil protection and reliable operation.
- Durable MU-Farmer® hammers – durability you can trust.
- Double Shark fin shredding belt with "shark fins" - optimal material flow and shredding results.
- Easy-to-operate longitudinal transport system – for fast travel between fields.

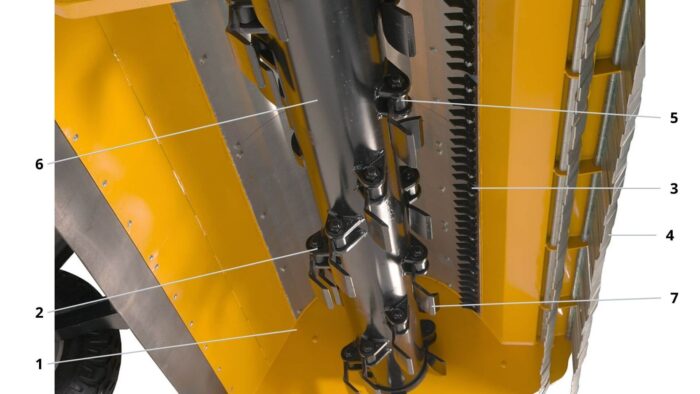

Every element contributes to making Müthing mulchers a reliable choice for your agricultural work. 1. Round body made of fine-grained steel with numerous profiled corners
2. Easily removable, bolted wearing parts
3. Exceptional shredding of crop residues even in difficult conditions
4. Special hardened steel spring safety valves arranged in two rows
5. Weight balance – for stability Protects against damage when the working environment is full of obstacles and stones. 6. Double helix rotor Ensures high-quality cutting and shredding while consuming less power – more energy efficient. 7. High-quality MU-Farmer® hammers
Tangential tool holders lift the rotor above obstacles, protecting it from imbalance A longer weld seam ensures a stronger connection of the brackets to the rotor and reduces the risk of them breaking. Drive unit All Müthing mulchers are equipped with a freewheel mechanism in the gearbox or hydraulic drive = Protection for both the mulcher and the drive system - maintenance-free, ensuring long-term operation. Maintenance Security All Müthing shredders are designed and manufactured in accordance with CE directives. They are also TÜV-approved in accordance with the ISO 17101-2 standard for optimal safety.
Müthing experience – your advantage
Müthing mulchers – certified by TÜV Nord for the distance of thrown objects
The MU-Farmer® 670 mulcher also stands out with these advantages:
Ensures maximum protection during work.
The robust and spaciously designed rotor provides extra power in difficult conditions.
Designed for reliable and low-maintenance operation. Suitable for up to 300 HP, combined with a robust frame, it ensures long-term use even in difficult working conditions. Uncouple the transport frame, shift to working position and connect the MU-Farmer® 670 to the tractor via the quick coupler and PTO shaft. Allows you to adjust the height of the MU-Farmer® implement for rear mounting. The 180° turning angle ensures excellent maneuverability on the edges of the field.
Two rows of hardened spring steel flaps
Robust rotor
MU-Farmer® hammers
Automatic belt tensioning system
Dual drive system
Ready to use in minutes
Four low-impact support wheels
| MU-FARMER 670 | 670 |
|---|---|
| Working width (cm) | 670 |
| External width (cm) | 712 |
| PTO (power take-off shaft) speed | 1 000 |
| Maximum tractor power (HP) at 1,000 rpm | 300 |
| Weight (kg) | 4 460 |
| Number of MU-Farmer® hammers | 44 |
| Rotor diameter (mm) | 270 |
| Number of V-belts | 2x5 |
Muthing German quality and reliability Wide selection Modern and sustainable solutions
This is a German manufacturer with over 120 years of experience in producing high-quality mulchers for agriculture, landscaping and gardens. The company began operations in 1898 and introduced its first mulchers in 1998. Today, it is a fourth-generation family business.
All Müthing implements are developed and manufactured in Germany, in accordance with high quality and safety standards. Much attention is paid to durability, practicality and resistance to intensive work. These mulchers are extremely efficient in shredding plant residues and adapt to various working conditions. Müthing, in cooperation with TÜV NORD, has carried out and successfully passed tests for the ejection of objects during work on all mulchers with a working width of up to 3.2 m. Therefore, when using a Müthing mulcher, you ensure maximum safety for yourself and those around you.
Müthing offers more than 1,500 mulcher models: mounted, foldable, mounted and trailed, for front, rear or side work. Available working widths range from 0.80 to 8.60 m. This variety of models allows every farm to find the most suitable solution.
The manufacturer works closely with scientists and customers from different countries. Solutions such as the MU-Vario system allow you to adjust the mulching as needed. At the same time, technology is being developed that contributes to insect protection and maintaining the ecological balance in the fields. Certified safety tests ensure safe work even near roads or settlements.
