MU-Vario-Shark 2.0 – a powerful mulcher for all agricultural work

Sturdy front/rear suspension strut with hydraulic lateral adjustment (56 cm adjustment range)

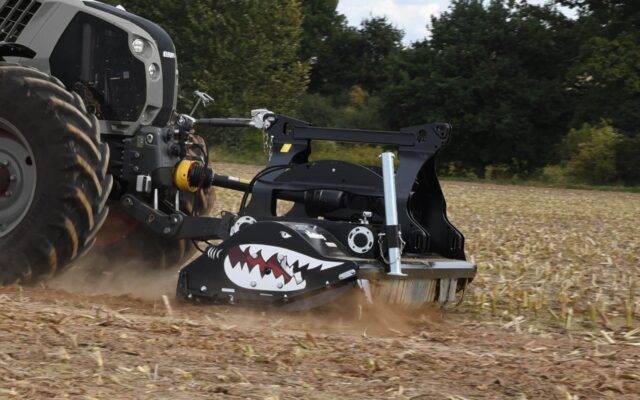

Excellent working results even with high organic matter content

Mulchers MU-Vario-Shark 2.0

Powerful and versatile mulchers for all agricultural tasks – suitable for use with 95–200 HP tractors

For a purchase offer, please fill in the enquiry form or contact the following contacts:

Powerful mulcher for all agricultural work

Excellent working results even with high organic matter content.

Suitable for use with 95-200 HP tractors.
Working width: 2.80 m / 3.00 m.
Spiral rotor with DuraX M-shaped hammers.
Automatic V-belt tensioning.
Additional options are available.

Features of the MU-Vario-Shark 2.0 mulchers

MU-Vario® system

Complete control over working conditions. Optimal intake, adjustable body shape, adjustable PTO speed, infinitely adjustable bedknife and pivoting support roller allow easy adaptation to any field conditions.

TÜV Nord stone emission certificate

Müthing, in cooperation with TÜV NORD, has carried out and successfully passed tests on the ejection of objects during operation. As a result, safety distances are reduced to 2 m at the sides and 8 m at the front and rear of the unit.

DuraX „M“ hammers

The DuraX M-shaped hammers of the Müthing mulchers are durable, high performance and ideal for both grass cutting and brush chipping. Thanks to the boron alloy and hardening technology, they last up to 50 % longer, maintain high chopping quality and help save fuel.

Starinth® Support Roller Bearing

Heavy-duty Müthing support roller bearing system. The bearing is permanently lubricated, protected by a labyrinth seal and mounted in a star-shaped contour that prevents the bearing from distorting. The star-shaped design reduces impacts on the bearing, thus optimizing the bearing life.

Front-rear mounting bracket

The front-rear mounting bracket allows the mulcher to be easily mounted either at the front or rear, depending on your needs. No additional adjustments required – simple and convenient for all types of tractors.

Shark fin shredding bar with shark fins

Shark fin shredding belts with shark finsShark fin shredding belts with shark fins

The system ensures even shredding of all plant residues: longer materials are returned for additional processing, and once properly shredded, they immediately move on.

Made in Germany

Müthing is one of Europe's leading manufacturers of innovative mulching equipment, with a name that has been associated with German quality and reliability for many years. Designed and manufactured in Germany to exacting quality standards, Müthing mulchers are safe, durable and efficient in a wide range of conditions.

Vertically adjustable support roller

The ability to conveniently adjust the mulcher to different working height requirements allows for efficient handling of both finely chopped plant residues and dense, green turf.

Functionalities

Side push and double fastening – more flexibility in every situation.
As standard, you can choose where the shredded material will be spread – in front of or behind the roller.
Standard mounting is possible at both the front and rear.
The Vario system is standard.
The spiral arrangement of the tool holders ensures smooth rotor operation.
DuraX M-shaped hammers are robust and ensure high mulching quality.
Shark fin shredding belt with shark fins – optimal material flow and excellent shredding results.
Support roller with reliable Starinth® bearing – precise working height adjustment.

Müthing experience – your advantage

Every element contributes to making Müthing mulchers a reliable choice for your agricultural work.

1. Round body made of fine-grained steel with numerous profiled corners

Smooth running means lower fuel consumption.
Each profiled corner ensures structural stability - a guarantee of durability.
Large gap between the mulcher body and the support roller – no blockages even when working with large amounts of mulch.

2. Easily removable, bolted wearing parts

Helps maintain the high quality of Müthing mulching and shredding.
Ensures a long service life of the mulcher.

3. Exceptional shredding of crop residues even in difficult conditions

Unique, patented Shark fin shredding belt system with easily removable screw-on segments.
Top quality mulch – regardless of weather conditions.
Clog-free operation = smooth running = lower fuel consumption.

4. Special hardened steel spring safety valves

Virtually unbreakable for maximum safety.
Compact design and small openings provide more effective protection against objects thrown forward.

5. Drive unit

All Müthing mulchers are equipped with a freewheel mechanism in the gearbox or hydraulic drive = Protection for both the mulcher and the drive system - maintenance-free, ensuring long-term operation.

Maintenance

Only a few lubrication points – easily accessible.
Favorable prices for original spare parts.

Security

All Müthing shredders are designed and manufactured in accordance with CE directives. They are also TÜV-approved in accordance with the ISO 17101-2 standard for optimal safety.

6. Adjustable front knife

Continuous, stepless adjustment of the grinding intensity.
Ensures an even and high-quality mulching result.
Allows you to work at higher speeds and process a larger area – while maintaining consistent quality.

7. Weight balance – for stability

Protects against damage when the working environment is full of obstacles and stones.

8. Double helix rotor

Ensures high-quality cutting and shredding while consuming less power – more energy efficient.

9. Excellent surface copying and consistent cutting height

The MU-M Vario and MU-PRO Vario models feature a patented pivoting support roller system, allowing for easy transition to single-operator operation.

Mulch can be discharged both behind and in front of the support roller.

Discharge before the support roller:

Improves the germination of self-seeded grains due to soil compaction.
Reduces dust when working with front mounting.
Reduces tool wear.
Fewer large particles remain in the mulch.

Discharge behind the support roller:

Roller position close to the rotor = precise working depth control.
Even mulch distribution = faster and more uniform decomposition.
Self-cleaning roller = constant precise working depth.

10. Professional shredders with the unique Starinth® support roller bearing system (from model MU-L and above)

Robust, long-lasting bearing system with multi-layer labyrinth sealing technology and a "floating" star-shaped axle integrated into the sidewall.

11. High quality DuraX M-shaped hammers with full support to the rotor

Wear-resistant DuraX M hammers with self-sharpening effect.
When hitting an obstacle, the hammers fold back, thus protecting both the rotor and the entire mulcher.
The full hammer support surface on the rotor reduces the risk of hammer breakage and rotor imbalance.
High-quality materials – for maximum safety and durability of the device.

Tangential tool holders lift the rotor above obstacles, protecting it from imbalance

A longer weld seam ensures a stronger connection of the brackets to the rotor and reduces the risk of them breaking.

Starinth® Support Roller Bearing

A premium, ultra-durable, heavy-duty rear roller bearing system with multi-layer sealing technology and a high-capacity double tapered roller bearing that meets even the most demanding requirements.

External anti-twist protection between the roller and the side shield of the chopper. Prevents the ingress of coarse dirt.
Lubricated mechanical labyrinth for protection against dirt, sludge, plant debris and moisture.
A multi-layer labyrinth of small spring steel rings is lubricated, protecting against fine dust and moisture residues.
Sealed heavy-duty double tapered roller bearing.

Pre-mounted bearing system in a sturdy cast metal housing designed to bolt with a free-running star shaft to the side wall. This provides better resistance to shocks and side loads when working in harsh conditions on hard and uneven surfaces, during intensive work or mowing at high speeds.

Robust – Durable – Long-lasting – Easy-to-maintain system

Müthing mulchers – certified by TÜV Nord for the distance of thrown objects

European agricultural machinery manufacturers are required to manufacture their equipment in compliance with the CE Machinery Directives.
The CE marking represents a self-declaration that the equipment complies with all applicable CE directives.
One of these CE directives: "Test and acceptance criteria for ejected objects for mulchers according to ISO/WD 17101-2".
The independent and accredited body TÜV Nord assessed and awarded this certificate to Müthing products.
Maximum safety and worry-free work - by maintaining safety distances: 8 meters in front and behind, 2 meters on the right and left sides.

The MU-Vario-Shark 2.0 mulcher also stands out with these advantages:

Safe working environment with Müthing: special hardened steel spring valves protects you, your employees and your equipment. They effectively contain foreign objects and reduce potential damage.

Stone throwing certificate from the Technical Inspection Association (TÜV Nord). Tests have been carried out to ensure that your safety and that of others in the mulcher's working area are guaranteed. The safety distances have been reduced to 2 m on the sides of the machine and to 8 m in front and behind.

Müthing mulchers are made of high-quality fine-grained steel – a guarantee of strength and durability. The lighter design reduces the load on the tractor and protects the soil from compaction.

Shark fin shredding tape with shark fin design – self-cleaning and easy to replace. The system ensures uniform shredding of all crop residues: longer materials are returned for additional processing, and those that are already properly shredded are immediately transported further. The result is a uniform quality result across the entire field.

Hydraulic side shift – convenient work around obstacles, trees and ditch edges. The tractor remains on safe ground, while the mulcher works nearby – where it needs to be reached.

Freewheeling in the gearbox or hydraulic motor protects the PTO system from damage during sudden braking

Free play in the gearbox or hydraulic motor Protects the PTO system from damage during sudden braking. This eliminates the possibility of incorrect operation of the drive system.

Front-rear mounting bracket – a flexible choice that allows you to mount the mulcher where it is most convenient: at the front or at the back. No complicated additional adjustments – everything is according to your working needs and tractor type.

Automatic belt tensioning system maintains constant V-belt tension, regardless of temperature or belt wear level. Once adjusted, the tension automatically remains at the set level.

Starinth® Support Roller Bearing is a heavy-duty Müthing support roller bearing system. The bearing is permanently lubricated, protected by a labyrinth seal and mounted in a star-shaped contour that prevents the bearing from distorting. The star-shaped design reduces impacts on the bearing, thus optimizing the bearing life.

Adjustable support roller allows the mulcher to be used all year round. When maintaining pastures or field edges, the front roller evenly spreads the chopped material - this promotes fast and natural decomposition. The position of the support roller at the rear promotes fast spontaneous seed germination, especially in rapeseed crops.

Vertically adjustable support roller/support wheels allows you to easily adjust the mulcher to different working height settings. Both minimally chopped plant residues and lush green turf can be easily achieved.

Double helix rotor – lower costs and longer service life. Smooth operation reduces fuel consumption and protects the drive system, extending the service life of the gearbox and PTO shafts. Internal bearings and wide covers not only protect against foreign objects, but also prevent crop mass from wrapping around the rotor.

Tangential tool holders – better impact protection and longer service life. They allow the rotor to smoothly overcome obstacles, and the longer weld seam ensures a stronger connection of the brackets and reduces the risk of them breaking.

Müthing mulchers use DuraX M-Shaped Hammers high wear resistance and high productivity. Whether you need to cut grass cleanly or shred brush, the high-quality DuraX M-shaped hammers offer a wide range of applications.

M-shaped suspension hammer rotor used where frequent contact with foreign objects is likely. The suspension system allows the hammers to avoid direct impacts on foreign objects, so the equipment is protected and the work proceeds without interruption.

Triple Y-type knives – lower power consumption and less dust.* These blades are easily interchangeable with M hammers and allow for cleaner and more economical work, reducing air and dust movement.

MU-Vario® system – full control over working conditions. Optimal intake, adjustable body shape, adjustable PTO speed, infinitely adjustable bedknife and pivoting support roller allow easy adaptation to any field conditions.

Easy adjustment

The swivel support roller is easily adjustable even without additional assistance.

Automatic belt tensioning system

The system is designed to ensure smooth operation with minimal maintenance.

Starinth® bearing system

The Starinth® support roller bearing is a reliable and robust system with a labyrinth seal and star-shaped design that reduces shocks and ensures long-lasting, smooth operation even in difficult conditions.

Hydraulic sideshift system

The system uses adjustable pipes with plastic fasteners, ensuring long-lasting operation with minimal wear.

Sturdy suspension frame

Sturdy front/rear suspension strut with hydraulic lateral adjustment (56 cm adjustment range).

DuraX M-Shaped Hammers

Safe to use due to the double holder design - no risk of breakage.
Precise adjustment of the knife weights prevents rotor imbalance, especially when changing tools.
Optimal ergonomic features ensure perfect mulching results, and steel treated with boron alloy and hardening technologies is used.
Easy to turn due to special shape – reduces fuel consumption.
Long-lasting sharp cutting edge.
Long service life due to special steel alloy composition.

MU-Vario system – for maximum working comfort and flexibility

The MU-Vario® system – complete control over working conditions. Optimal intake, adjustable body shape, adjustable PTO speed, infinitely adjustable skid plate and pivoting support roller allow easy adaptation to any field conditions.

Universal use – optimal treatment for all crops

Individual settings adapted to various agricultural crops: crushing rapeseed, cereals, corn stubble, as well as for crop and meadow maintenance and mulching abandoned fields.

Flexible adjustment of the grinding intensity

The adjustable front knife allows you to easily adjust the chopping intensity to suit conditions and needs.

Above: low crushing intensity
Below: high crushing intensity

MU-Vario system operating concept:

1. The adjustable counter knife allows for infinitely variable adjustment of the chopping intensity to suit specific requirements.

Optimal chopping results even in wet conditions, on crawfish, with small amounts of plant material or with difficult-to-chop plant material.
Thanks to the strong suction effect, even compressed plant residues can be reached.
The chopping process can be individually optimized for each crop – both corn stubble and crops.
Thanks to the infinitely adjustable chopping intensity, higher driving speeds and higher work productivity can be achieved while maintaining constant quality.

2. Shark fin system:

Even crushing of all particles and homogeneous mulch.
Long plant residues are additionally fed into the rotor a second time, while already shredded materials pass through immediately.
Self-cleaning and replaceable design.

3. The rotating support roller turns the mulcher into a versatile piece of equipment for year-round use

Mulch can be spread both in front of and behind the support roller (from MU-M series models).

(Diagram A) Support roller turned forward:

Loose mulch spreading behind the support roller.
Ideal for pastures, field edges and crop maintenance.
Rapid decomposition of mulch.
Precise adjustment of working depth.

(Diagram B) Support roller turned to the rear:

Mulch spreading in front of the support roller.
Mulch compaction with a support roller.
Optimal seed-soil contact ensures rapid germination of self-seeds.
Front mounting reduces dust dispersion.

4. Sturdy support roller wiper

The roller wiper (optional) ensures smooth shredding even in extremely wet conditions.

NEW: VARIO-SHIFT – hydraulic version

The adjustable counter knife – only for the MU-Pro model – can also be optionally equipped with hydraulic adjustment. This allows you to conveniently control the chopping intensity directly from the tractor cab.

Optional equipment

Dust protection

The scraper keeps the support roller clean and reduces dust generation.

"M" shaped hanging hammers

Used where frequent contact with foreign bodies is likely.
The chain attachment gives the hammers the necessary freedom to avoid hitting obstacles.
Protects against damage and allows you to work without interruption.
Hidden rocks or edges of field rocks pose no danger to hammerheads.

Triple "Y" type knives

Requires less power.
Easily replaces DuraX M-shaped hammers.
Reduced dust levels due to reduced airflow turbulence.
Available from the spare parts warehouse.

MU-SOFA® weight transfer system

Adjustable hydraulic weight transfer system "MU-SOFA®" developed for Müthing front-mounted units

Improves tractor control when working with front-mounted implements
Ensures greater driver comfort during work and transport
Improves the adaptation of the implement to the terrain and increases the efficiency of the working equipment
Allows for easy control of a constant distance from the ground, protecting against damage from contact with uneven surfaces
Allows easy adjustment of load reduction to suit different weights and working conditions
Reduces bouncing during work and transport
Helps avoid the need for expensive additional accessories such as front-mounted wheels or shock-absorbing springs

Mounting MU-SOFA® on a tractor

When mounted directly on the tractor, the support pressure can be quickly adjusted, even when changing front-mounted implements such as mulchers, mowers and snow blowers. MU-SOFA® can be easily integrated into all conventional front hydraulic circuits (installation time approx. 4 hours).

Mounting MU-SOFA® on the implement

MU-SOFA® allows mobile and permanent attachment to the relevant unit. For this purpose, an additional T-connector is connected to the tractor's hydraulic supply line.

MU-Vario-Shark 2.0	280	300
Working width (cm)	280	300
External width (cm)	300	320
PTO (power take-off shaft) speed	1000	1000
Maximum tractor power (HP)	200	200
Weight (kg)	1 112	1 193
Number of M-DuraX hammers	24	26
Rotor diameter (mm)	170	190
Support roller diameter (mm)	195	195
Number of V-belts	4	4

Muthing
A German manufacturer with many years of experience in the production of high quality mulches for agriculture, landscaping and gardens. The company started in 1898 and introduced its first mulch in 1998. Today it is a fourth generation family business.

German quality and reliability
All Müthing implements are designed and manufactured in Germany to high quality and safety standards. Emphasis is placed on durability, practicality and resistance to intensive use. These mulchers are highly efficient in shredding crop residues and adaptable to a wide range of working conditions. Müthing, in cooperation with TÜV NORD, has carried out and successfully passed tests on the ejection of objects during operation. Therefore, with a Müthing mulcher, you ensure maximum safety for yourself and those around you.

Wide selection
Müthing offers more than 1,500 mulcher models: mounted, foldable, mounted and trailed, for front, rear or side work. Available working widths range from 0.80 to 8.60 m. This variety of models allows every farm to find the most suitable solution.

Modern and sustainable solutions
The manufacturer works closely with scientists and customers from different countries. Solutions such as the MU-Vario system allow you to adjust the mulching as needed. At the same time, technology is being developed that contributes to insect protection and maintaining the ecological balance in the fields. Certified safety tests ensure safe work even near roads or settlements.
